Xerox WorkCentre 5230

February, 2008
5-48
WorkCentre 5225, 5230
PL 12.6
Launch Version
Parts List

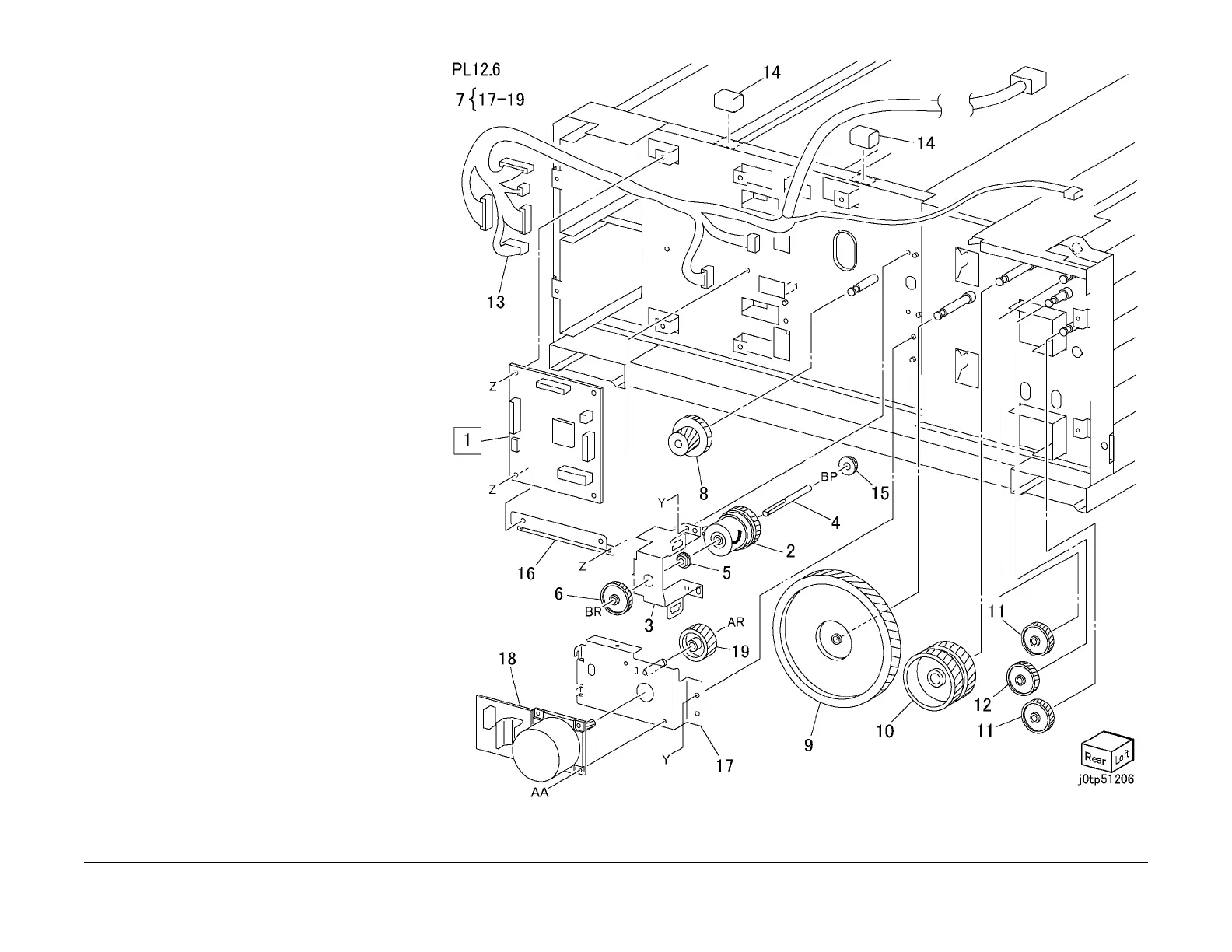

PL 12.6 Electrical-2Tray
Item Part Description
1 960K16185 2 Tray Module PWB (REP 12.4)
2 121K31530 2 Tray Module Takeaway Roll
Clutch
3 – Bracket (Not Spared)
4 – Shaft (Not Spared)
5 – Bearing (Not Spared)
6 – Gear (38T) (Not Spared)
7 007K93801 2 Tray Module Takeaway Motor
Assembly
8 – Gear (22T/40T) (Not Spared)
9 – Gear (126T) (Not Spared)
10 – Gear (37T) (Not Spared)
11 – Gear (37T) (Not Spared)
12 – Gear (32T) (Not Spared)
13 962K18900 Wire Harness
14 – Gasket (Not Spared)
15 604K20720 Bearing
16 – Bracket (Not Spared)
17 – Bracket (P/O PL 12.6 Item 7)
18 – 2Tray Takeaway Module Motor
(P/O PL 12.6 Item 7)
19 – Gear (50T) (P/O PL 12.6 Item 7)
