Xerox WorkCentre 5230 User Manual

February, 2008
5-105
WorkCentre 5225, 5230
PL 23.18
Parts List
Launch Version

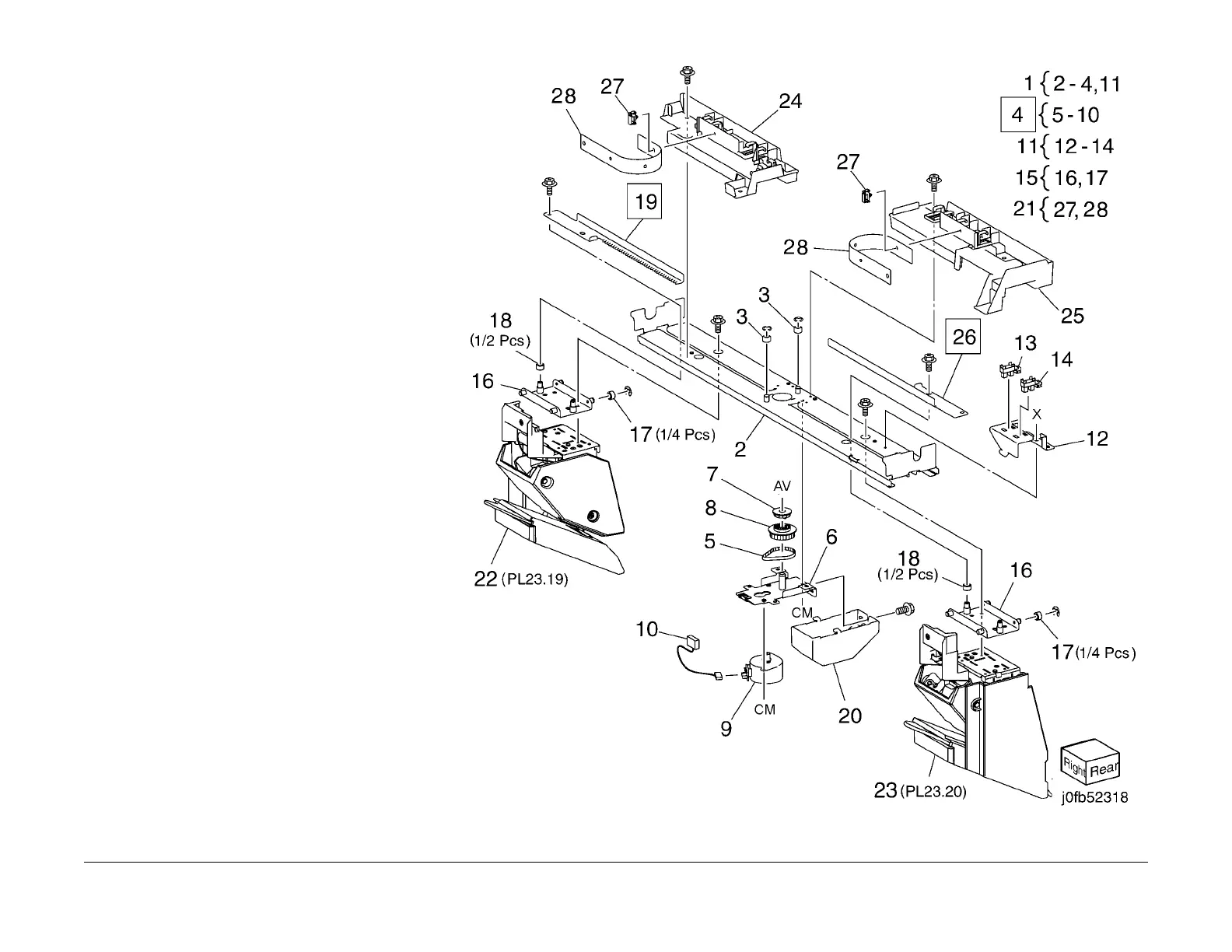

PL 23.18 Booklet Stapler Assembly
Item Part Description
1 – Front Carriage Rail (Not Spared)
2 – Frame (P/O PL 23.18 Item 1)
3 – Core (P/O PL 23.18 Item 1)
4 127K57050 Booklet Stapler Move Motor
Assembly (REP 16.3.9)
5 – Belt (P/O PL 23.18 Item 4)
6 – Bracket (P/O PL 23.18 Item 4)
7 – Gear (Z12) (P/O PL 23.18 Item 4)
8 – Pulley (T50) (P/O PL 23.18 Item 4)
9 – Booklet Stapler Move Motor (P/O
PL 23.18 Item 4)
10 – Wire Harness (P/O PL 23.18 Item
4)
11 – Sensor Bracket Assembly (P/O PL
23.18 Item 1)
12 – Sensor Bracket (P/O PL 23.18 Item
11)
13 930W00111 Booklet Stapler Move Home
Sensor, Booklet Stapler Move
Position Sensor
14 – Rear Rack Gear (Not Spared)
15 – Carriage Assembly (Not Spared)
16 – Carriage (P/O PL 23.18 Item 15)
17 – Core (P/O PL 23.18 Item 15)
18 – Core (Not Spared)
19 – Front Rack Gear (Not Spared)
20 848E15400 Motor Cover
21 032K05221 Harness Guide Assembly
22 – Booklet Front Stapler Assembly
(REF: PL 23.19)
23 – Booklet Rear Stapler Assembly
(REF: PL 23.20)
24 – Harness Guide (Front) (Not
Spared)
25 – Harness Guide (Rear) (Not Spared)
26 – Rear Rack Guide (Not Spared)
27 920W01210 Locking Clamp
28 – Harness Strap (P/O PL 23.18 Item
21)
