7. Remove the Compile Exit Sensor. (Figure 4)
(1)Release Clamps (2) and remove the wire.
(2)Disconnect Connector.
(3)Remove Compile Exit Sensor.

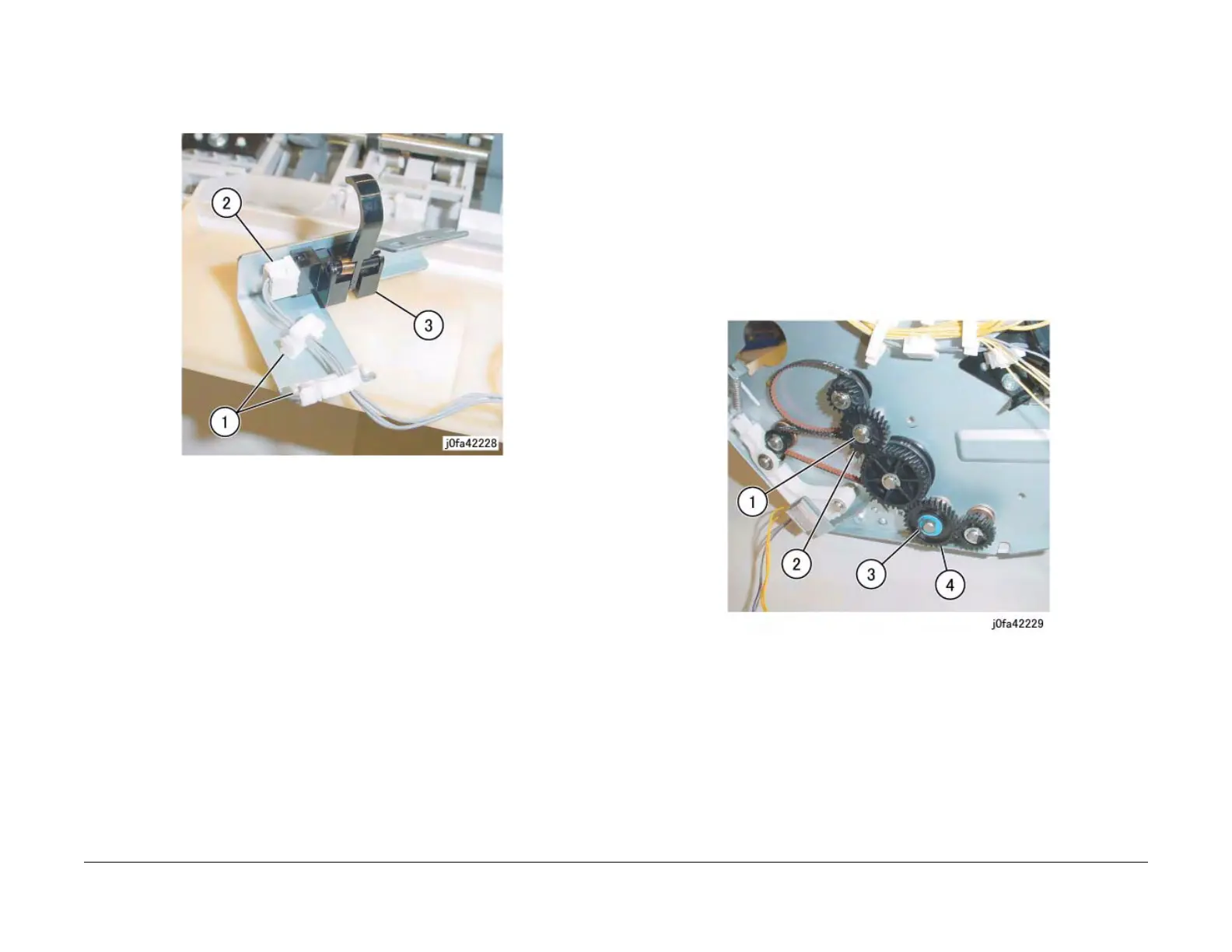

Figure 4 Removing the Compile Exit Sensor (j0fa42228)
Replacement
1. Reverse the removal procedure for replacement.
REP 22.5.4 Main Paddle Shaft Assembly
Parts List on PL 22.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Compile Assembly. (REP 22.9.1)
3. Remove the Gears. (Figure 1)
(1)Remove E-Clip.
(2)Remove Gear.
(3)Remove KL-Clip.
(4)Remove Gear.
Figure 1 Removing the Gears (j0fa42292)
