February, 2008
4-153
WorkCentre 5225, 5230
REP 16.2.13
Repairs and Adjustments
Launch Version

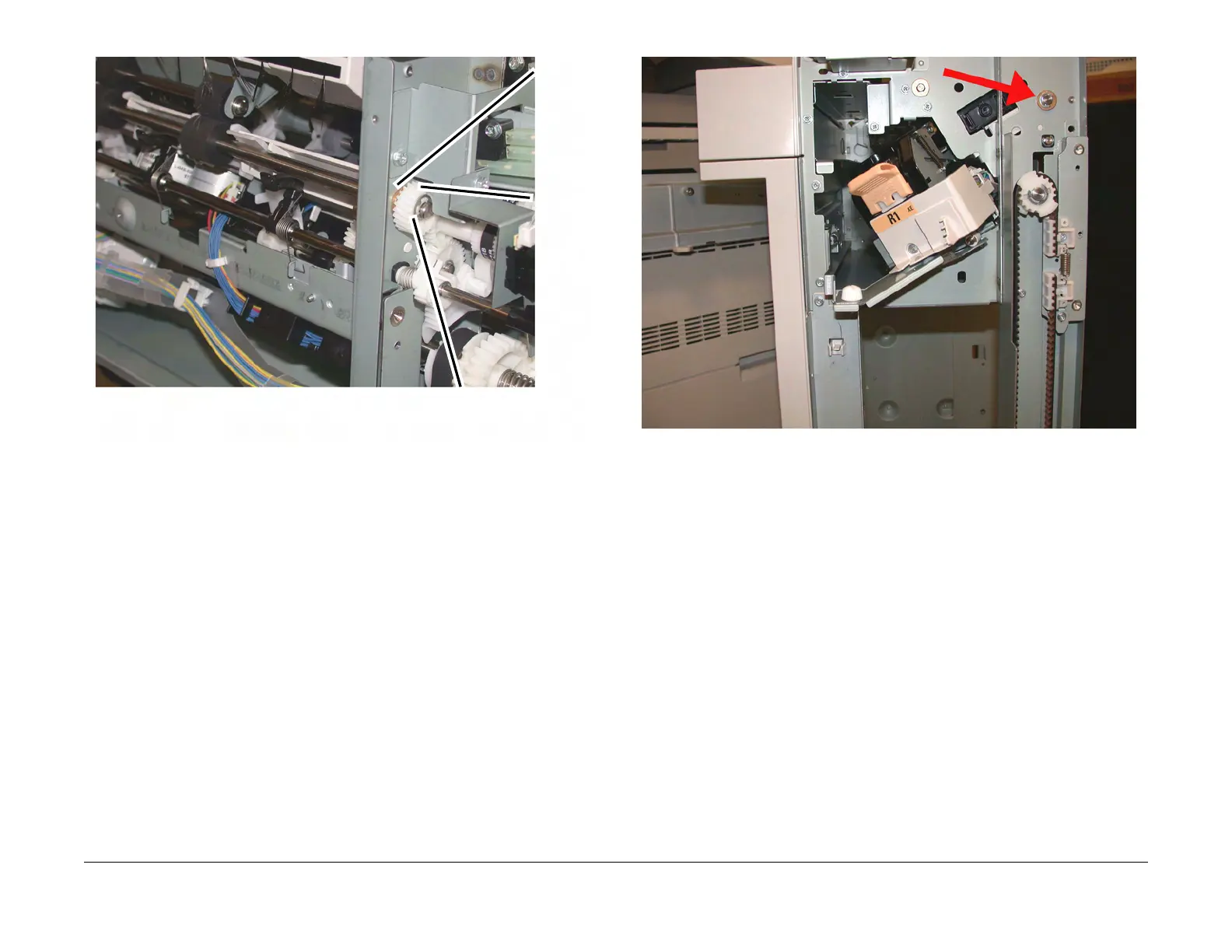

Figure 19 Installing the Eject Roll Shaft rear parts (j0st41720)
c. Install the brass bearing and E-ring onto the front of the Eject Roll Shaft. (Figure 20)
Figure 20 Installing the brass bearing and E-ring on the front of the Shaft (j0st41719)
13. Install the Compiler Tray screw (1).
14. Install the Eject Cover. (REP 16.2.5)
15. Install the Stacker Upper Cover. (REP 16.2.8)
16. Install the Stacker Tray. (REP 16.2.16)
17. Install the Stacker Lower Cover. (REP 16.2.7)
18. Install the Foot Cover. (REP 16.2.6)
19. Install the Rear Upper Cover. (REP 16.2.3)
20. Install the Front Cover. (REP 16.2.2)
21. Dock the SB Finisher to the Printer IOT. (REP 16.2.1)
1
Install
the
brass
Bearing
2
Install th
Gear
3
Install the E-ring
To Next Page
