Xerox WorkCentre 5230

February, 2008
5-51
WorkCentre 5225, 5230
PL 13.2
Parts List
Launch Version

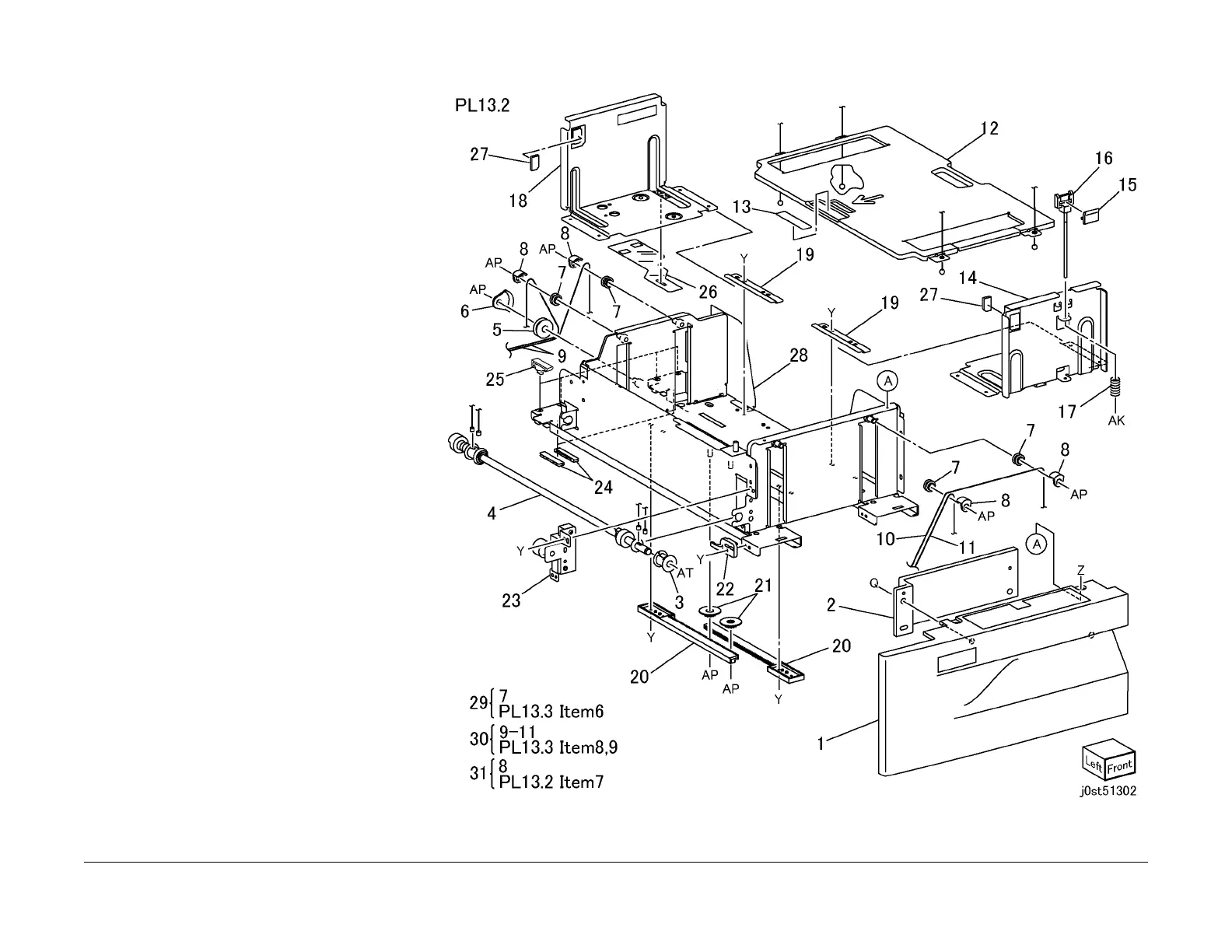

PL 13.2 Tray 3 Assembly-Tandem
Item Part Description
1 – Tray 3 Cover (P/O PL 13.1 Item 1)
2 – Handle Tray (P/O PL 13.1 Item 1)
3 – Pulley (P/O PL 13.1 Item 1)
4 006K23014 Lift Shaft
5 020E36560 Pulley
6 032E20890 Cable Guide
7 – Pulley (P/O PL 13.2 Item 29)
8 – Cable Guide (P/O PL 13.2 Item 31)
9 – Tray Cable (P/O PL 13.2 Item 30)
10 – Tray Cable (P/O PL 13.2 Item 30)
11 – Tray Cable (P/O PL 13.2 Item 30)
12 – Bottom Plate (P/O PL 13.1 Item 1)
13 – Pad (P/O PL 13.1 Item 1)
14 – Front Side Guide (P/O PL 13.1 Item
1)
15 – Knob (P/O PL 13.1 Item 1)
16 – Knob Assembly (P/O PL 13.1 Item
1)
17 – Spring (P/O PL 13.1 Item 1)
18 – Rear Side Guide (P/O PL 13.1 Item
1)
19 – Bracket (P/O PL 13.1 Item 1)
20 – Lack Rear (P/O PL 13.1 Item 1)
21 – Pinion (P/O PL 13.1 Item 1)
22 003E79750 Stopper
23 030K75541 Brake Bracket
24 – Rail Spacer (P/O PL 13.1 Item 1)
25 – Spacer (P/O PL 13.1 Item 1)
26 – Actuator (P/O PL 13.1 Item 1)
27 – Pad (P/O PL 13.1 Item 1)
28 – Frame (P/O PL 13.1 Item 1)
29 604K20730 Pulley Kit
30 604K20750 Tray Cable Kit
31 604K20740 Cable Guide Kit
