February, 2008
5-73
WorkCentre 5225, 5230
PL 18.4
Parts List
Launch Version

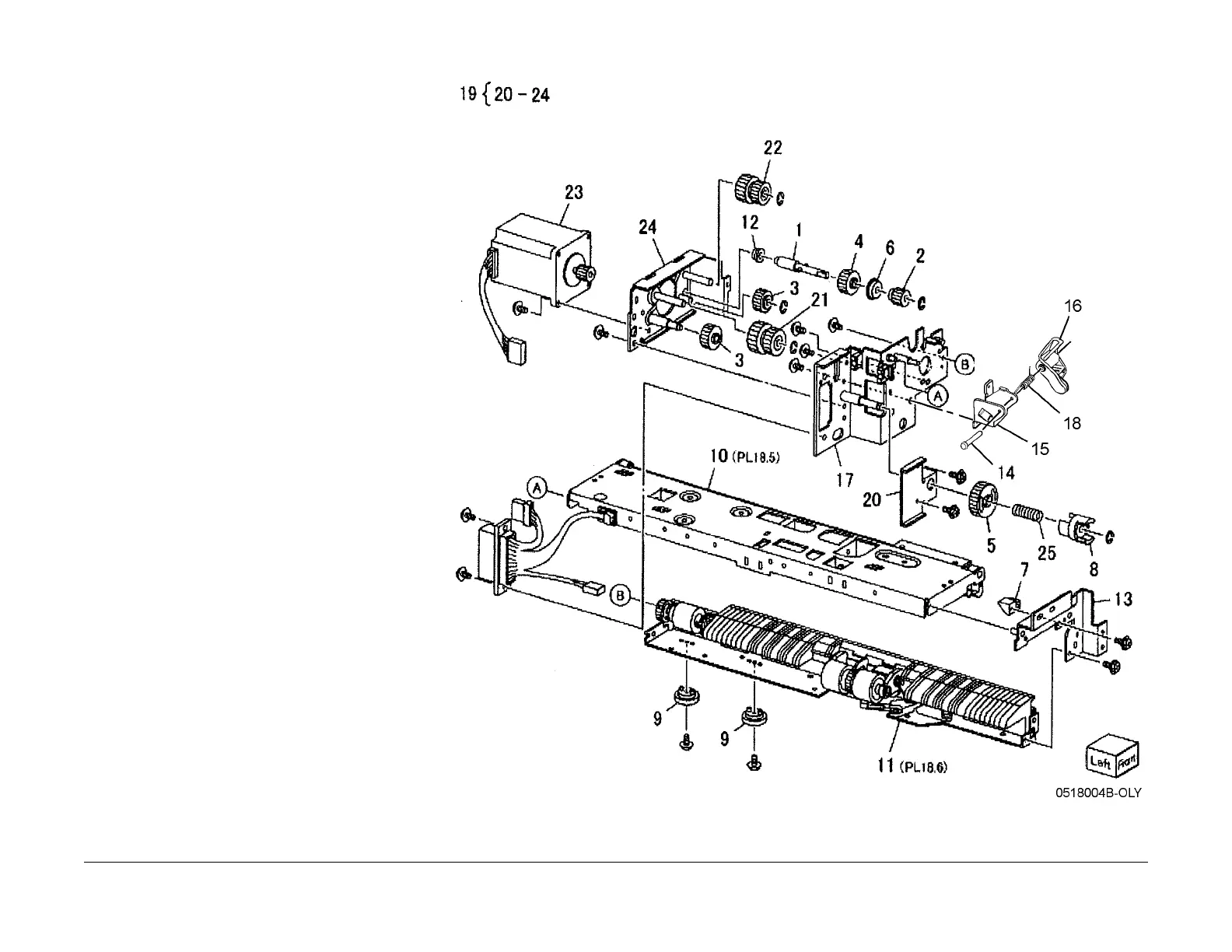

PL 18.4 HCF Feeder (1 of 3)
Item Part Description
1 – Shaft (P/O PL 18.1 Item 11)
2 007E78760 Gear (19T)
3 – Gear (25T) (Not Spared)
4 007E78780 Gear (25T)
5 007E78790 Gear (40)
6 013E25530 Bearing (Not Spared)
7 – Block (P/O PL 18.1 Item 11)
8 – Spacer (P/O PL 18.1 Item 11)
9 019E56470 Holder
10 – Upper Feeder Assembly (P/O PL
18.1 Item 11)
11 – Lower Feeder Assembly (P/O PL
18.1 Item 11)
12 413W66250 Ball Bearing (Not Spared)
13 – Front Frame (P/O PL 18.1 Item 11)
14 – Pin (Not Spared)
15 – Down Bracket (Not Spared)
16 – Link Bracket (Not Spared)
17 – Rear Frame (P/O PL 18.1 Item 11)
18 – Tension Spring (Not Spared)
19 – Lift/Motor Frame (P/O PL 18.1 Item
11)
20 – Bracket (P/O PL 18.4 Item 19)
21 007K88520 Gear (23T/27T)
22 007K88530 Gear (31T/36T)
23 127K37901 Lift/Feed Motor (REP 7.3.12)
24 –Plate
25 – Spring (Not Spared)
To Next Page
