Xerox WorkCentre 5230 User Manual

February, 2008
5-38
WorkCentre 5225, 5230
PL 11.2
Launch Version
Parts List

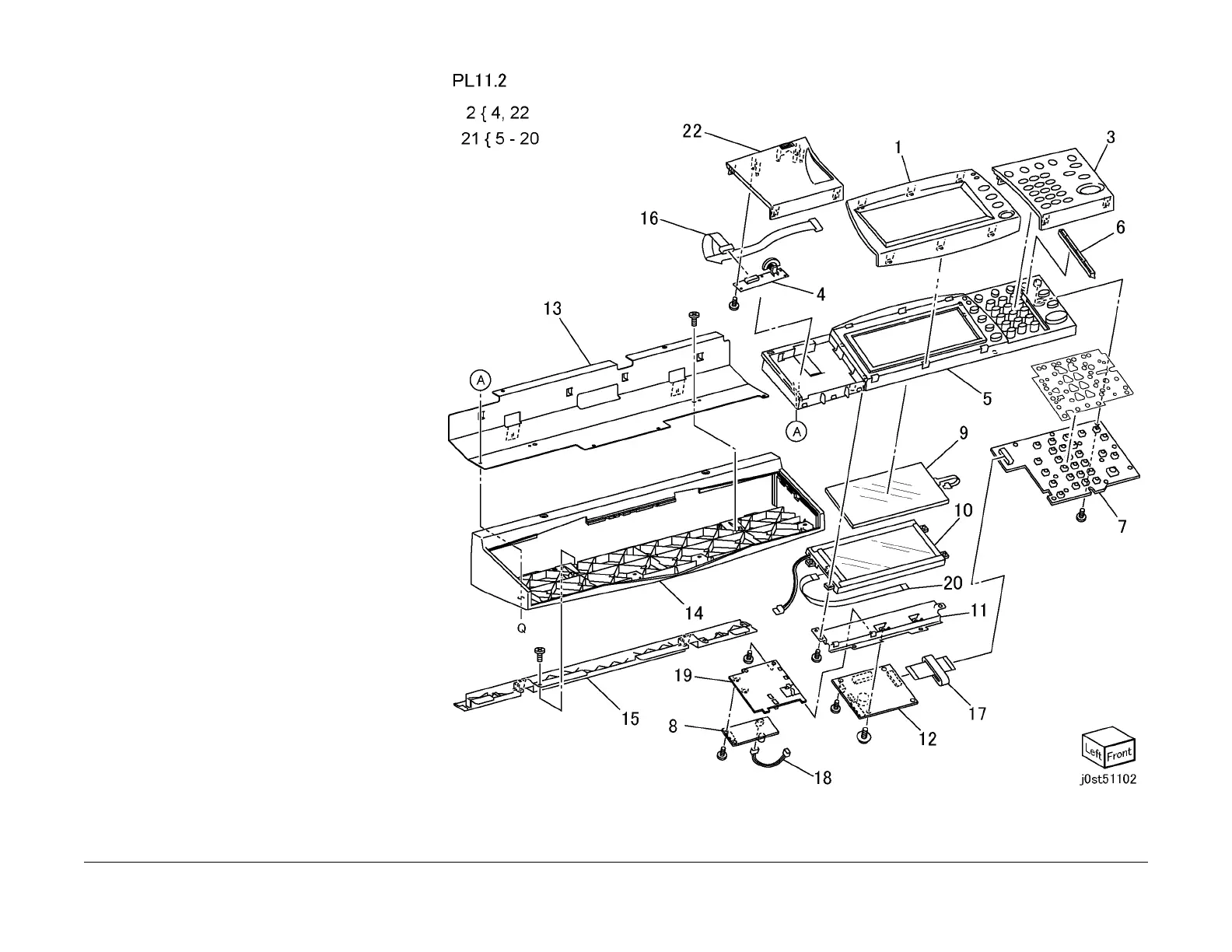

PL 11.2 Control Panel
Item Part Description
1 802E55521 Panel (Center)
2 802K60062 Panel (Left)
3 848E25740 Panel (Right)
4 – Contrast PWB (P/O PL 11.2 Item 2)
5 – Panel Housing (P/O PL 11.2 Item
21)
6 – Adjust Pen (P/O PL 11.2 Item 21)
7 – Control Panel PWB (P/O PL 11.2
Item 21)
8 160K91631 Inverter PWB
9 110K11610 Touch Panel
10 123K94951 Display
11 – Bracket (P/O PL 11.2 Item 21)
12 960K02444 UI PWB
13 – UI Base Frame (P/O PL 11.2 Item
21)
14 802K57132 UI Top Cover
15 – UI Lower Cover (P/O PL 11.2 Item
21)
16 – Wire Harness (P/O PL 11.2 Item
21)
17 – Wire Harness (P/O PL 11.2 Item
21)
18 – Wire Harness (P/O PL 11.2 Item
21)
19 – Support (P/O PL 11.2 Item 21)
20 – Wire Harness (P/O PL 11.2 Item
21)
21 802K64718 Control Panel Assembly
22 – Panel (P/O PL 11.2 Item 2)

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
