Xerox WorkCentre 5230

February, 2008
5-61
WorkCentre 5225, 5230
PL 15.2
Parts List
Launch Version

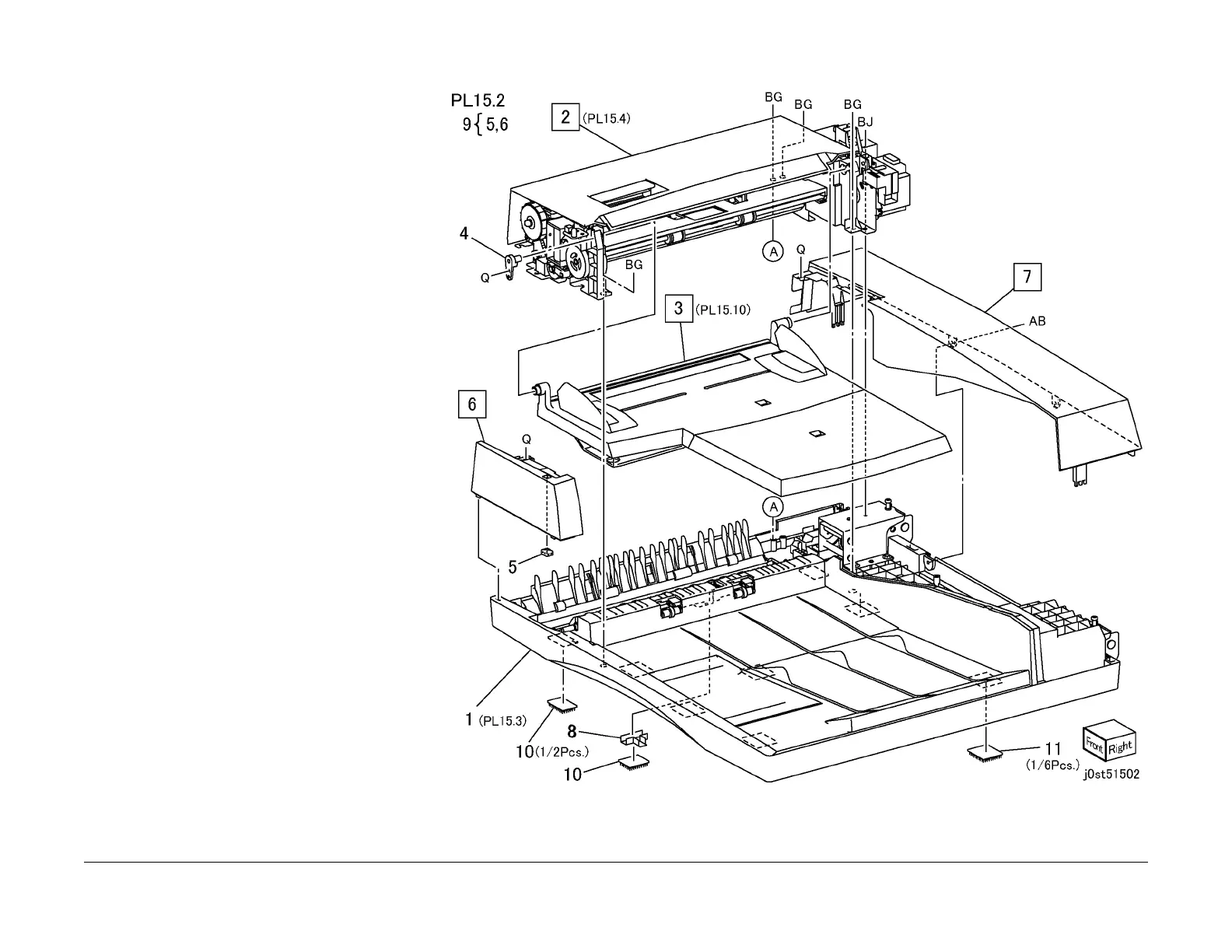

PL 15.2 DADF Component Cover
Item Part Description
1 801K22542 DADF Base Cover Assembly
2 – DADF Feeder Assembly (P/O PL
15.1 Item 3) (REP 15.2.2)
3 050K56180 DADF Document Tray (REP 15.2.1)
4 – Tray Holder (P/O PL 15.1 Item 3)
5 – LED Cap (P/O PL 15.2 Item 9)
6 802E57293 DADF Front Cover (REP 15.2.3)
7 802E57445 DADF Rear Cover (REP 15.2.4)
8 – Stamp Solenoid Connector Holder
(P/O PL 15.1 Item 3)
9 – DADF Front Cover (P/O PL 15.1
Item 3)
10 – Velcro Fastening (P/O PL 15.1 Item
3)
11 – Velcro Fastening (P/O PL 15.2 Item
1)
