February, 2008
4-113
WorkCentre 5225, 5230
REP 15.3.3, REP 15.4.1
Repairs and Adjustments
Launch Version

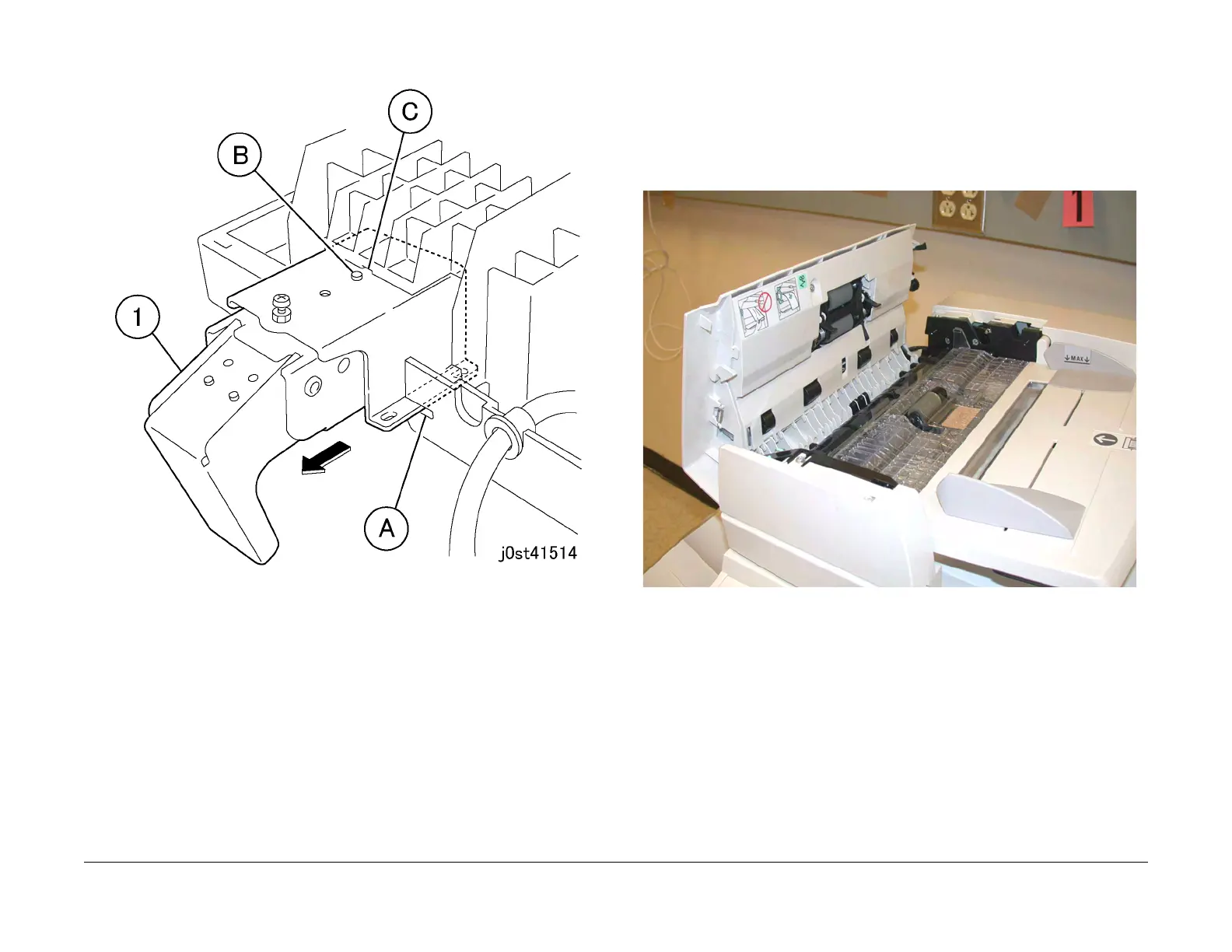

Figure 2 Removing the Right Counter Balance
Replacement
1. Check the DADF (ADJ 15.1.6).
REP 15.4.1 Retard Roll
Parts List on PL 15.4
Removal
NOTE: The Nudger Roll, Feed Roll (REP 15.6.1) and Retard Roll must be replaced at the
same time.
1. Open the Top Cover Assembly. (Figure 1)
Figure 1 Open the Top Cover
2. With a 6 inch screwdriver, lift up on the outboard end of the Retard Roll Shaft. (Figure 2)
To Next Page
