February, 2008
4-211
WorkCentre 5225, 5230
REP 22.9.4, REP 22.9.5
Repairs and Adjustments
Launch Version
10. Remove the Eject/Set Clamp Motor Assembly. (Figure 5)
(1)Remove Belts (2) from Pulleys.
(2)Remove Eject/Set Clamp Motor Assembly.

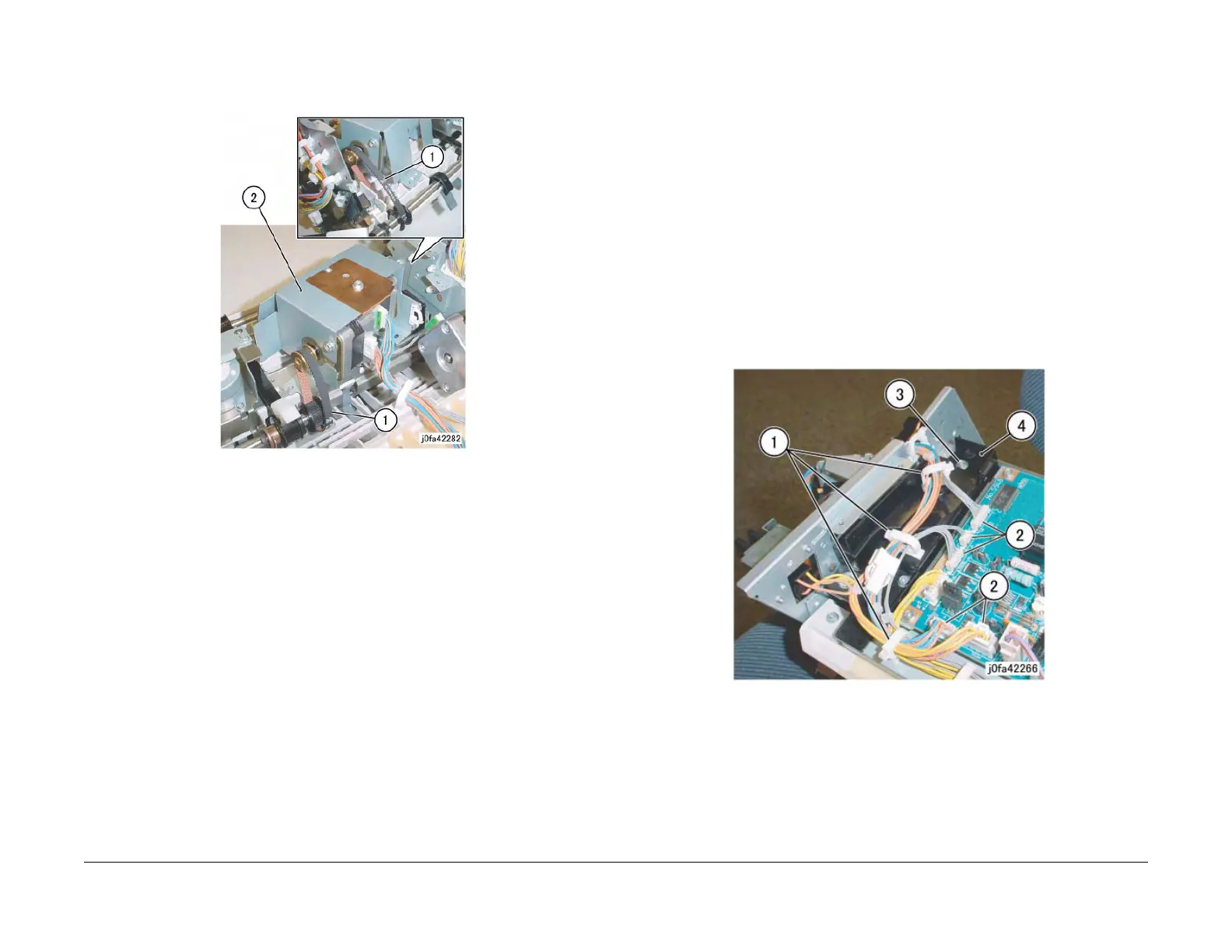

Figure 5 Removing the Eject/Set Clamp Motor Assembly (j0fa42282)
Replacement
1. Reverse the removal procedure for replacement.
REP 22.9.5 Rear Tamper Home Sensor
Parts List on PL 22.10
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Inner Front Cover. (PL 22.1)
3. Remove the Rear Cover. (PL 22.1)
4. Turn over the A-Finisher.
5. Remove the Bottom Cover. (PL 22.2)
6. Remove the Connector Bracket. (Figure 1)
(1)Release Clamps (3) and remove the wires.
(2)Disconnect Connectors (5).
(3)Remove Screws (2).
(4)Remove Connector Bracket.
Figure 1 Removing the Connector Bracket (j0fa42266)
To Next Page
