WorkCentre 5225, 5230
REP 12.1
Launch Version
Repairs and Adjustments

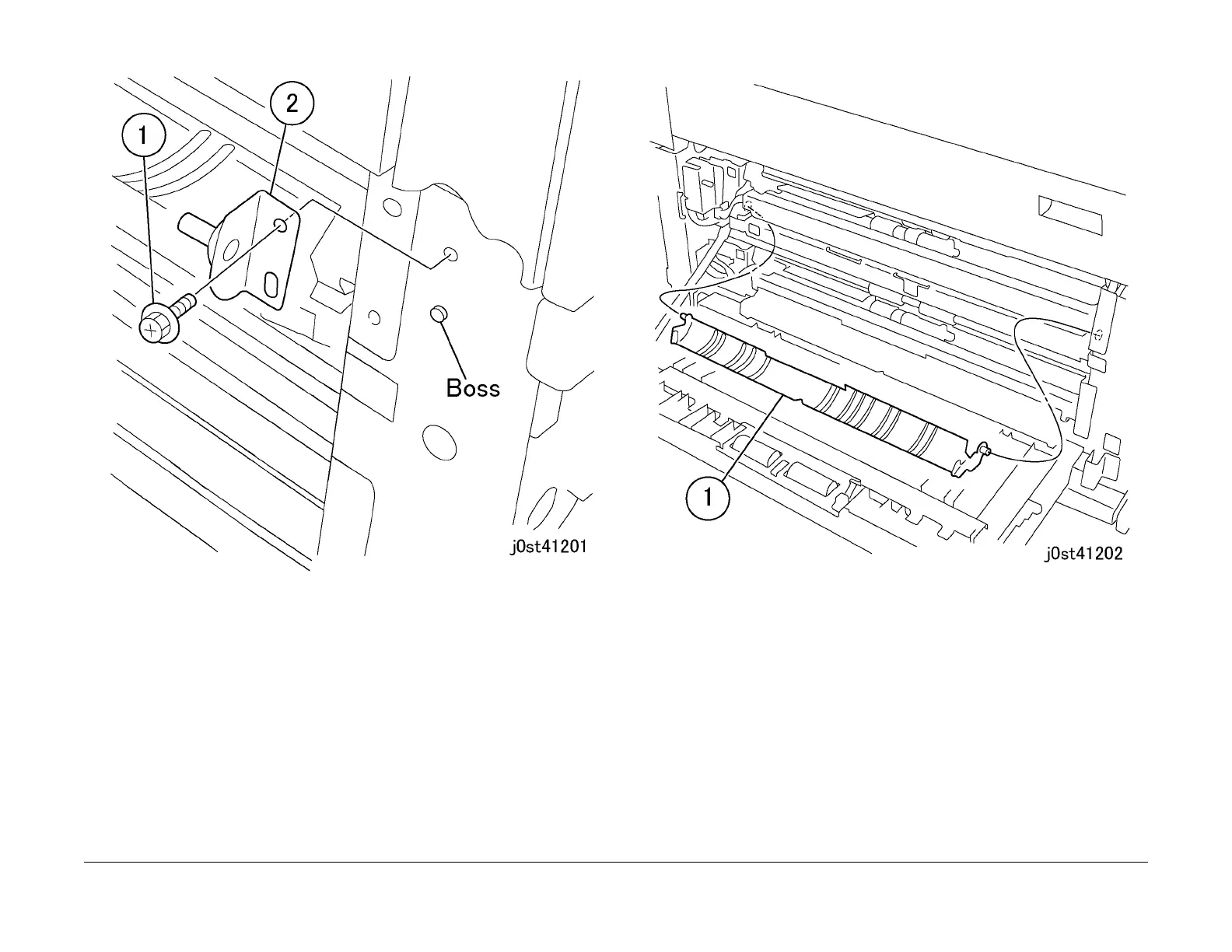

Figure 3 Removing the bracket (j0st41201)
6. Remove the Feed Out Chute. (Figure 4)
1. Remove the Feed Out Chute.
Figure 4 Removing the Feed Out Chute (j0st41202)
7. Disconnect the connector. (Figure 5)
1. Disconnect the connector.
2. Release the clamp to remove the wire.
