4-95
WorkCentre 5225, 5230
REP 13.4.1
Repairs and Adjustments
Launch Version
3. Remove the screws (x2).
4. Remove the Lower Chute.

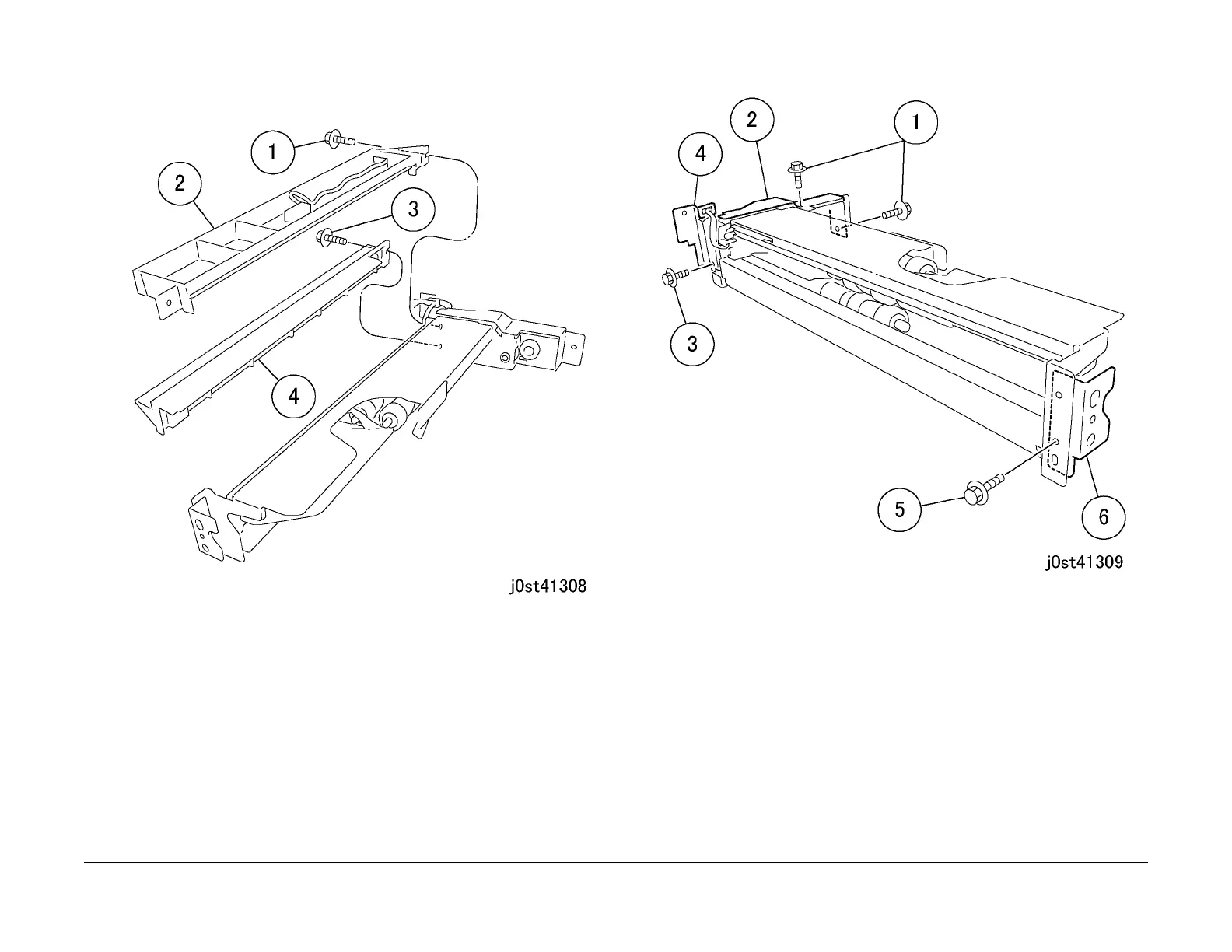

Figure 4 Removing the Lower Chute (j0st41308)
7. Remove the Tray 4 Feeder. (Figure 5)
1. Remove the screws (x2).
2. Remove the bracket.
3. Remove the screw.
4. Remove the bracket.
5. Remove the screw.
6. Remove the bracket.
Figure 5 Removing the Tray 4 Feeder (j0st41309)
Replacement
1. To install, carry out the removal steps in reverse order.
2. When replacing, enter Diag. mode. Clear the counter.
HFSI Chain Link 954-803
