Xerox WorkCentre 5230 User Manual

February, 2008
4-175
WorkCentre 5225, 5230
REP 22.3.1
Repairs and Adjustments
Launch Version
REP 22.3.1 Paddle Belt
Parts List on PL 22.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Compile Assembly. (REP 22.9.1)

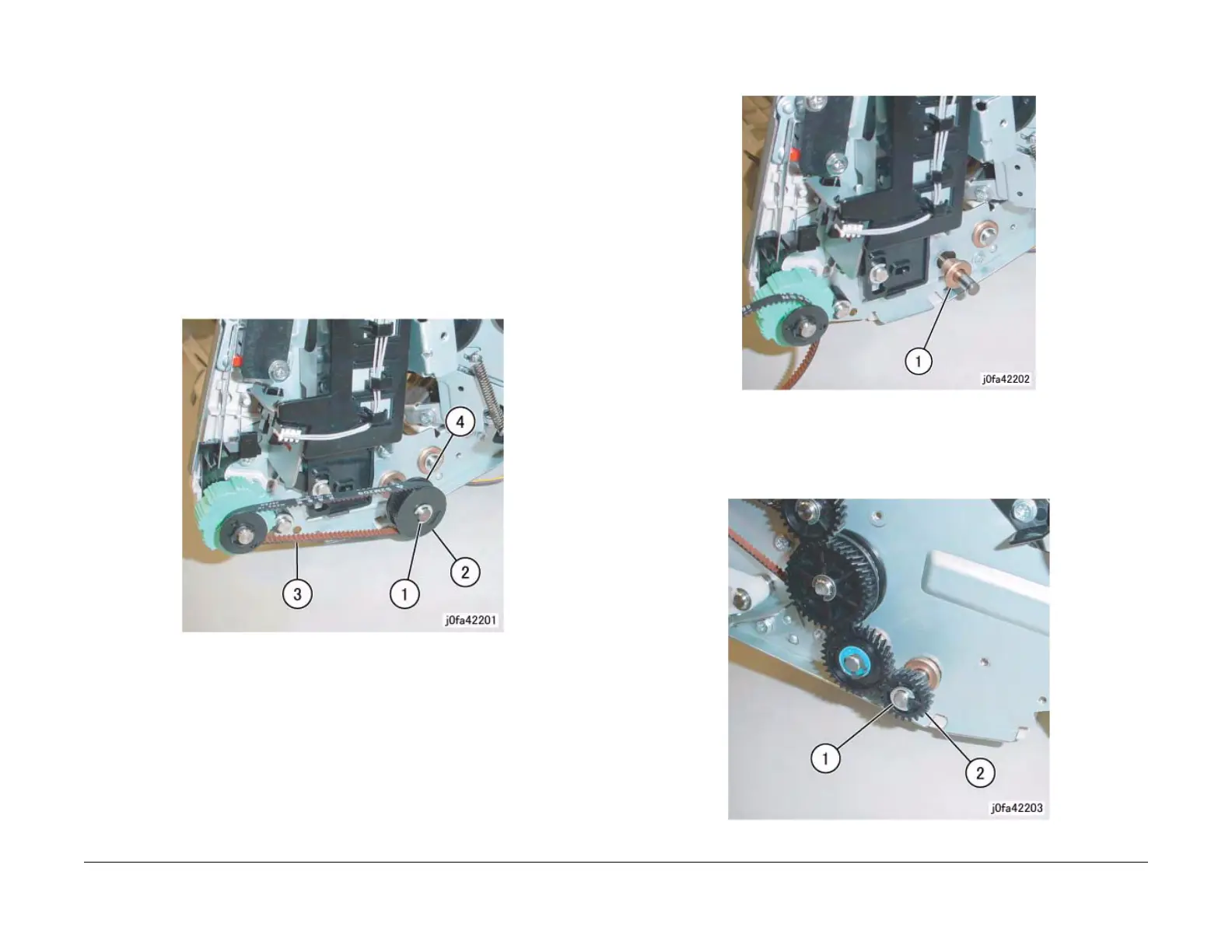

3. Remove the front Pulley. (Figure 1)
(1)Remove E-Clip.
(2)Remove Flange.
(3)Remove Belt from Pulley.
(4)Remove Pulley.
Figure 1 Removing the Pulley (j0fa42201)
4. Remove the front Bearing. (Figure 2)
(1)Remove Bearing.
Figure 2 Removing the Bearing (j0fa42202)
5. Remove the rear Gear. (Figure 3)
(1)Remove E-Clip.
(2)Remove Gear.
Figure 3 Removing the Gear (j0fa42203)

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
