8. Remove the Gear. (Figure 4)
(1)Remove E-Clip.
(2)Pull out Gear.
(3)Release Belt from Gear, and remove Gear.
(4)Remove Flange.

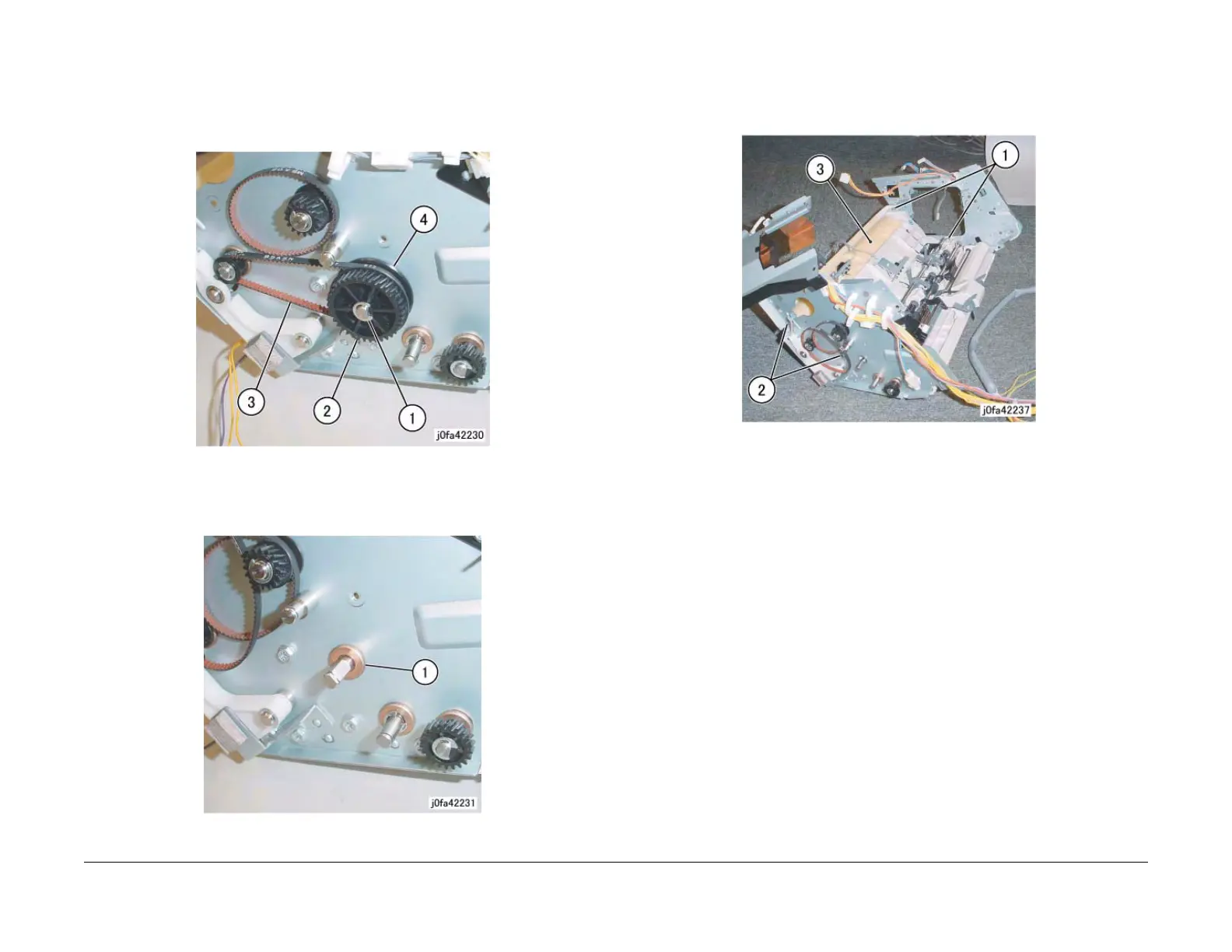

Figure 4 Removing the Gear (j0fa42230)
9. Remove the Bearing. (Figure 5)
(1)Remove Bearing.
Figure 5 Removing the Bearing (j0fa42231)
10. Remove the ENT Lower Chute Assembly. (Figure 6)
(1)Remove Screws (2).
(2)Loosen Screws (2).
(3)Remove ENT Lower Chute Assembly.
Figure 6 Removing the ENT Lower Chute Assembly (j0fa42237)
Replacement
1. Reverse the removal procedure for replacement.
