Xerox WorkCentre 5230 User Manual

February, 2008
3-19
WorkCentre 5225, 5230
Image Quality
Launch Version
IQS10 Resolution Specification
Procedure
Use Side B of the Standard Test Pattern.
The complete resolution of designated LP/mm lines for spe-
cific magnification percentages is listed in Table below.
It is also required that the designated LP/mm lines be
resolved in the top-to-bottom direction and the side-to-side
direction over the entire copy (Figure 1).

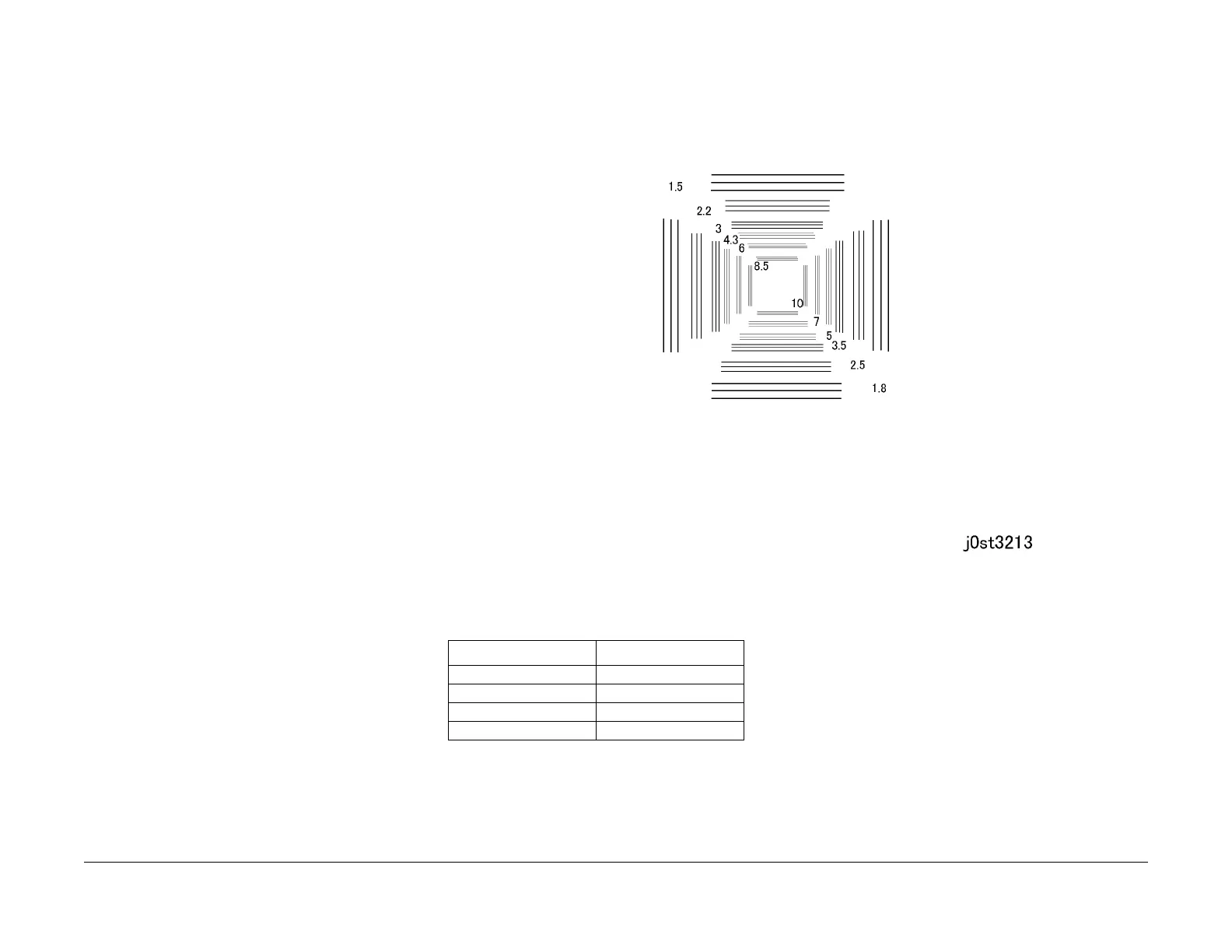

Figure 1 Resolution(j0st3213)
Table 1 Resolution Specifications
Magnification(%) Resolution LP/mm
70 2.5
100 4.3
141 3.5
200 3.5
