Xerox WorkCentre 5230

February, 2008
4-3
WorkCentre 5225, 5230
REP 1.1.1
Repairs and Adjustments
Launch Version
REP 1.1.1 Main Drive Assembly
Parts List on PL 1.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power
applied to the machine.
1. Remove the ESS Cover Assembly. (Figure 1)
1. Loosen the screws (x2).
2. Remove the ESS Cover Assembly.

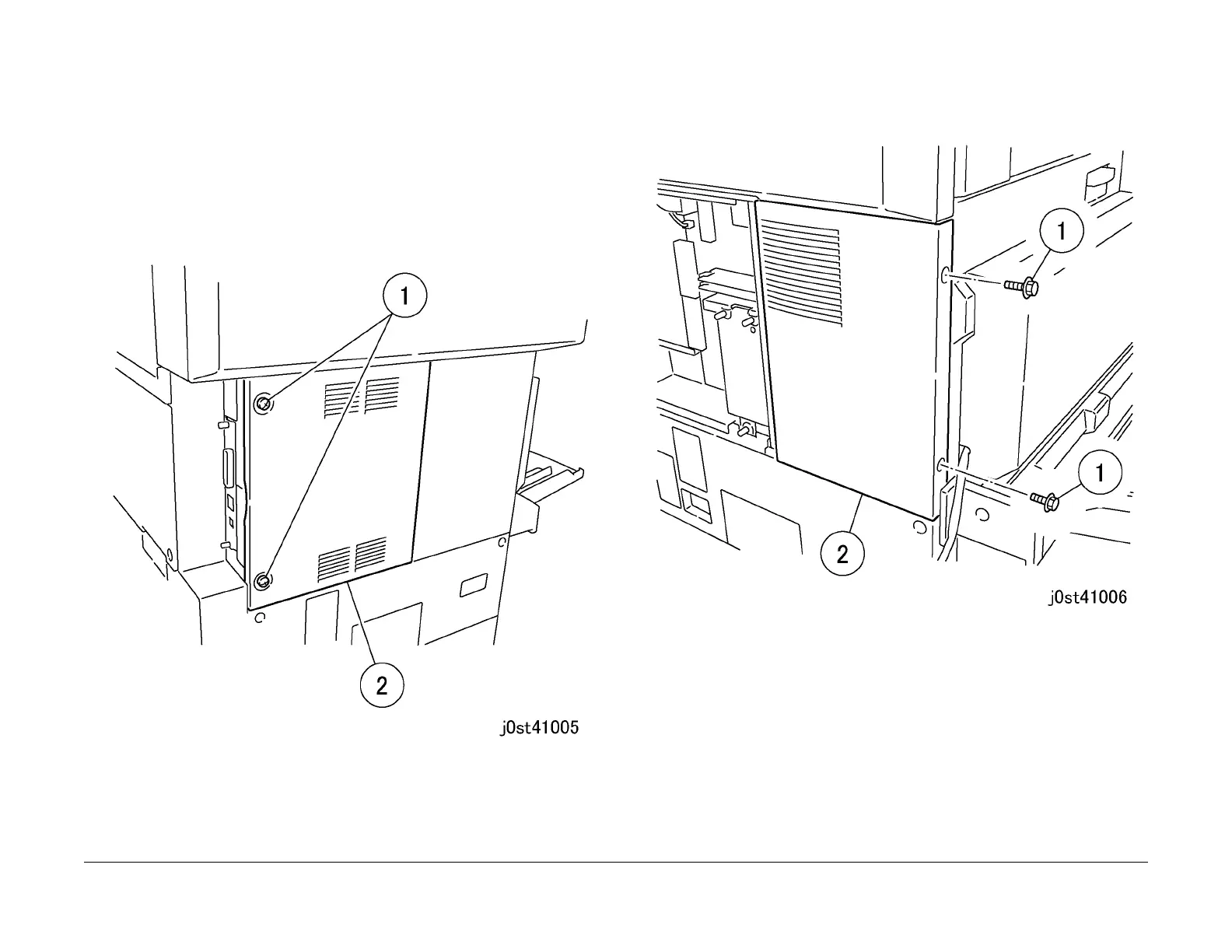

Figure 1 Removing the ESS Cover Assembly (j0st41005)
2. Remove the Rear Middle Cover. (Figure 2)
1. Remove the screws (x2).
2. Remove the Rear Middle Cover.
Figure 2 Removing the Rear Middle Cover (j0st41006)
