Xerox WorkCentre 5230 User Manual

February, 2008
4-88
WorkCentre 5225, 5230
REP 12.4
Launch Version
Repairs and Adjustments
REP 12.4 2TM PWB
Parts List on PL 12.6
Clean
Replacement
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.

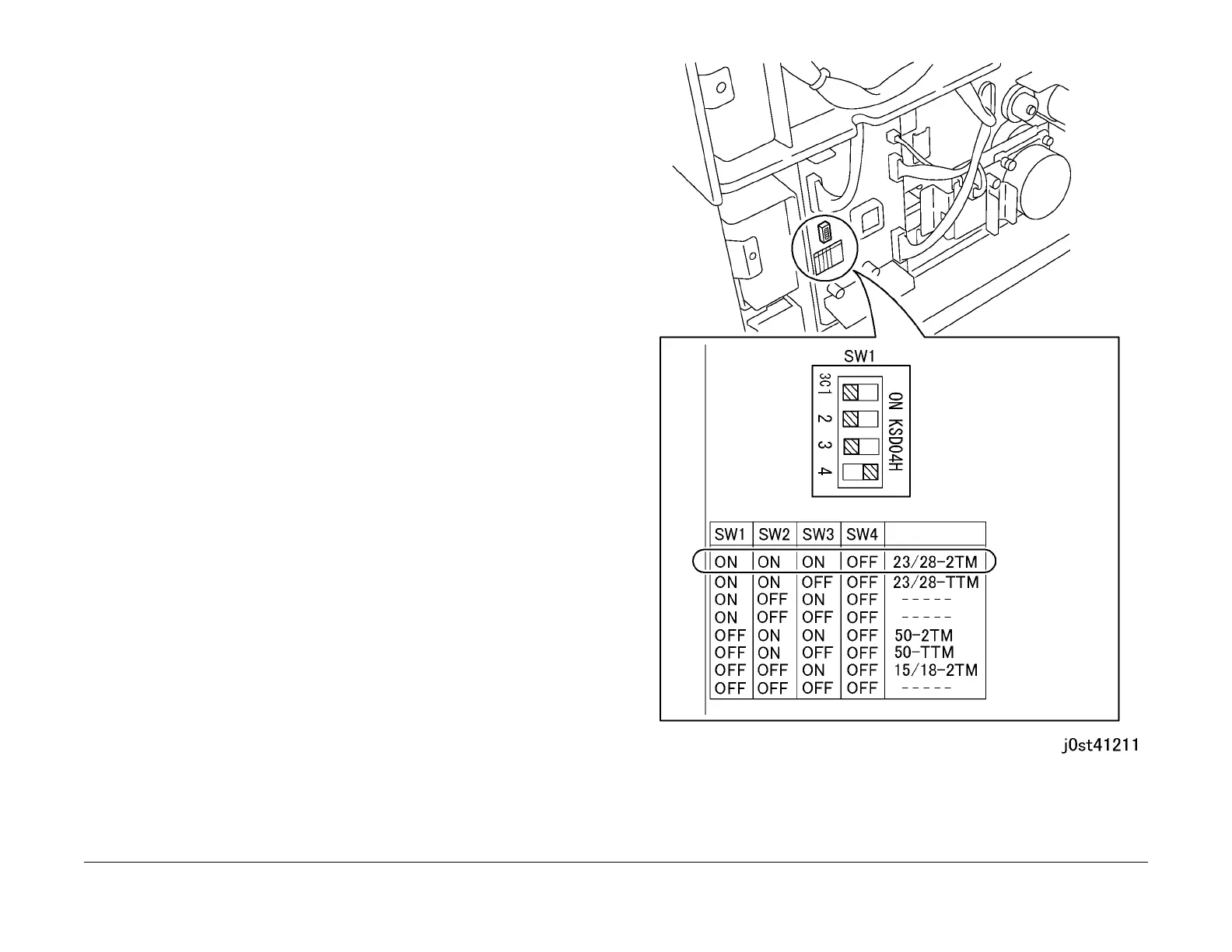

1. When replacing the 2TM PWB, set the 2TM PWB Dip Switch to the position as shown.
(Figure 1)
Figure 1 Setting the Dip Switch (j0st41211)
