Xerox WorkCentre 5230

February, 2008
4-121
WorkCentre 5225, 5230
REP 15.6.1
Repairs and Adjustments
Launch Version

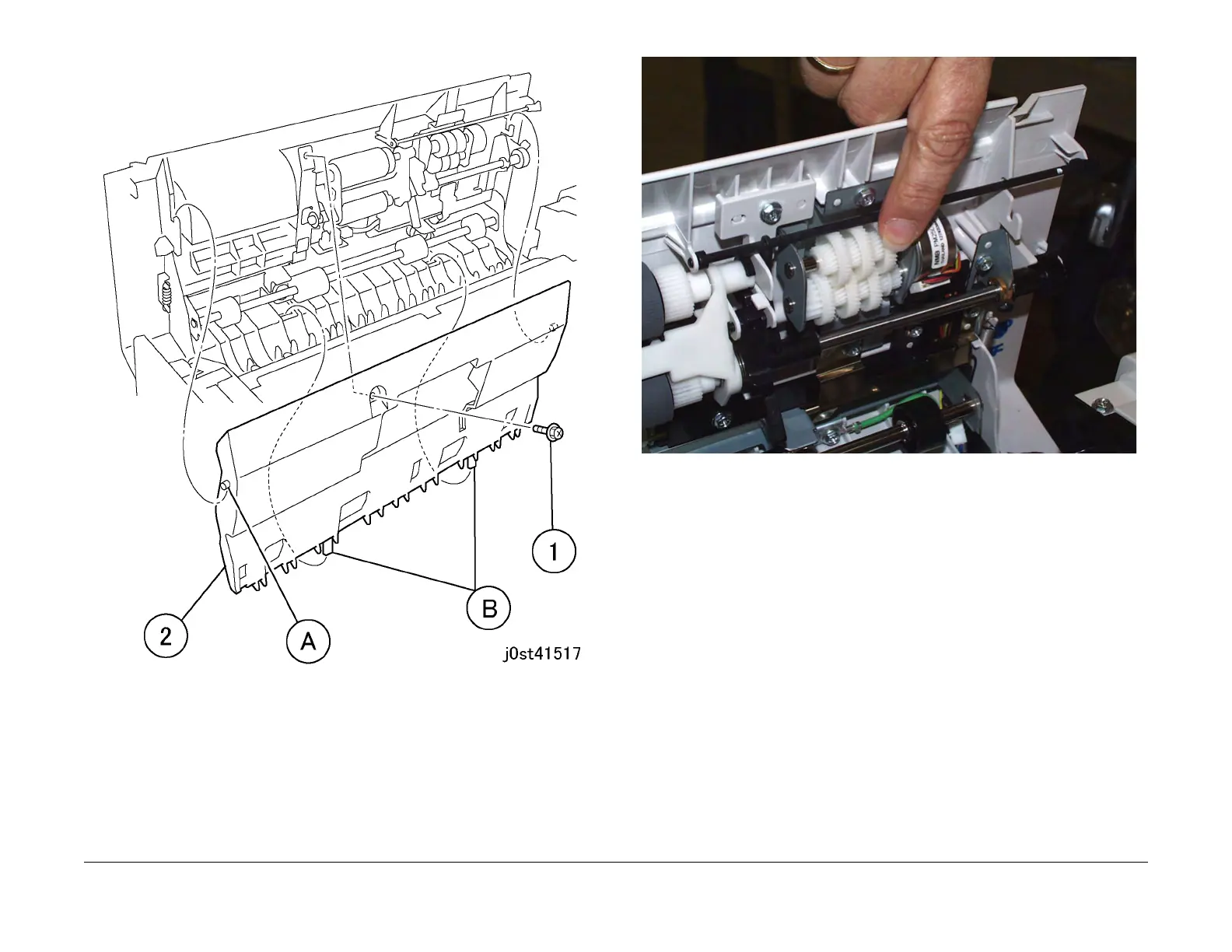

Figure 1 Removing the Feed Upper Chute
3. To remove the Nudger Roll rotate the inboard gear of the Torque Limiter until the Nudger
Roll is fully extended. (Figure 2)
Figure 2 Rotate the gear to extend the Retard Roll
4. Lift the retaining clip from the Nudger Roll. (Figure 3)
