February, 2008
4-181
WorkCentre 5225, 5230
REP 22.4.1, REP 22.4.2
Repairs and Adjustments
Launch Version
7. Remove the Exit Roll Assembly. (Figure 4)
(1)Remove Exit Roll Assembly.

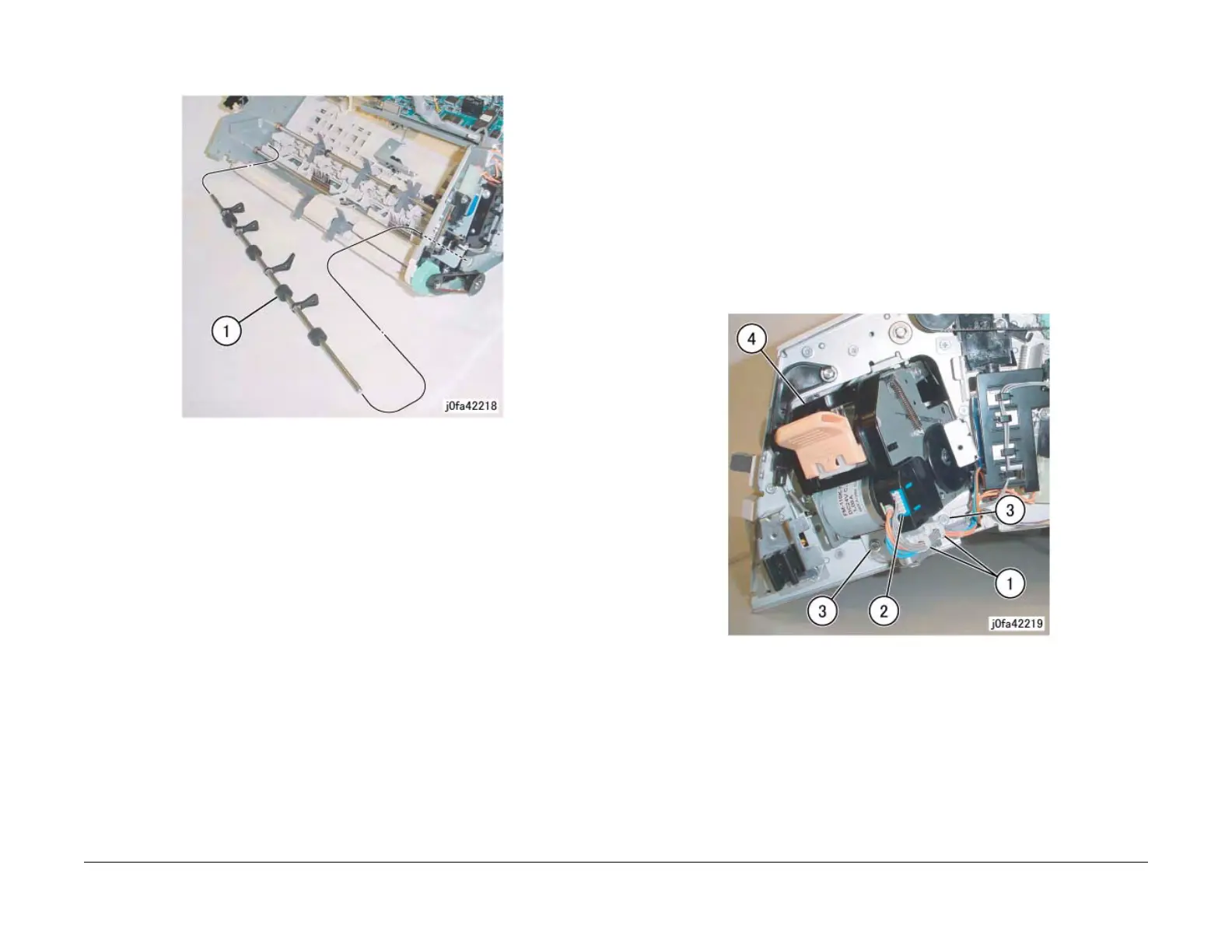

Figure 4 Removing the Exit Roll Assembly (j0fa42218)
Replacement
1. Reverse the removal procedure for replacement.
REP 22.4.2 Staple Assembly
Parts List on PL 22.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Inner Front Cover. (PL 22.1)
3. Remove the Staple Assembly. (Figure 2)
(1)Remove Clamps (2).
(2)Disconnect Connectors (2).
(3)Remove Screws (2).
(4)Remove Staple Assembly.
Figure 1 Removing the Staple Assembly (j0fa42219)
To Next Page
