Image Quality
Launch Version
DADF (Duplex) +/-2.40
Table 1 Specification of Skew
Configuration Range
IQS7 Lead Edge Deletion Specification
Procedure
Use Side A of the Standard Test Pattern.
The image deleted intentionally along the lead edge must be 2.0 mm from the lead edge of the copy (Figure 1).(maximum is
4mm)

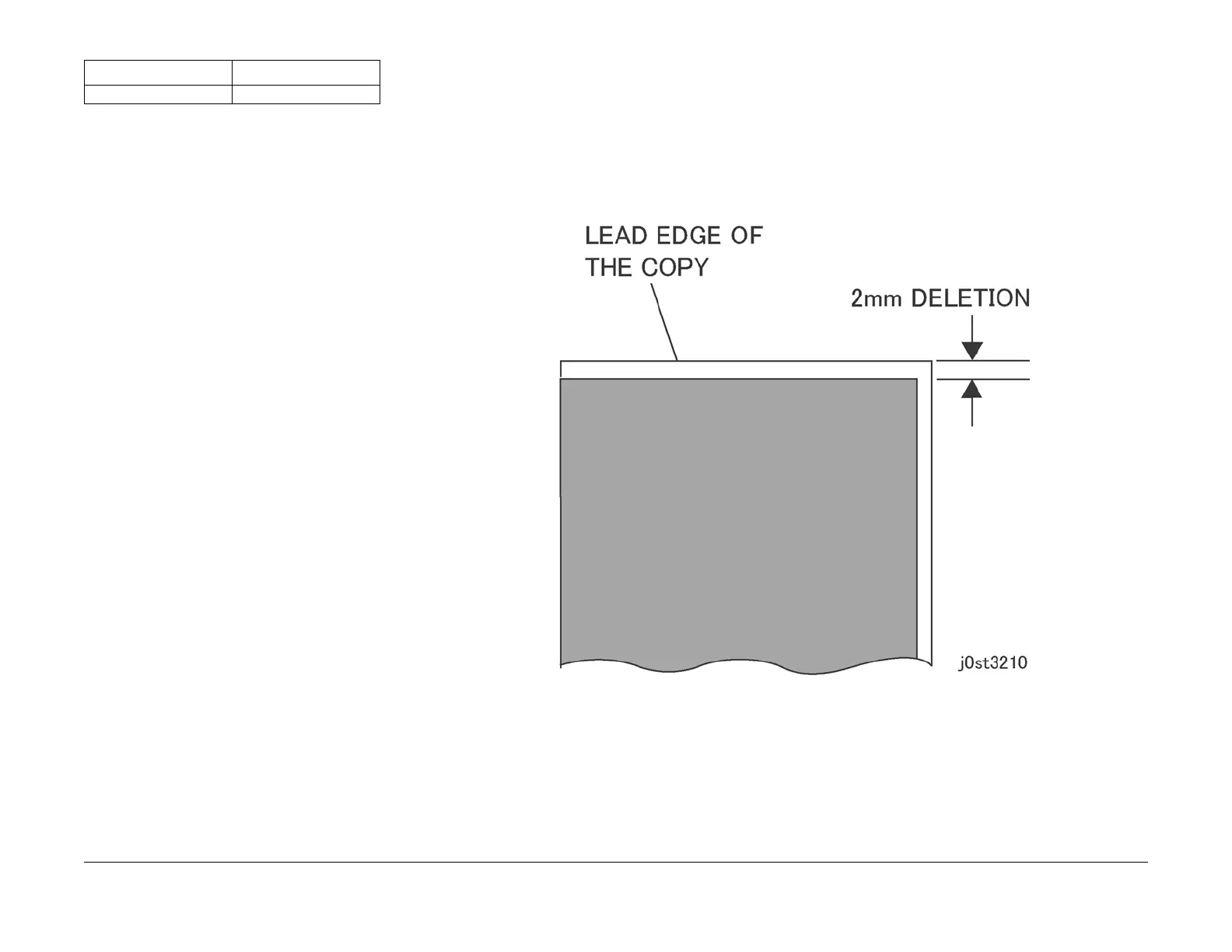

Figure 1 Lead Edge Deletion(j0st3210)
