February, 2008
4-217
WorkCentre 5225, 5230
REP 22.10.2, REP 22.10.3
Repairs and Adjustments
Launch Version

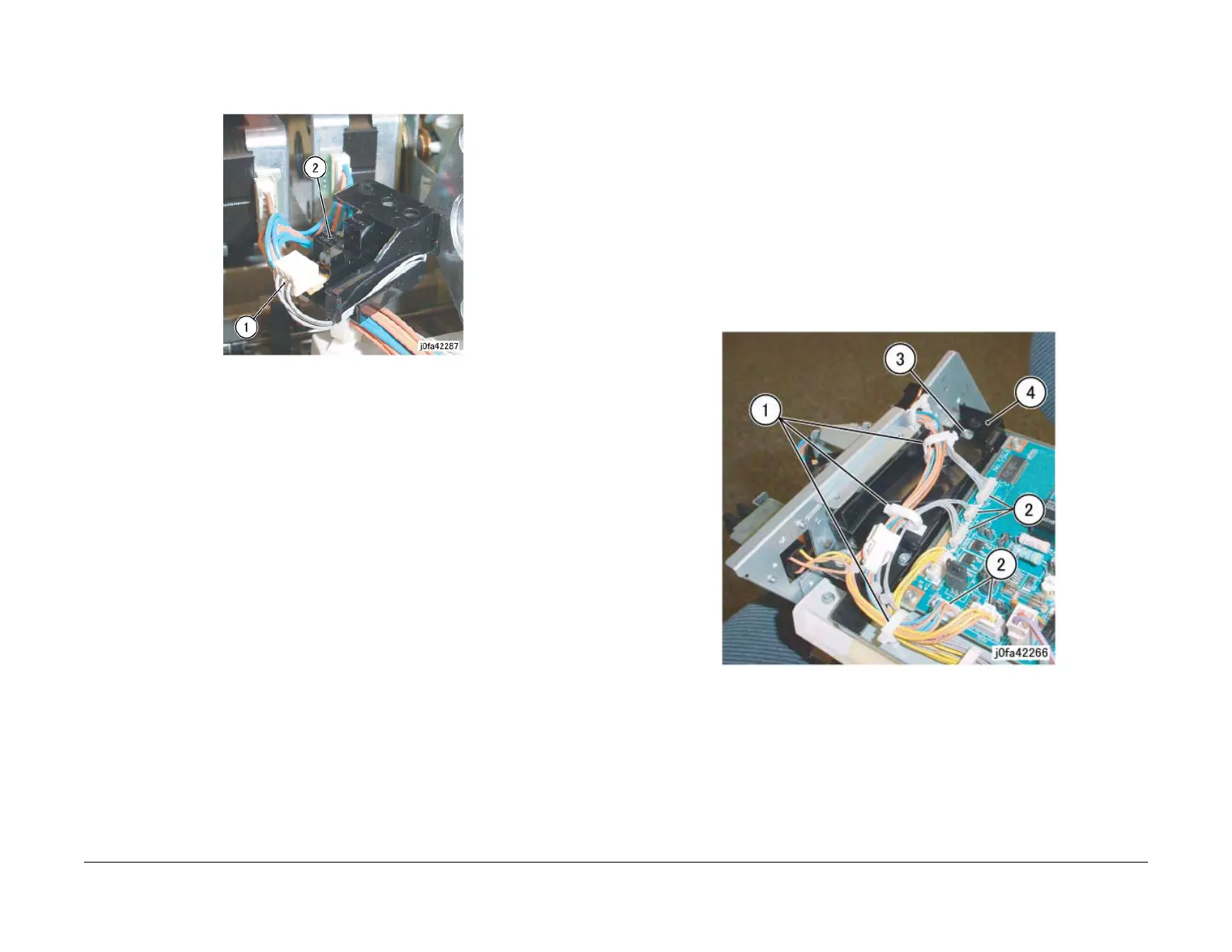

9. Remove the Front Tamper Home Sensor. (Figure 4)
(1)Disconnect Connector.
(2)Remove Front Tamper Home Sensor.
Figure 4 Removing the Front Tamper Home Sensor (j0fa42287)
Replacement
1. Reverse the removal procedure for replacement.
REP 22.10.3 Eject Clamp Home Sensor
Parts List on PL 22.9
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Turn over the A-Finisher.
3. Remove the Bottom Cover. (PL 22.2)
4. Remove the Connector Bracket. (Figure 1)
(1)Release Clamps (3) and remove the wires.
(2)Disconnect Connectors (5).
(3)Remove Screws (2).
(4)Remove Connector Bracket.
Figure 1 Removing the Connector Bracket (j0fa42266)
To Next Page
