February, 2008
4-37
WorkCentre 5225, 5230
REP 7.3.1, REP 7.3.2
Repairs and Adjustments
Launch Version
REP 7.3.1 HCF Tray 6
Parts List on PL 18.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open the HCF Tray by pulling the tray toward you. (PL 18.1)
2. Remove all paper from the tray.
3. Using a small screwdriver, or other small, blunt instrument, release the stopper on each
rail of the tray by inserting the screwdriver into the hole of the stopper and pulling the tray
toward you.
4. Remove the tray by pulling it toward you and off of its rails.
Replacement
1. Slide the rails (2) into the HCF housing.
2. Line up the rails of the tray with the adjoining rails of the HCF and push the tray into place.
3. Place previously removed paper, or fresh paper, into the tray.
REP 7.3.2 HCF Feeder
Parts List on PL 18.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the HCF Tray. (REP 7.3.1)
2. Remove the (2) screws used to secure the HCF Feeder on its rail. (Figure 1)
NOTE: For a better view of both the HCF Feeder and its securing screws, open the
Feeder Top Cover of the HCF.

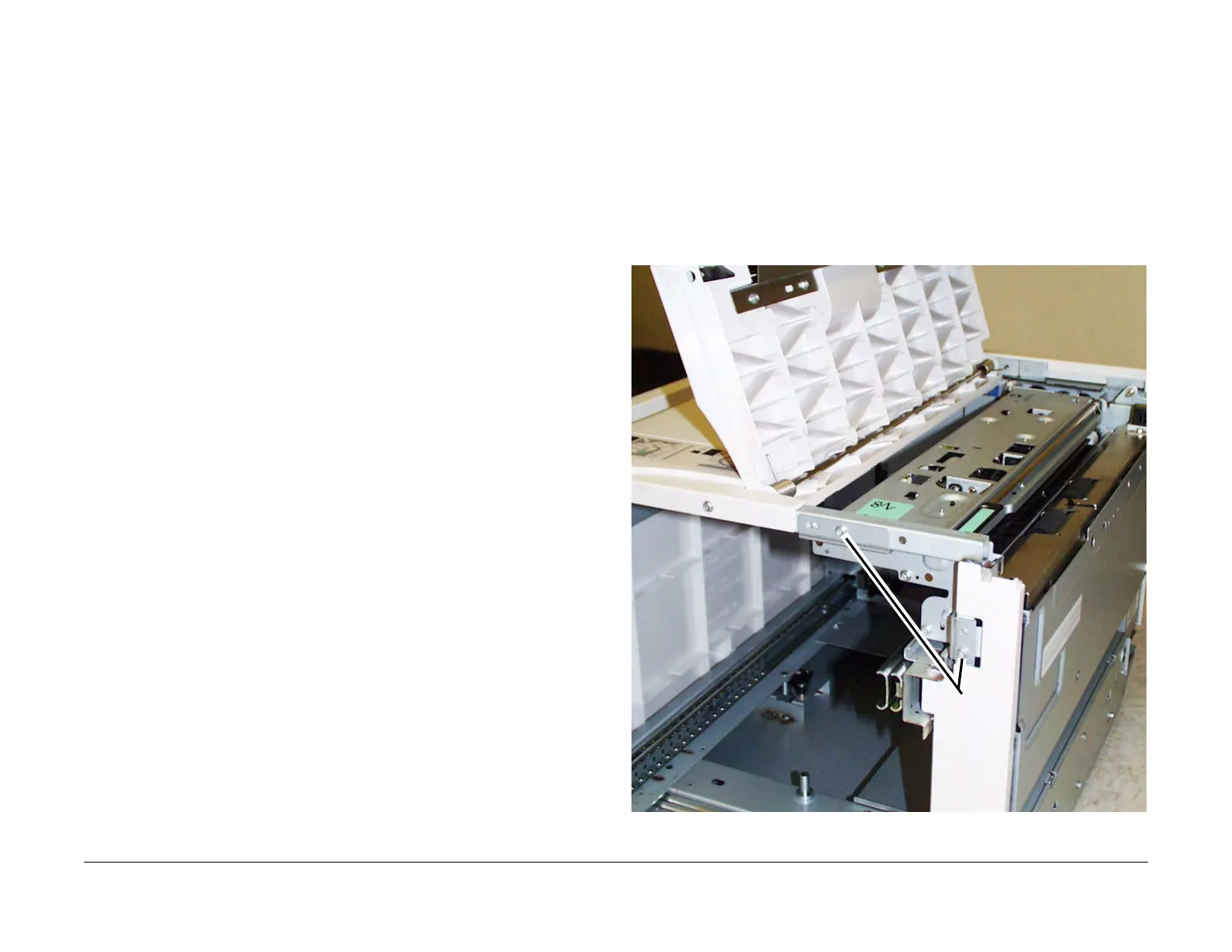

Figure 1 Feeder Securing Screws
1
Feeder
Securing
Screws
To Next Page
