Xerox WorkCentre 5230

February, 2008
4-106
WorkCentre 5225, 5230
REP 15.2.2
Launch Version
Repairs and Adjustments
REP 15.2.2 DADF Feeder Assembly
Parts List on PL 15.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the DADF. (REP 15.1.1)
2. Remove the following covers.
• DADF Front Cover (REP 15.2.3)
• DADF Rear Cover (REP 15.2.4)
3. Open the Top Cover Assembly.
4. Remove the DADF Document Tray. (REP 15.2.1)
5. Disconnect the DADF PWB connectors. (Figure 1)
1. Disconnect the connectors (6).

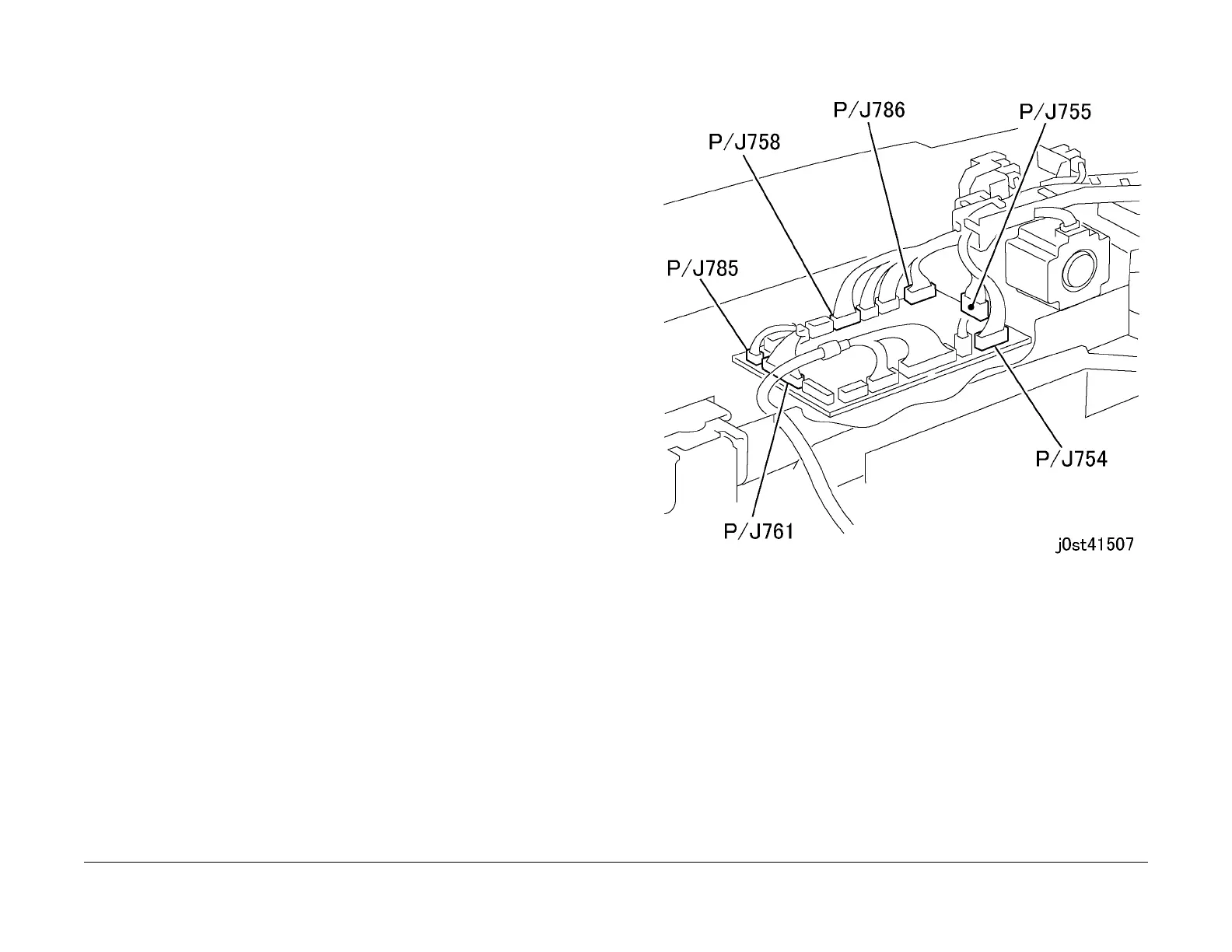

Figure 1 Disconnecting the DADF PWB connectors
6. Remove the lever and Wire Harness. (Figure 2)
1. Loosen the Set Screw and remove the disk.
2. Release the hook and remove the lever.
3. Remove the screw.
4. Remove the washer.
5. Move the DADF Interlock Switch.
6. Disconnect the connector.
7. Disconnect the connector.
8. Remove the Wire Harness from the clamps (x3).
