February, 2008
5-22
WorkCentre 5225, 5230
PL 6.2
Launch Version
Parts List

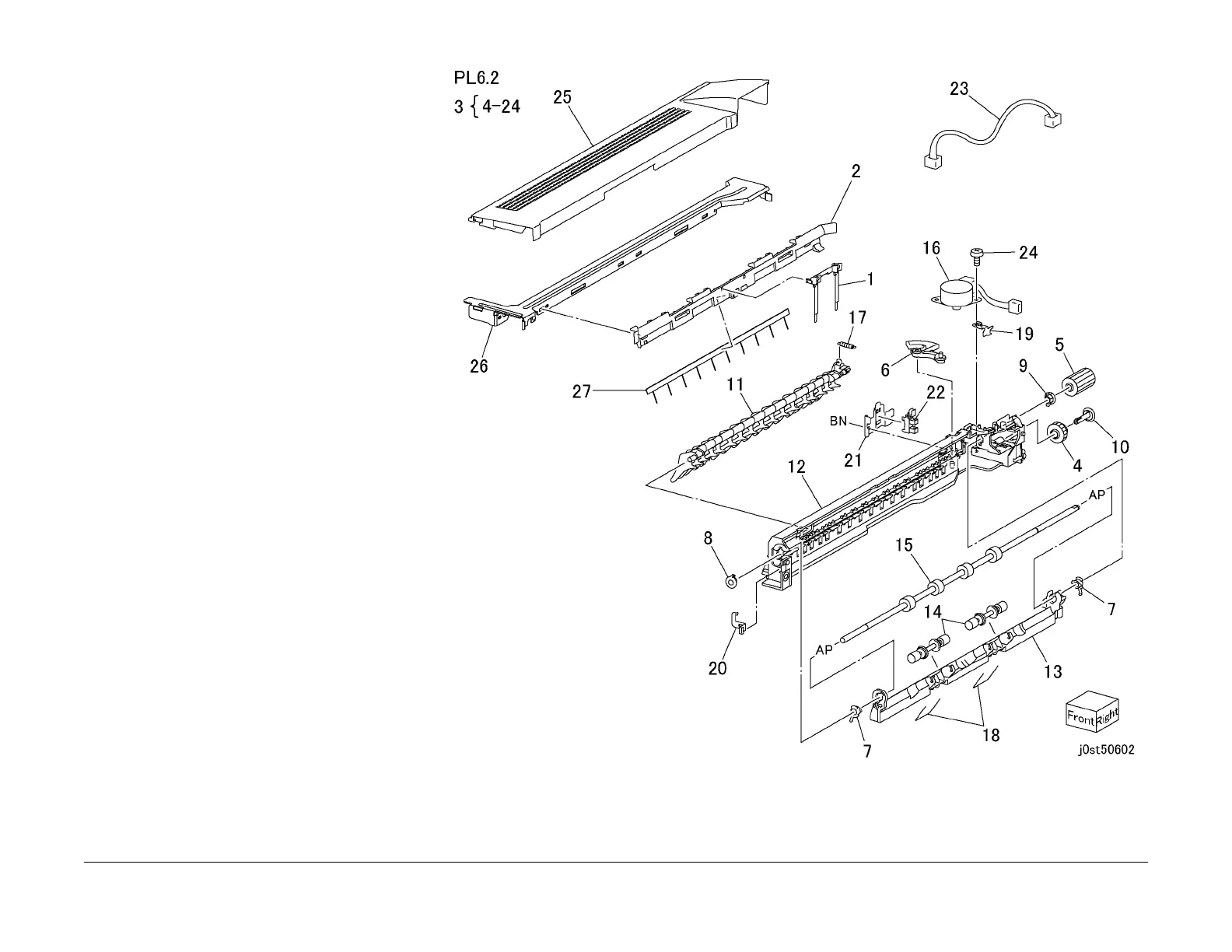

PL 6.2 Exit 1
Item Part Description
1 036K91620 Paper Weight Assembly
2 038E26725 Exit 1 Tray Guide
3 059K55770 Exit 1 Assembly
4 – Gear (P/O PL 6.2 Item 3)
5 – Gear (19T) (P/O PL 6.2 Item 3)
6 – Offset Gear (P/O PL 6.2 Item 3)
7 – Bearing (P/O PL 6.2 Item 3)
8 013E25550 Bearing
9 013E30050 Bearing
10 – Cap (P/O PL 6.2 Item 3)
11 050E19804 Exit 1 Gate
12 – Lower Chute (P/O PL 6.2 Item 3)
13 054E23844 OCT Chute
14 604K47020 Roller Kit (2/Kit)
15 059K26760 Exit 1 Roll
16 127K57200 Offset Motor 1
17 – Spring (P/O PL 6.2 Item 3)
18 604K20420 Spring Kit (2/Kit)
19 – Earth Plate (P/O PL 6.2 Item 3)
20 – Earth Plate (P/O PL 6.2 Item 3)
21 – Bracket (P/O PL 6.2 Item 3)
22 930W00113 OCT Home Sensor
23 962K15241 Wire Harness
24 – Screw (P/O PL 6.2 Item 3)
25 – Exit 1 Top Cover (Not Spared)
26 – Bracket (Not Spared)
27 105E12940 Eliminator
To Next Page
