Xerox WorkCentre 5230 User Manual

February, 2008
5-66
WorkCentre 5225, 5230
PL 15.7
Launch Version
Parts List

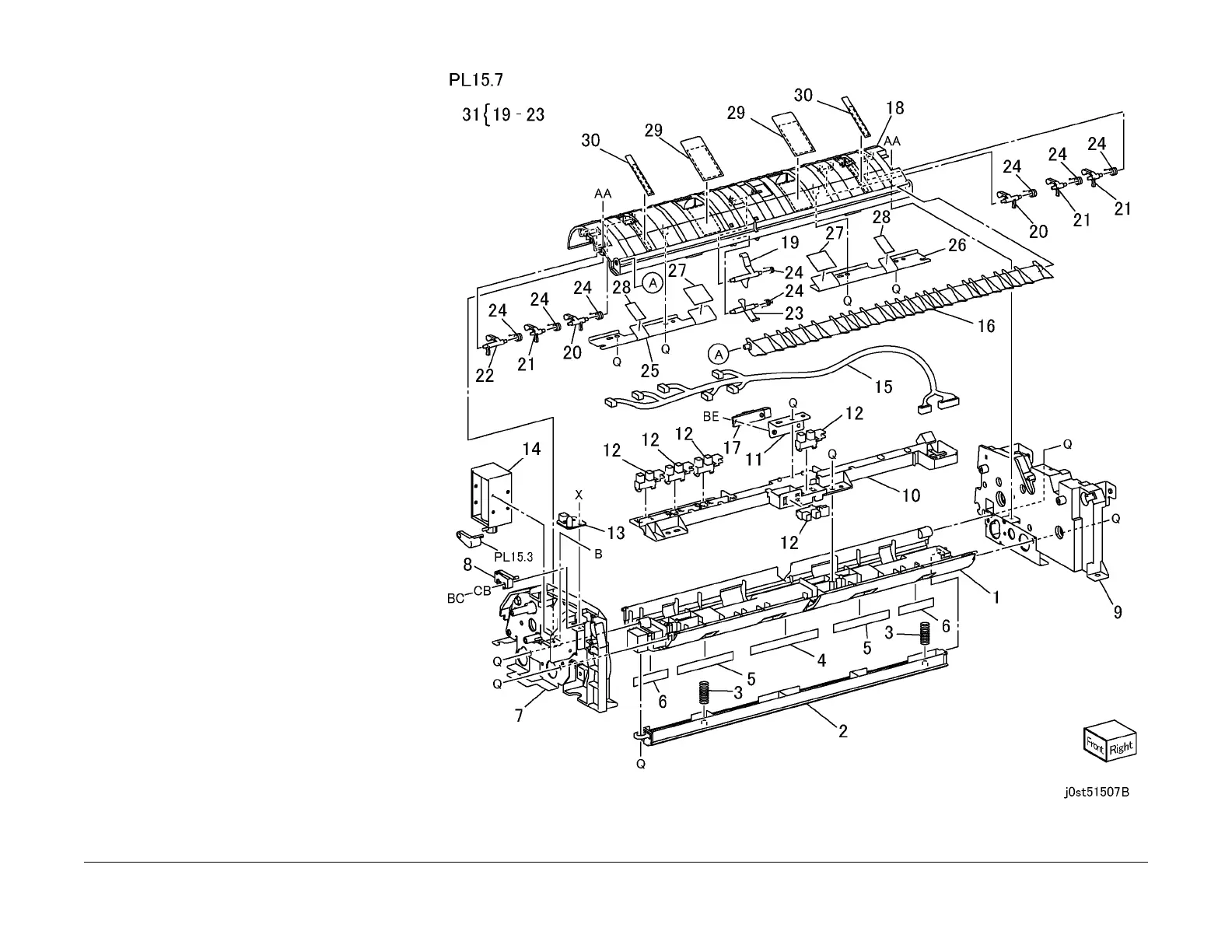

PL 15.7 DADF Feeder-Chute
Item Part Description
1 – Lower Chute (P/O PL 15.4 Item 5)
2 – Chute (Scan Position) (P/O PL 15.4
Item 5)
3 – Spring (P/O PL 15.4 Item 5)
4 – Seal (P/O PL 15.4 Item 5)
5 – Seal (P/O PL 15.4 Item 5)
6 – Seal (P/O PL 15.4 Item 5)
7 – Frame (Front) (P/O PL 15.4 Item 5)
8 110K11981 DADF Interlock Switch
9 – Frame (Rear) (P/O PL 15.4 Item 5)
10 – Sensor Guide (P/O PL 15.4 Item 5)
11 – Sensor Bracket (P/O PL 15.4 Item
5)
12 930W00111 DADF APS 1 Sensor, DADF APS 2
Sensor, DADF APS 3 Sensor,
DADF Preregistration Sensor,
DADF Invert Sensor
13 160K97600 DADF Document Set LED
14 121K31912 Exit Nip Release Solenoid
15 962K19722 Wire Harness
16 – Invert Guide (P/O PL 15.4 Item 5)
17 930W00211 Registration Sensor
18 – Feeder Housing (Not Spared)
19 – Actuator (Preregistation) (P/O PL
15.7 Item 31)
20 – Actuator (APS 1) (P/O PL 15.7 Item
31)
21 – Actuator (APS 2) (P/O PL 15.7 Item
31)
22 – Actuator (APS3) (P/O PL 15.7 Item
31)
23 – Actuator (Invert) (P/O PL 15.7 Item
31)
24 – Spring (P/O PL 15.4 Item 5)
25 – Bracket (Front) (P/O PL 15.4 Item
5)
26 – Bracket (Rear) (P/O PL 15.4 Item
5)
27 – Eliminator (P/O PL 15.4 Item 5)
28 – Eliminator (P/O PL 15.4 Item 5)
29 – Seal (P/O PL 15.4 Item 5)
30 – Seal (P/O PL 15.4 Item 5)
31 604K20770 Actuator Kit

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
