February, 2008
4-163
WorkCentre 5225, 5230
REP 16.3.2
Repairs and Adjustments
Launch Version
3. Disconnect the Booklet Maker Assembly from the SB Finisher.
a. Remove the Connector Cover. (Figure 2)

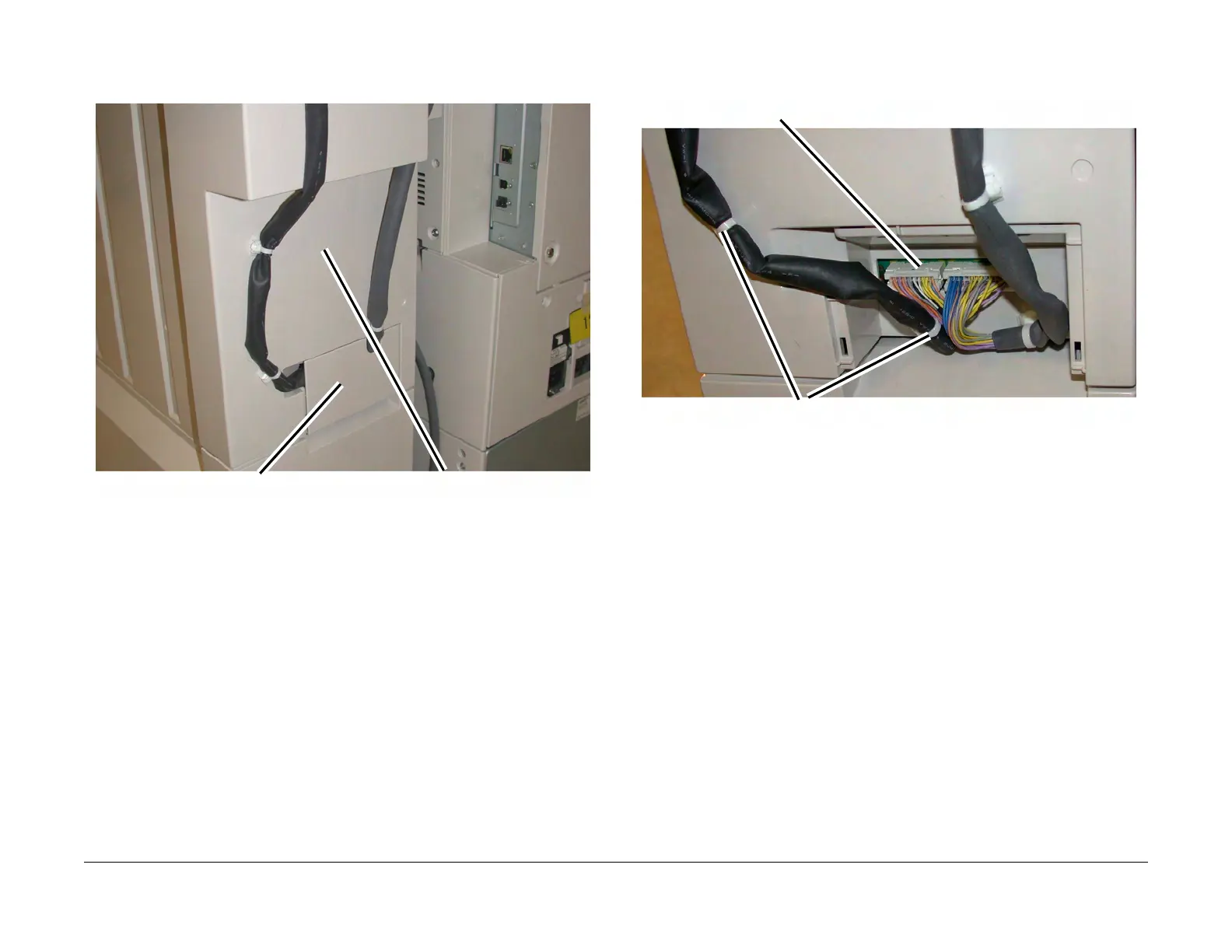

Figure 2 Connector Cover (j0st41666)
b. Disconnect the Connector. (Figure 3)
c. Pull out the Cable Ties (4).
Figure 3 Disconnecting the Booklet Maker Assembly (j0st41667)
Connector Cover
SB Finisher
Connector
Cable Tie (4)
To Next Page
