February, 2008
5-74
WorkCentre 5225, 5230
PL 18.5
Launch Version
Parts List

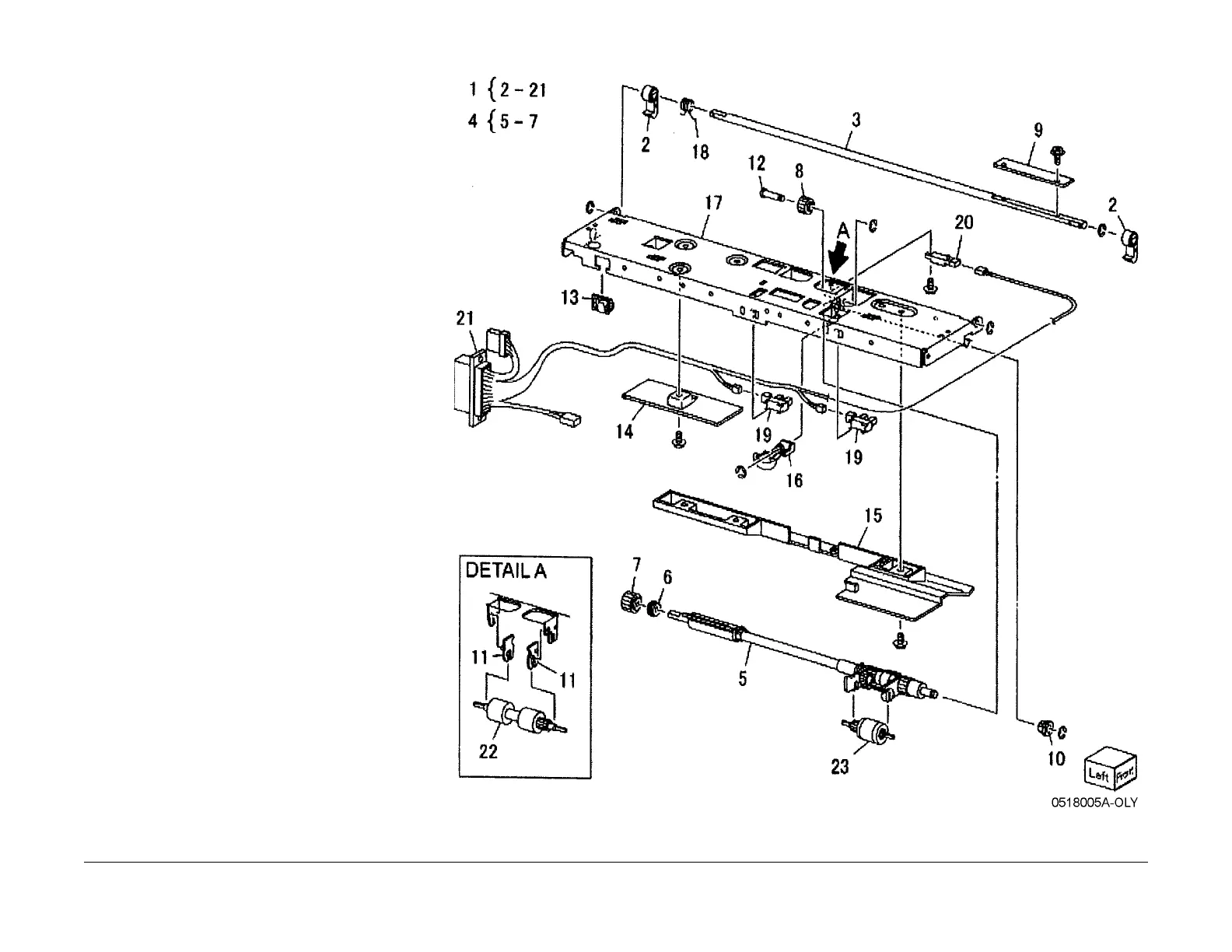

PL 18.5 HCF Feeder (2 of 3)
Item Part Description
1 – Upper Feeder Assembly (P/O PL
18.4 Item 10)
2 003E59570 Latch
3 – Shaft Latch (P/O PL 18.5 Item 1)
4 006K23123 Feed Shaft Assembly
5 – Feed Shaft (P/O PL 18.5 Item 4)
(REP 7.3.6)
6 413W66250 Ball Bearing
7 – Gear (20T) (P/O PL 18.5 Item 4)
8 007E78180 Feed Gear (25T)
9 – Lever (P/O PL 18.5 Item 1)
10 – Bearing (P/O PL 18.5 Item 1)
11 – Spacer (P/O PL 18.5 Item 1)
12 – Pin Drive (P/O PL 18.5 Item 1)
13 –Guide
14 – Rear Upper Chute (P/O PL 18.5
Item 1)
15 – Upper Chute (P/O PL 18.5 Item 1)
16 120E21900 Actuator
17 – Upper Frame (P/O PL 18.5 Item 1)
18 – Spring (P/O PL 18.5 Item 1)
19 930W00112 HCF Stack Height Sensor, HCF
Paper Sensor
20 930W00211 HCF Pre Feed Sensor
21 – Wire Harness (P/O PL 18.5 Item 1)
22 059K26691 Feed Roll (REP 7.3.5)
23 059K26701 Nudger Roll (REP 7.3.5)
To Next Page
