Xerox WorkCentre 5230

February, 2008
4-126
WorkCentre 5225, 5230
REP 15.8.1
Launch Version
Repairs and Adjustments

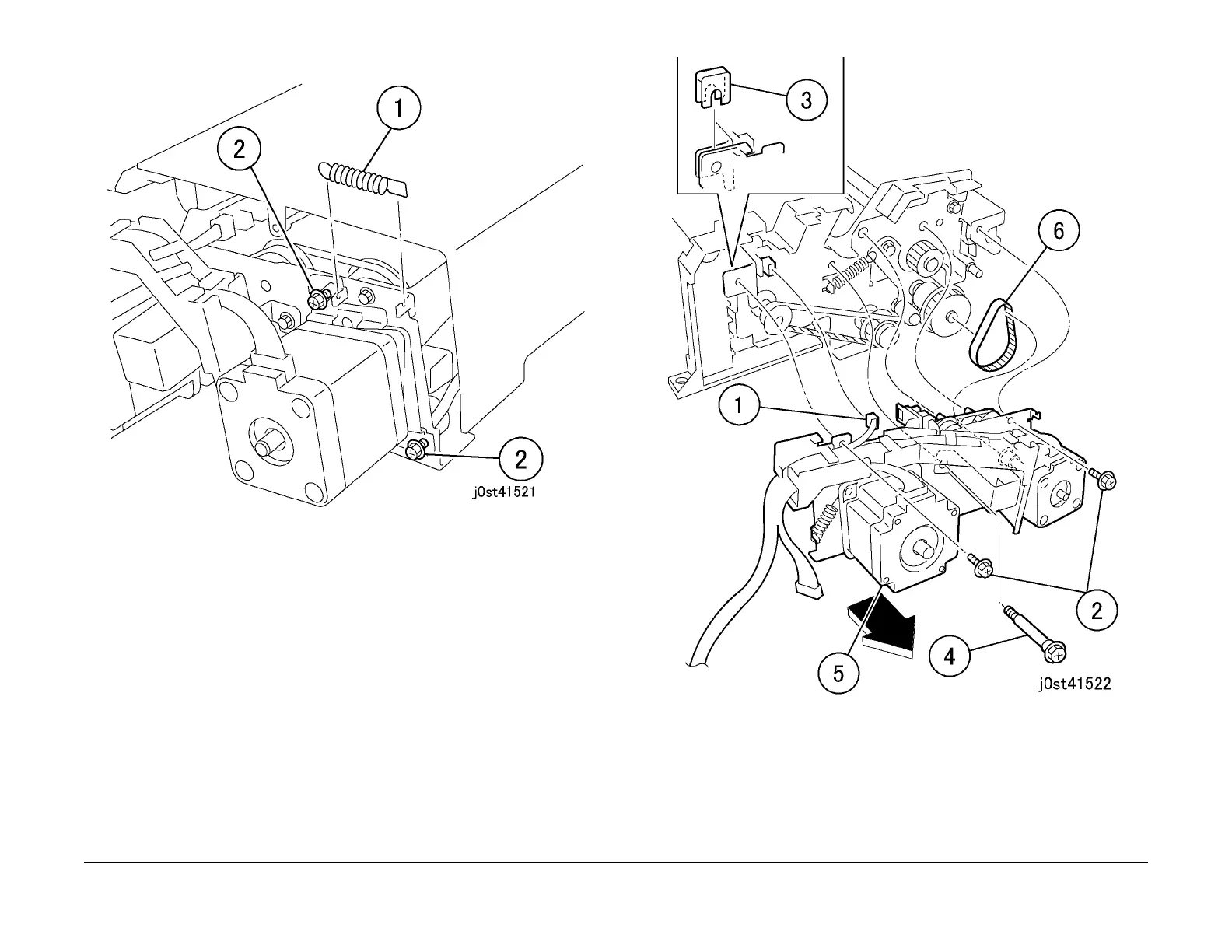

Figure 1 Loosening the belt tension
7. Move the motor unit. (Figure 2)
1. Disconnect the connector.
2. Remove the screws (3).
3. Remove the guide.
4. Remove the Stud Screw.
5. Move the motor unit.
6. Remove the belt.
Figure 2 Moving the motor unit
8. Open the chute.
9. Remove the Feed Guide. (Figure 3)
1. Remove the screws (2).
2. Remove the Feed Guide.
