February, 2008
4-110
WorkCentre 5225, 5230
REP 15.3.1
Launch Version
Repairs and Adjustments
REP 15.3.1 DADF PWB
Parts List on PL 15.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the DADF Rear Cover. (REP 15.2.4)
2. Disconnect the DADF PWB connectors. (Figure 1)
1. Disconnect the connectors (13).

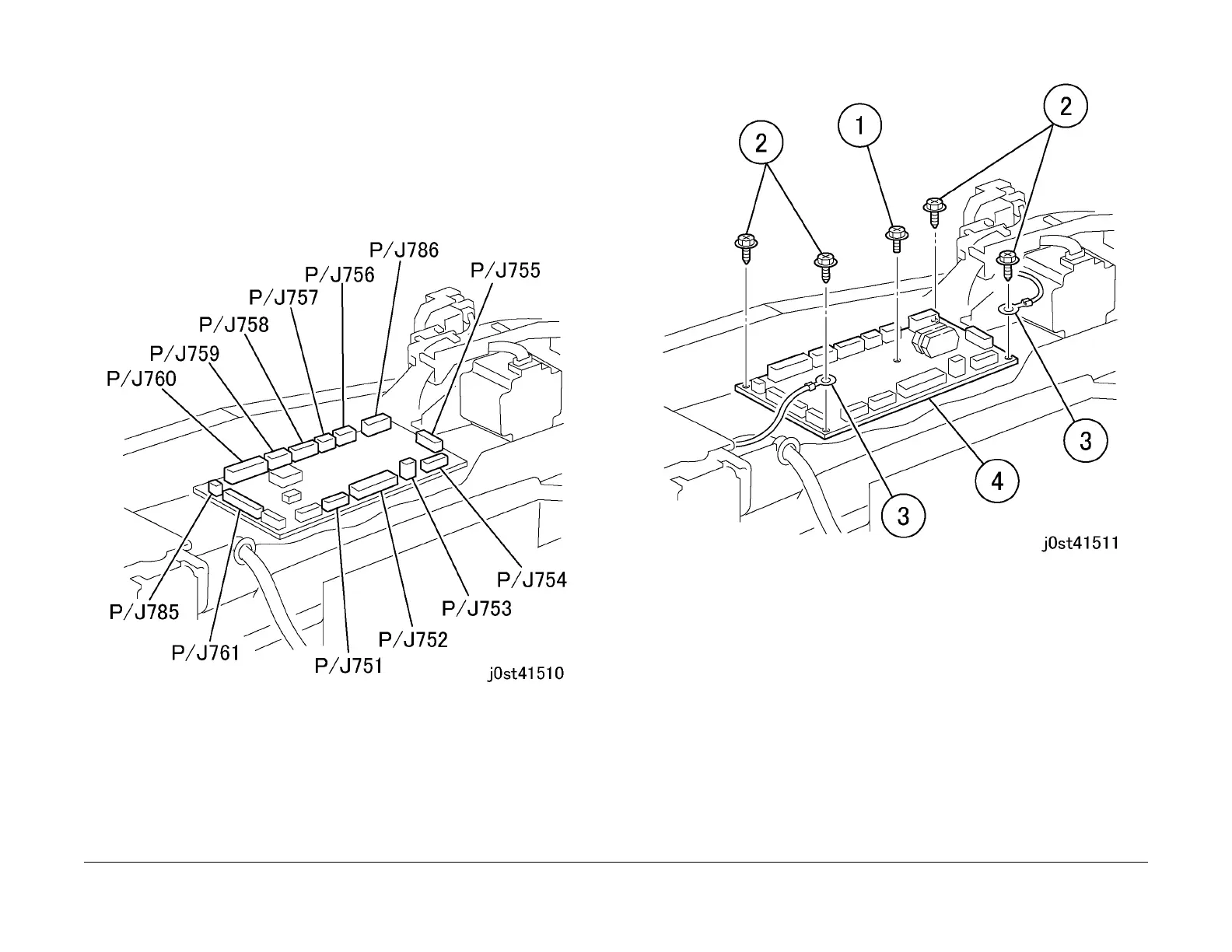

Figure 1 Disconnecting the DADF PWB connectors
3. Remove the DADF PWB. (Figure 2)
1. Remove the screw (1).
2. Remove the Tapping Screws (4).
3. Remove the Earth Wires (x2).
4. Remove the DADF PWB.
Figure 2 Removing the DADF PWB
Replacement
1. To install, carry out the removal steps in reverse order.
2. Check the S/W version and upgrade if necessary.
