February, 2008
5-43
WorkCentre 5225, 5230
PL 12.1
Parts List
Launch Version

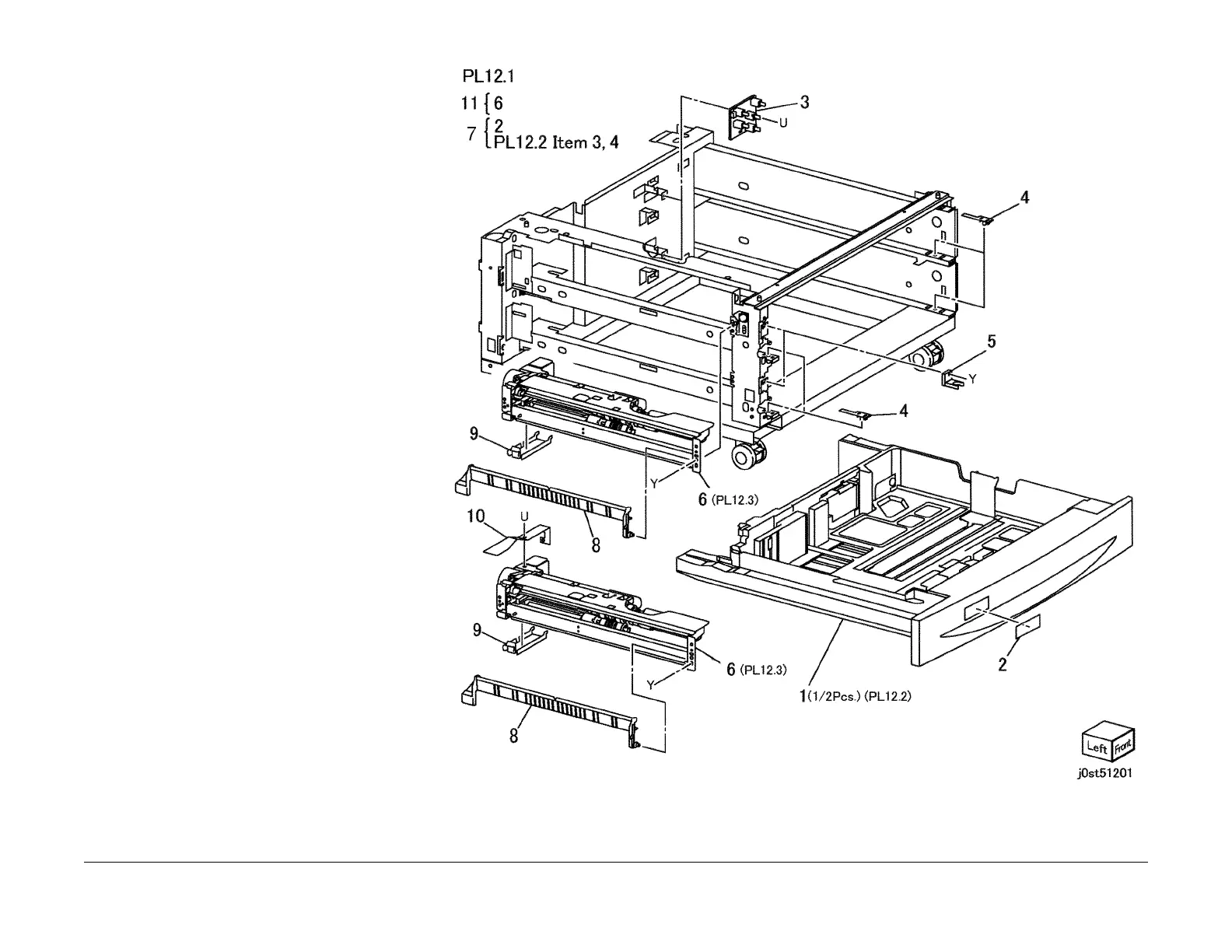

PL 12.1 Tray, Feeder Assembly-2 Tray
Item Part Description
1 050K53945 Tray 3/4 Assembly
2 – Label (No. 3), Label (No. 4) (P/O PL
12.1 Item 7)
3 110K12100 Tray 3/4 Paper Size Switch
4 014E51110 Tray Spacer
5 003E61510 Tray Stopper
6 – Tray 3 Feeder, Tray 4 Feeder (P/O
PL 12.1 Item 11)
7 604K20550 Tray Label Kit
8 054E22622 Feed Out Chute
9 – Sensor Cover (Not Spared)
10 – Cover (Not Spared)
11 – Tray 3/4 Feeder Kit
