February, 2008
4-42
WorkCentre 5225, 5230
REP 7.3.4
Launch Version
Repairs and Adjustments

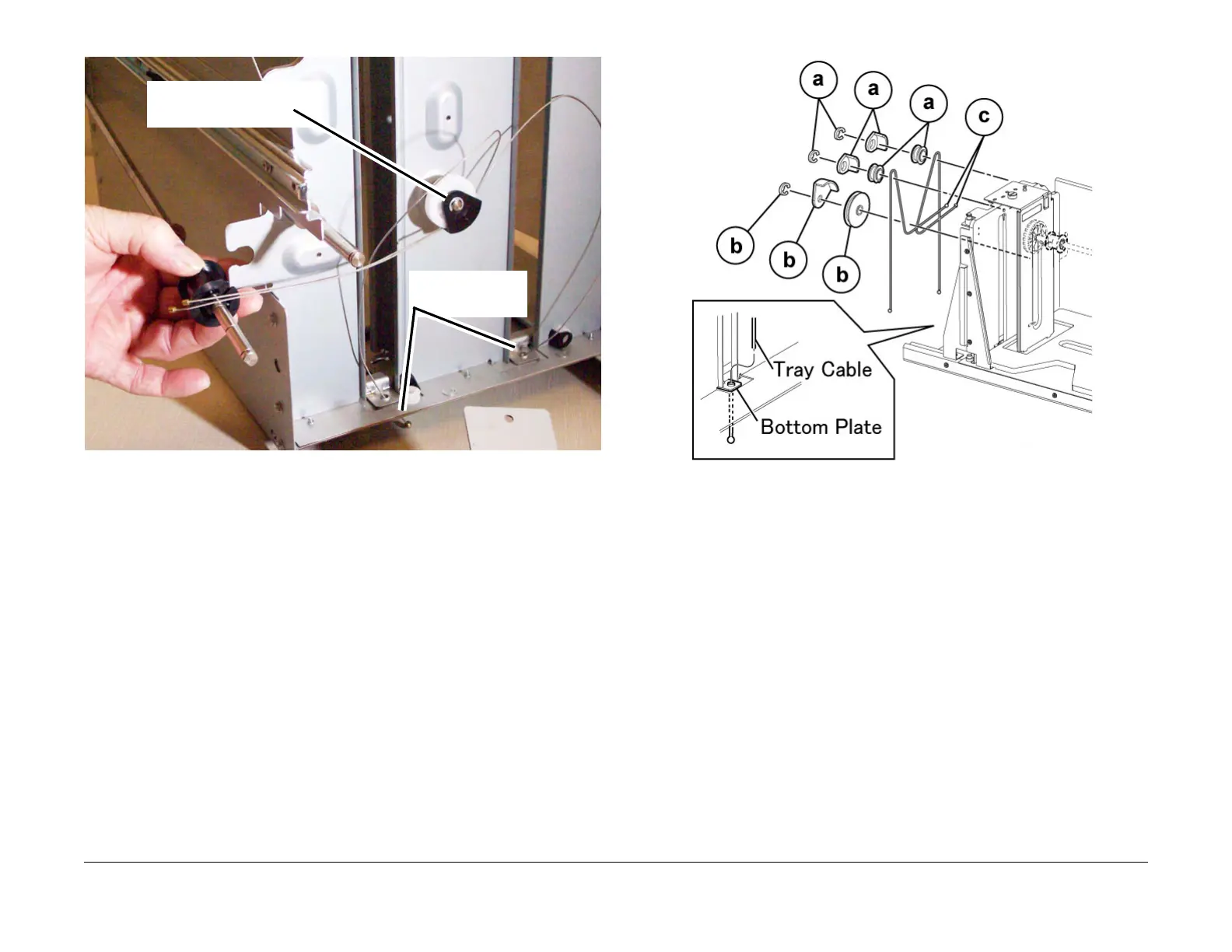

Figure 5 Removing the Rear Tray Cables
Figure 6 Rear Tray Cable details
PART II Removing the HCF Front Tray Cables
1. Remove the HCF Tray (REP 7.3.1)
2. Remove the (5) screws securing the HCF Tray’s Front Cover.
3. At the front of the HCF Tray, begin to free up movement of the front Tray Cable Pulley.
(Figure 7)
a. Remove the E-Ring on the Lift Shaft.
b. Slide the bearing to the rear on the Lift Shaft.
c. Front Tray Cable Pulley
NOTE: You will not be able to release the cable ends from underneath the Tray
Cable Pulley until you perform the next step, which puts slack in the cable enabling
the Lift Shaft to be disengaged from its bracket, and the Tray Cable Pulley moved
farther to the right releasing the cable ends.
1
Remove the E-Ring (1), Wire
Guide (1), and Pulley (1)
2
Remove the Cables
To Next Page
