Xerox WorkCentre 5230

February, 2008
5-102
WorkCentre 5225, 5230
PL 23.15
Launch Version
Parts List

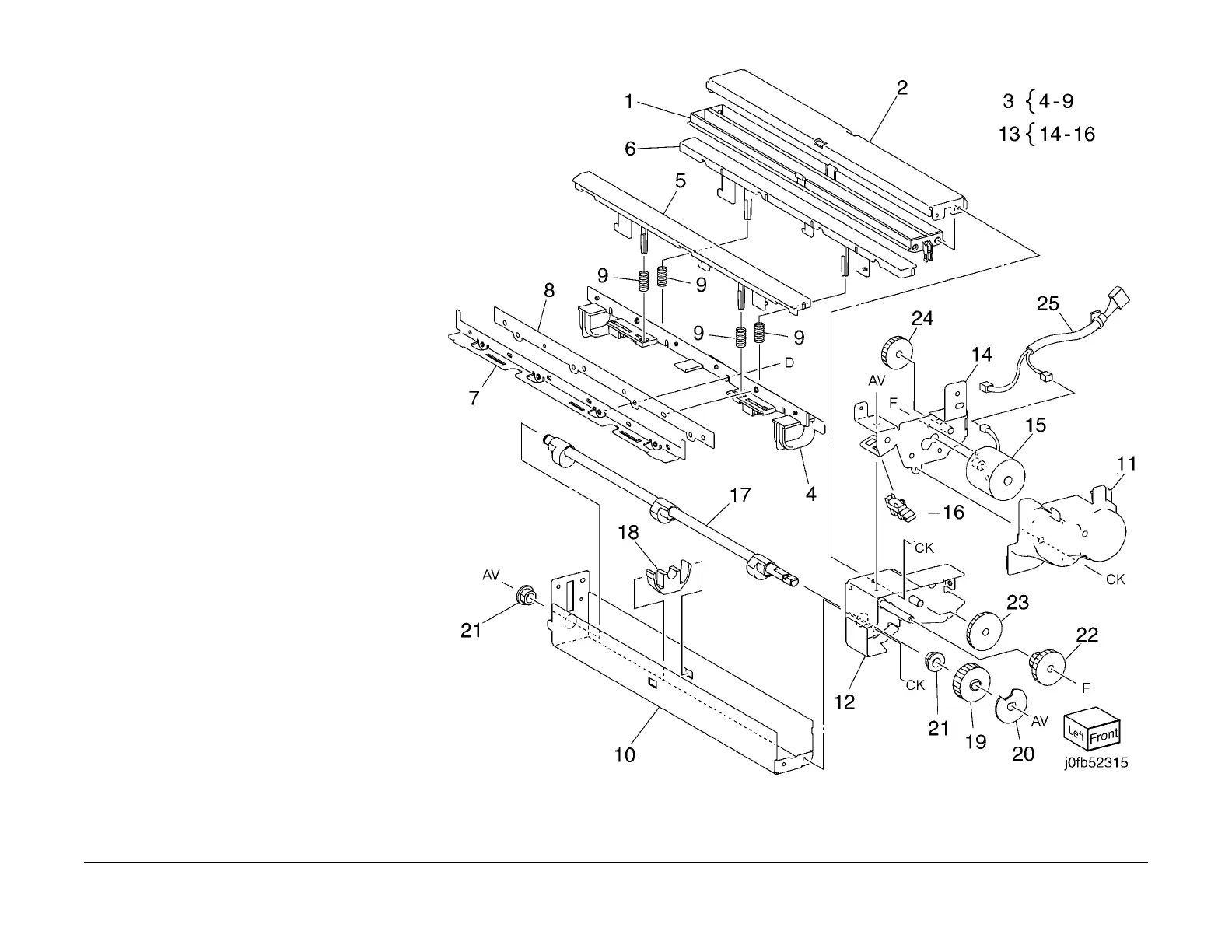

PL 23.15 Folder Assembly
Item Part Description
1 – Upper Chute (P/O PL 23.14 Item
21)
2 – Upper Plate (P/O PL 23.14 Item 21)
3 – Knife Assembly (P/O PL 23.14 Item
21)
4 – Blade Holder (P/O PL 23.15 Item 3)
5 – Lower Holder 1 (P/O PL 23.15 Item
3)
6 – Lower Holder 2 (P/O PL 23.15 Item
3)
7 – Bracket (P/O PL 23.15 Item 3)
8 – Blade (P/O PL 23.15 Item 3)
9 – Spring (P/O PL 23.14 Item 2)
10 – Frame (P/O PL 23.14 Item 21)
11 – Front Cover (P/O PL 23.14 Item 21)
12 – Bracket (P/O PL 23.14 Item 21)
13 – Folder Knife Motor Assembly (P/O
PL 23.14 Item 21)
14 – Motor Bracket (P/O PL 23.15 Item
13)
15 – Folder Knife Motor (P/O PL 23.15
Item 13)
16 – Folder Home Sensor (P/O PL 23.15
Item 13)
17 – Cam Shaft Assembly (P/O PL
23.14 Item 21)
18 – Guide (P/O PL 23.14 Item 21)
19 – Gear (T28/T8) (P/O PL 23.14 Item
21)
20 – Encoder (P/O PL 23.14 Item 21)
21 – Bearing (P/O PL 23.14 Item 21)
22 – Gear (T12/T27) (P/O PL 23.14 Item
21)
23 – Gear (T12/T30) (P/O PL 23.14 Item
21)
24 – Gear (T12/T51) (P/O PL 23.14 Item
21)
25 – Wire Harness (P/O PL 23.14 Item
21)
