Xerox WorkCentre 5230

February, 2008
5-77
WorkCentre 5225, 5230
PL 18.8
Parts List
Launch Version

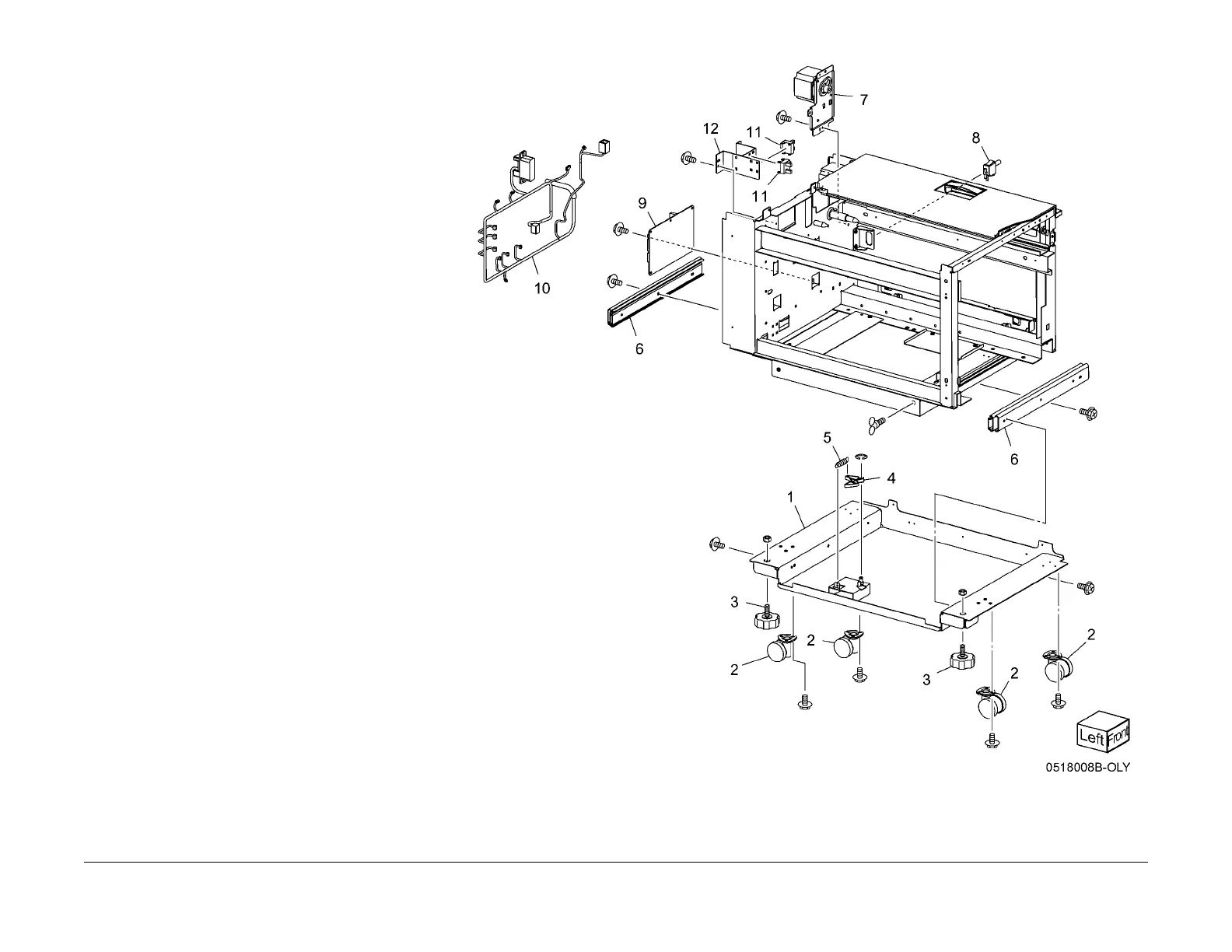

PL 18.8 HCF Electrical and Rail
Item Part Description
1 – Plate (Not Spared)
2 017E92820 Rack Caster (REP 7.3.9)
3 – Foot (Not Spared)
4 – Latch Lever (Not Spared)
5 – Spring (Not Spared)
6 801K15690 Rail
7 127K47150 Takeaway Motor
8 – Docking Interlock Switch
9 960K31491 HCF PWB (REP 7.3.11)
10 – Wire Harness (P/O PL 18.1 Item
16)
11 130K55590 HCF Size Sensor R and L
12 – Bracket (P/O PL 18.1 Item 16)
