Xerox WorkCentre 5230 User Manual

February, 2008
4-178
WorkCentre 5225, 5230
REP 22.3.2
Launch Version
Repairs and Adjustments
7. Remove the Sub Paddle Solenoid Assembly. (Figure 2)
(1)Disconnect Connector.
(2)Release wires from Hooks.
(3)Remove Screws (2).
(4)Remove Sub Paddle Solenoid Assembly.

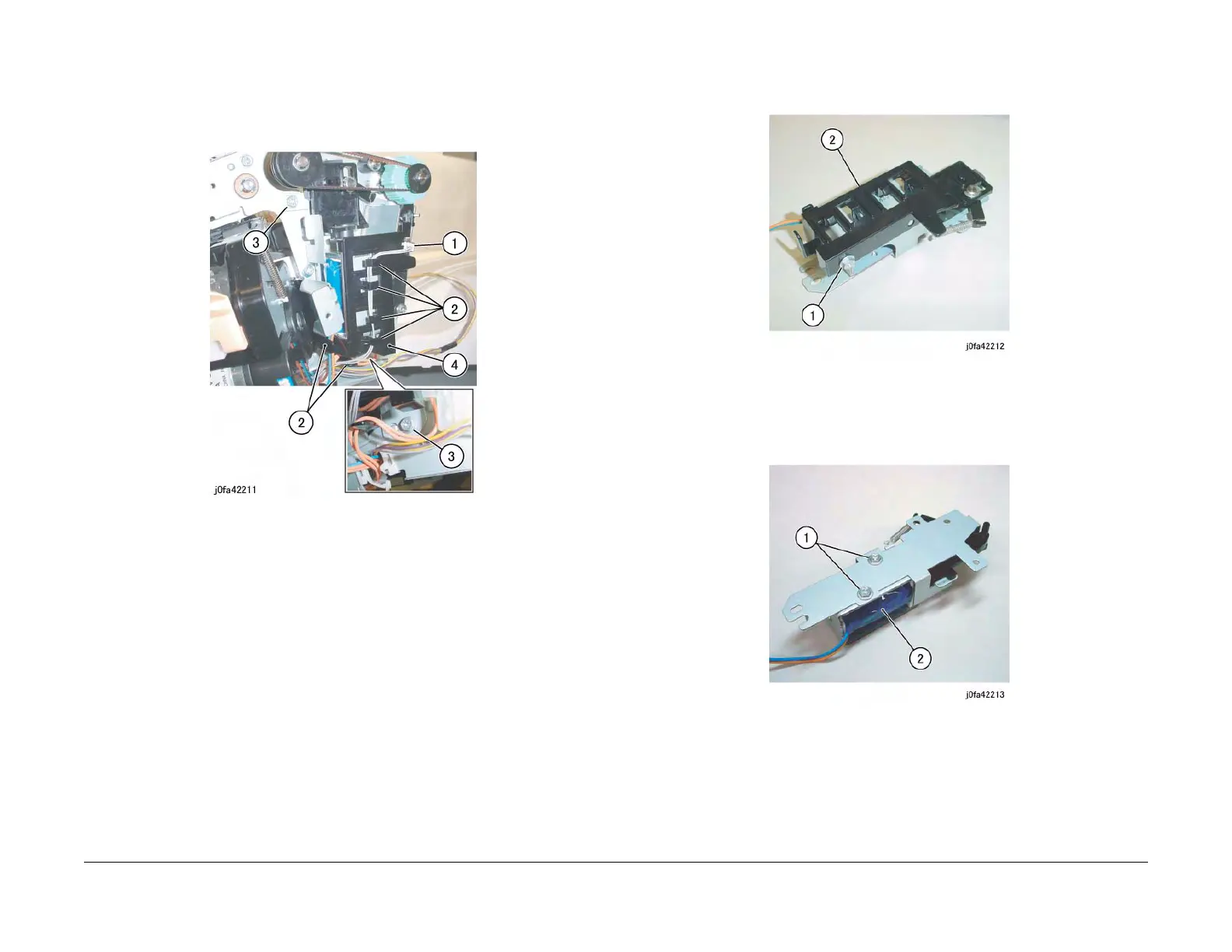

Figure 2 Removing the Sub Paddle Solenoid Assembly (j0fa42211)
8. Remove the Support. (Figure 3)
(1)Remove Screw.
(2)Remove Support.
Figure 3 Removing the Support (j0fa42212)
9. Remove the Sub Paddle Solenoid. (Figure 4)
(1)Remove Screws (2).
(2)Remove the Sub Paddle Solenoid.
Figure 4 Removing the Sub Paddle Solenoid (j0fa42213)
