Xerox WorkCentre 5230

February, 2008
5-101
WorkCentre 5225, 5230
PL 23.14
Parts List
Launch Version

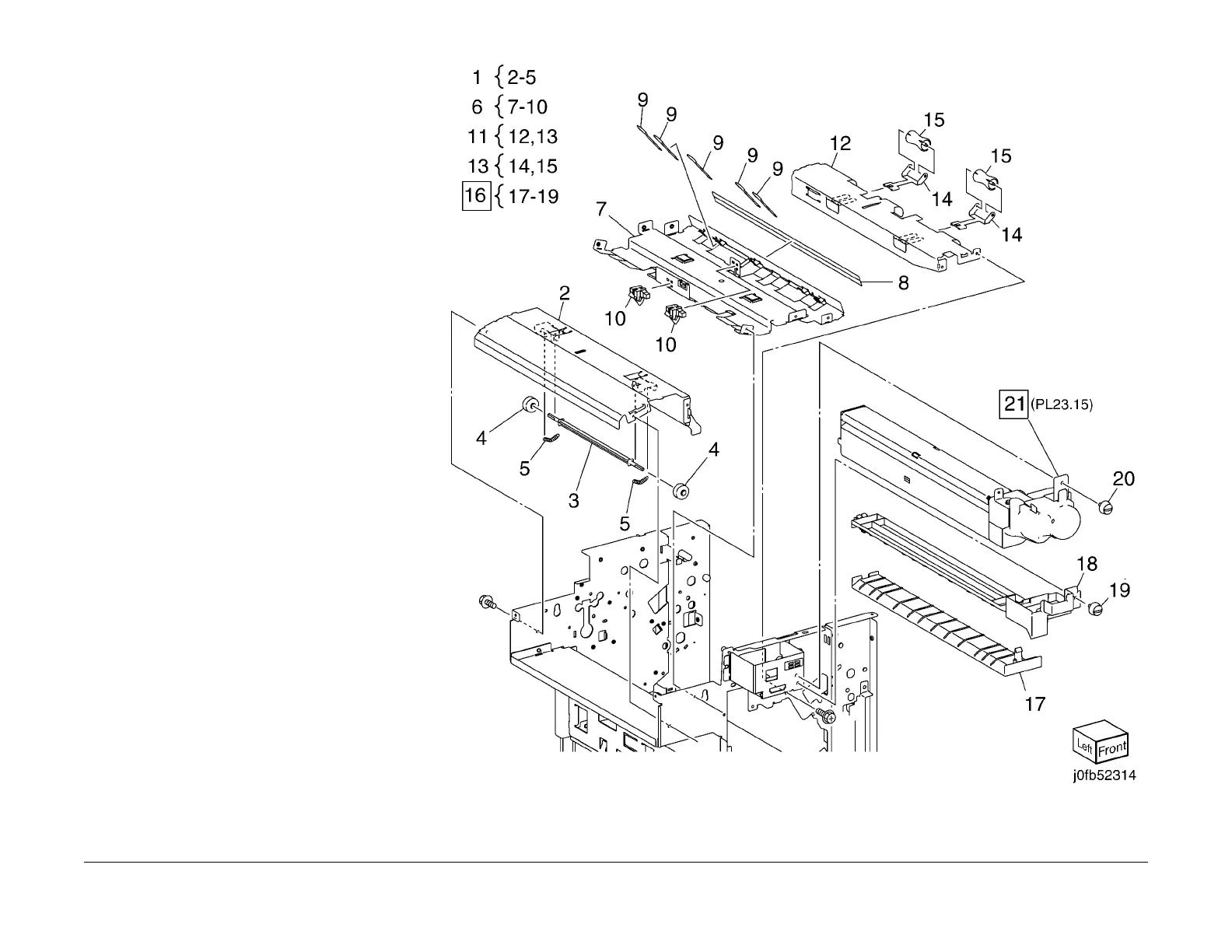

PL 23.14 Finisher Exit/Folder
Assembly
Item Part Description
1 – Lower Chute Assembly (Not
Spared)
2 – Lower Chute (P/O PL 23.14 Item 1)
3 – Shaft (P/O PL 23.14 Item 1)
4 059E03710 Pinch Roll
5 809E78960 Spring
6 054K35540 Exit Upper Chute Assembly
7 – Exit Upper Chute (P/O PL 23.14
Item 6)
8 105E18000 Static Eliminator
9 – Paper Guide (P/O PL 23.14 Item 6)
10 130K88311 Compiler Exit Sensor, Finisher
Entrance Sensor
11 054K35555 Exit Lower Chute Assembly
12 – Exit Lower Chute (P/O PL 23.14
Item 11)
13 059K56321 Pinch Roll Assembly
14 – Spring (P/O PL 23.14 Item 13)
15 – Pinch Roll (P/O PL 23.14 Item 13)
16 – Chute Assembly (Not Spared)
17 – Lower Chute (P/O PL 23.14 Item
16)
18 – Upper Chute (P/O PL 23.14 Item
16)
19 – Thumb Screw (P/O PL 23.14 Item
16)
20 – Chute Assembly (Not Spared)
21 695K18691 Folder Assembly (Option) (REP
16.2.14)
