WorkCentre 5225, 5230
PL 23.6
Parts List
Launch Version

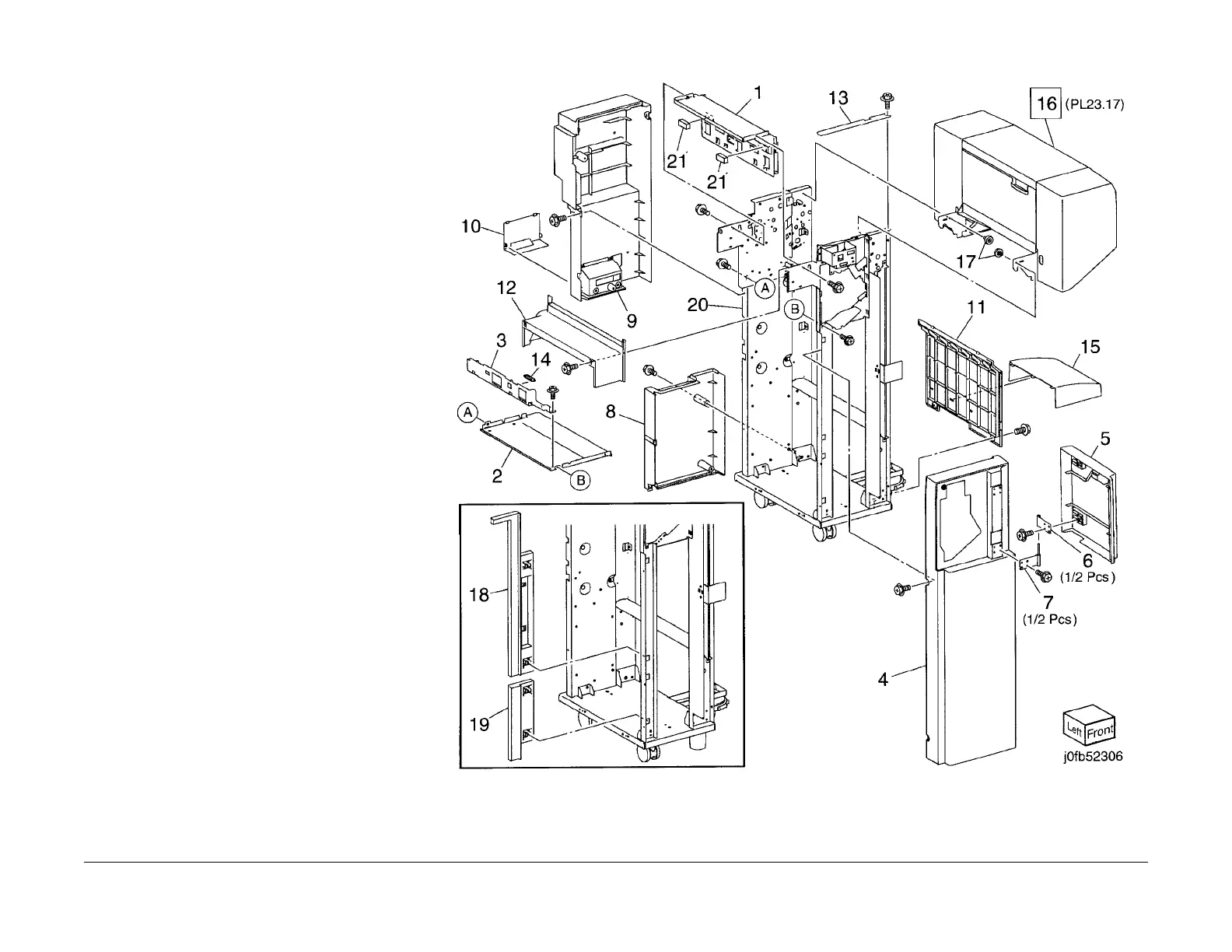

PL 23.6 Finisher Cover
Item Part Description
1 – Plate (Not Spared)
2 – Lower Plate (Not Spared)
3 – Docking Lever
4 848E15190 Front Cover (REP 16.2.2)
5 848K09330 Front Door
6 – Bracket (Not Spared)
7 – Hinge (Not Spared)
8 848E15210 Rear Lower Cover (REP 16.2.4)
9 848E15221 Rear Upper Cover (REP 16.2.3)
10 848E15231 Connector Cover
11 848E15240 Stacker Lower Cover (REP 16.2.7)
12 – LH Cover
13 – Cover (Not Spared)
14 – Spring (Not Spared)
15 848E22450 Foot Cover (REP 16.2.6)
16 801K30700 Booklet Assembly (REP 16.3.2)
17 826E09910 Thumb Screw
18 – Upper Adjust Cover (Not Spared)
19 – Lower Adjust Cover
20 – Base Frame Assembly (Not
Spared)
21 921W41162 Gasket
