February, 2008
4-234
WorkCentre 5225, 5230
ADJ 11.6.1
Launch Version
Repairs and Adjustments

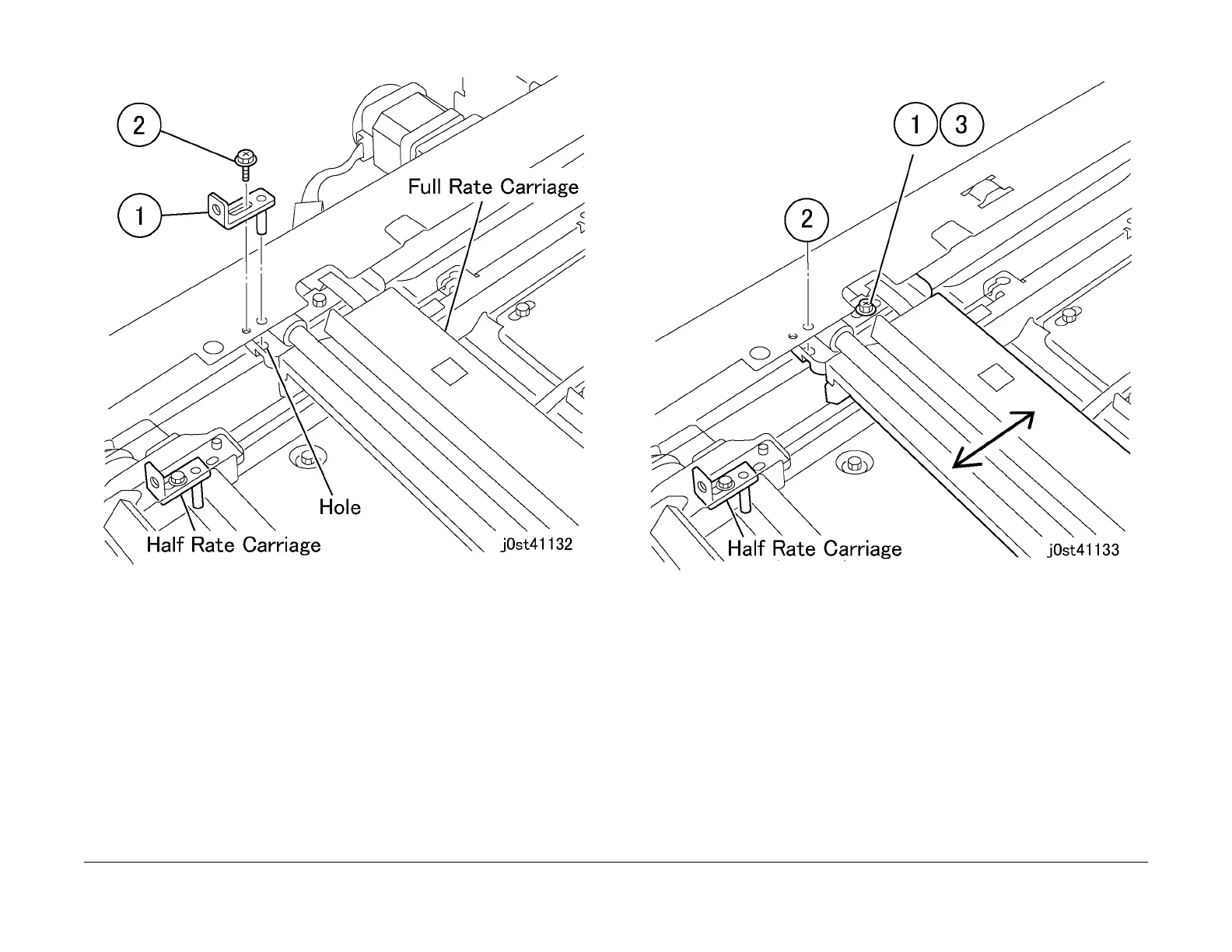

Figure 6 Position Adjustment of Full Rate Carriage 1/2 (j0st41132)
NOTE: Loosen the securing screw of the Carriage Cable and align the tool holes if the
tool holes of the frame and the Full Rate Carriage are not aligned, and the tool is not fixed
in place. (Figure 7)
1. Loosen the screw.
2. Move the Full Rate Carriage until the tool hole aligns.
3. Tighten the screw.
Figure 7 Position Adjustment of Full Rate Carriage 2/2 (j0st41133)
8. When adjusting the front position of Full Rate Carriage, move the tool for Half Rate Car-
riage to the front of Full Rate Carriage before doing the adjustment.
At this time the rear tool for Full Rate Carriage remains installed.
To Next Page
