Figure 9 Releasing the Cable ends from the Lift Shaft
3. Removing the Front Tray Cables. (Figure 10, Figure 11)
a. Remove (1) E-Ring, (1) Wire Guide, and (1) Pulley.
b. Disengage the Tray Cable from the Bottom Plate in 2 places and remove the Tray
Cable.

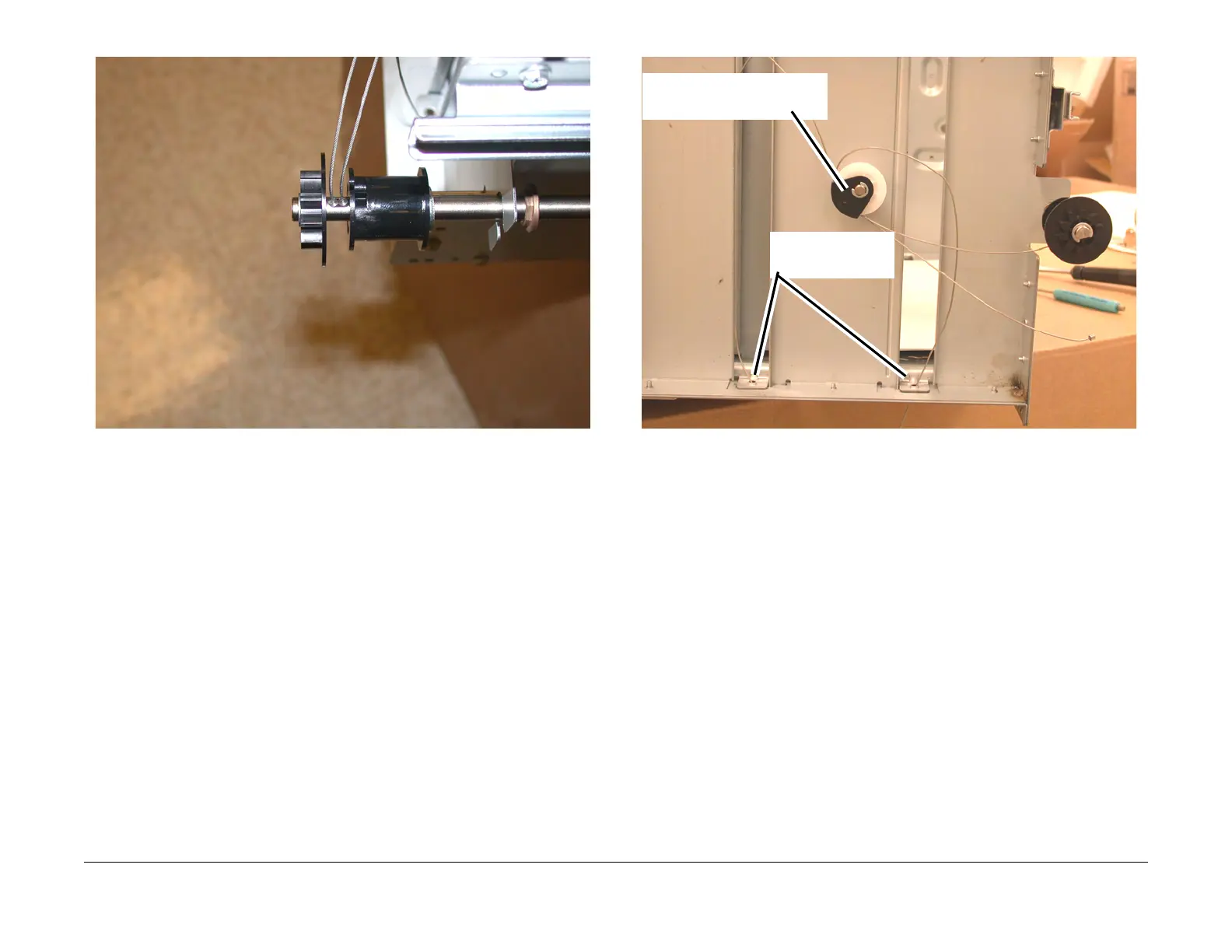

Figure 10 Removing the front Tray Cables
1
Remove the E-Ring (1), Wire
guide (1), and Pulley (1)
2
Remove the Cables
