Xerox WorkCentre 5230

February, 2008
5-79
WorkCentre 5225, 5230
PL 22.2
Parts List
Launch Version

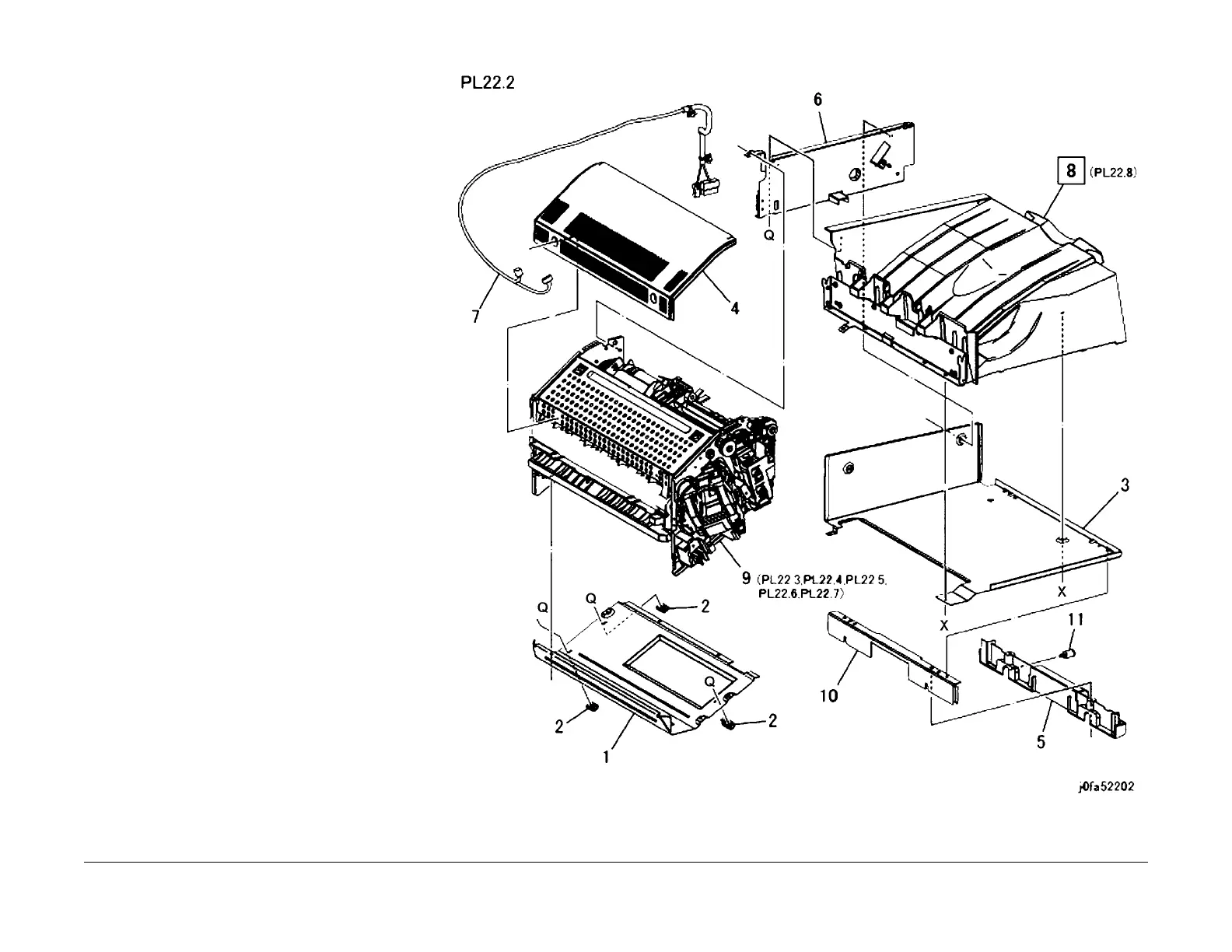

PL 22.2 Finisher Assembly (Part 2 of
2)
Item Part Description
1 – Bottom Cover (Not Spared)
2 – Spacer (Not Spared)
3 – Tray Cover (Not Spared)
4 848E26250 Left Cover
5 068K58981 Tray Support
6 – Rear Bracket (Not Spared)
7 962K42291 Wire Harness
8 050K61270 Stacker Tray Assembly (REP
22.8.1)
9 – Stacker Base Assembly (Not
Spared)
10 050K62810 Extended Tray Assembly
11 – Screw (Not Spared)
