WorkCentre 5225, 5230
PL 13.1
Launch Version
Parts List

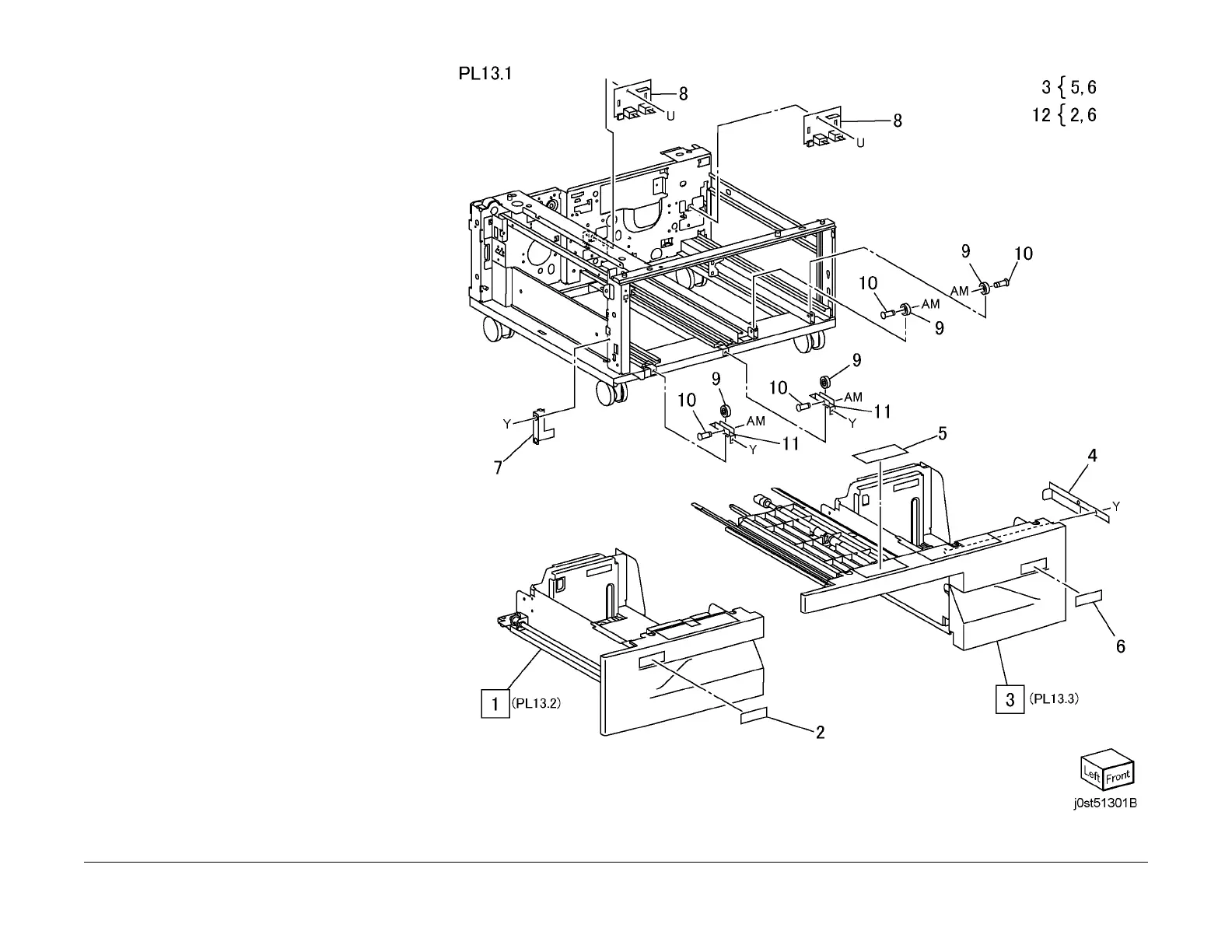

PL 13.1 Tray 3/4 Assembly-Tandem
Item Part Description
1 050K53962 Tray 3 Assembly (REP 13.1.1)
2 – Label (3) (P/O PL 13.1 Item 12)
3 050K53952 Tray 4 Assembly (REP 13.1.2)
4 – Tray 4 Stopper (P/O PL 13.1 Item
3)
5 – Label (P/O PL 13.1 Item 3)
6 – Label (4) (Not Spared)
7 – Tray 3 Stopper (Not Spared)
8 110K11820 Tray 3/4 Paper Size Switch
9 059E98210 Roll
10 – Shaft (Not Spared)
11 – Bracket (Not Spared)
12 604K20550 Tray Label Kit
