Xerox WorkCentre 5230

February, 2008
5-89
WorkCentre 5225, 5230
PL 23.2
Parts List
Launch Version

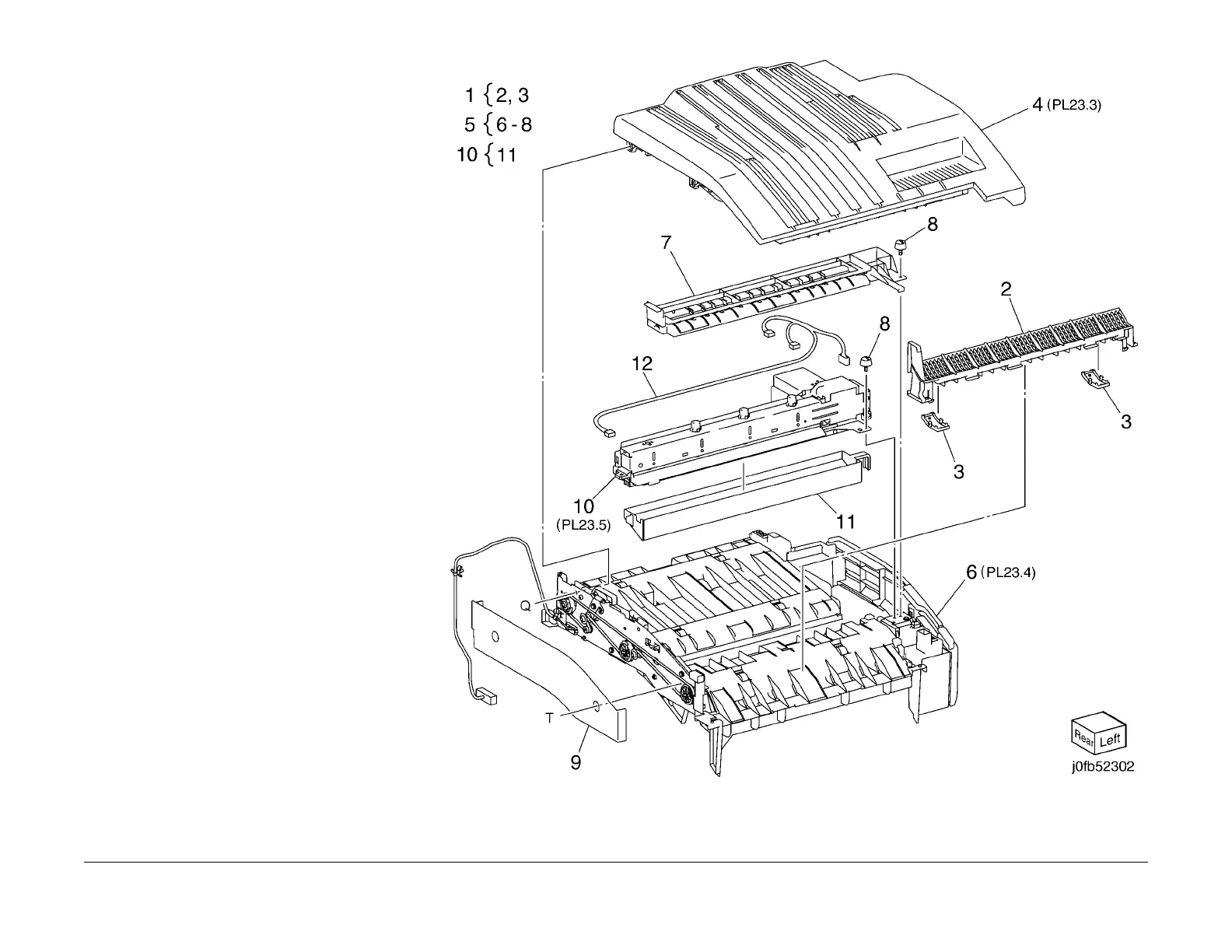

PL 23.2 H - Transport Assembly (2 of
5)
Item Part Description
1 848K09313 Left Cover Assembly
2 848K09340 Left Cover
3 038E36420 Paper Guide
4 848K09320 Top Over Assembly
5 – Lower Chute Assembly (P/O PL
23.1 Item 1)
6 – Lower Chute Assembly (P/O PL
23.2 Item 5)
7 054K35261 Chute Assembly
8 026K81200 Thumb Screw
9 848E15160 Rear Cover
10 180K00390 Punch Assembly (2/3 Hole) (REP
16.1.2)
– 180K00400 Punch Assembly (2/4 Hole) (REP
16.1.2)
11 – Dust Box (P/O PL 23.2 Item 10)
12 – Wire Harness (Not Spared)
