Xerox WorkCentre 5230 User Manual

February, 2008
5-84
WorkCentre 5225, 5230
PL 22.7
Launch Version
Parts List

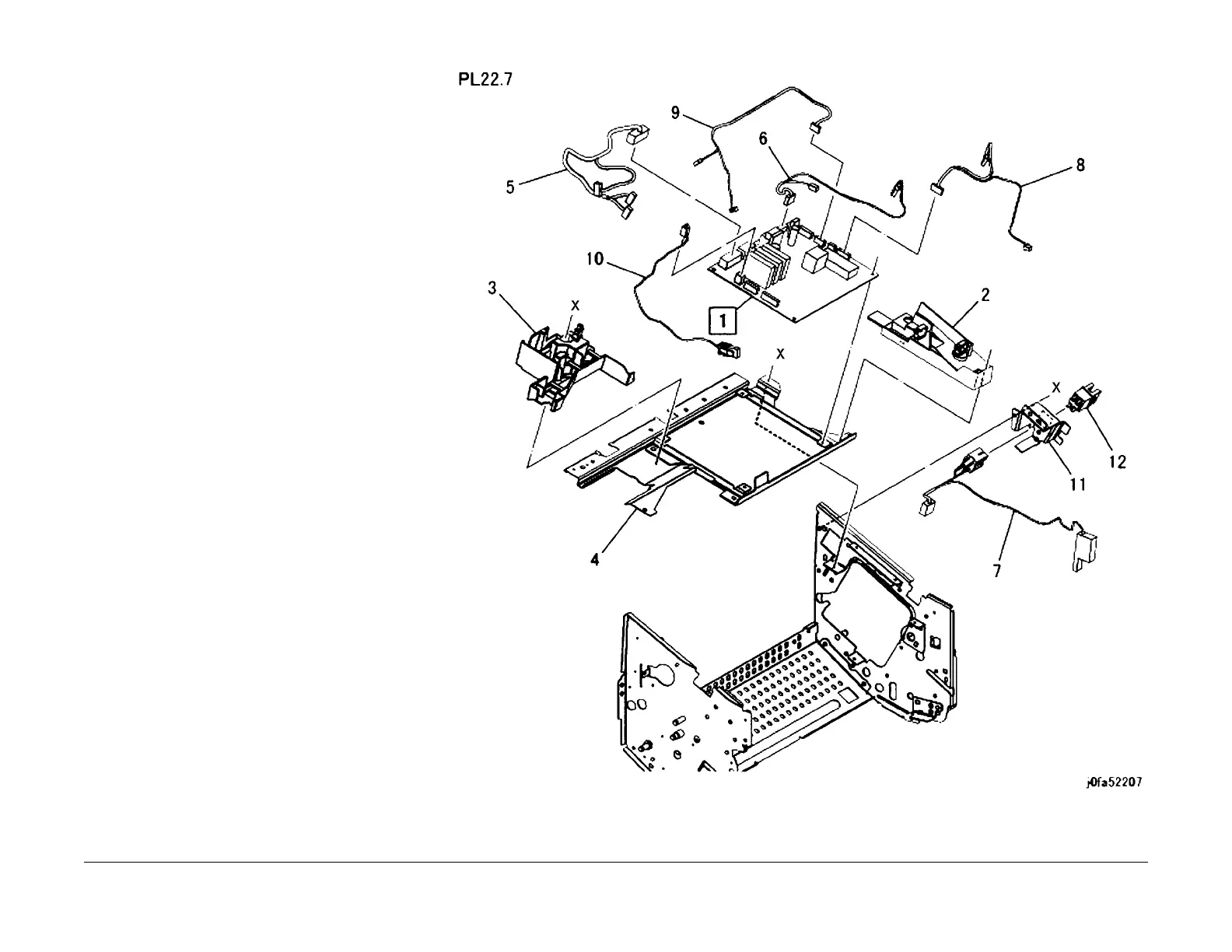

PL 22.7 Stacker Base Assembly (Part
5 of 5)
Item Part Description
1 960K38285 Finisher PWB (REP 22.7.1)
2 055K30850 Connector Bracket
3 – Harness Guide (Not Spared)
4 – PWB Bracket (Not Spared)
5 – Wire Harness (Drive) (Not Spared)
6 – Wire Harness (Stapler) (Not
Spared)
7 – Wire Harness (Interlock) (Not
Spared)
8 – Wire Harness (Front Sensor) (Not
Spared)
9 – Wire Harness (Compile) (Not
Spared)
10 – Wire Harness (Stacker) (Not
Spared)
11 – Bracket (Not Spared)
12 110E97990 Finisher Front Interlock Switch
