February, 2008
4-218
WorkCentre 5225, 5230
REP 22.10.3
Launch Version
Repairs and Adjustments
5. Remove the Bottom Plate. (Figure 2)
(1)Release Clamps (5) and remove the wires.
(2)Disconnect Connectors (8).
(3)Remove wires from Hooks (4).
(4)Remove Screws (4).
(5)Remove Bottom Plate.

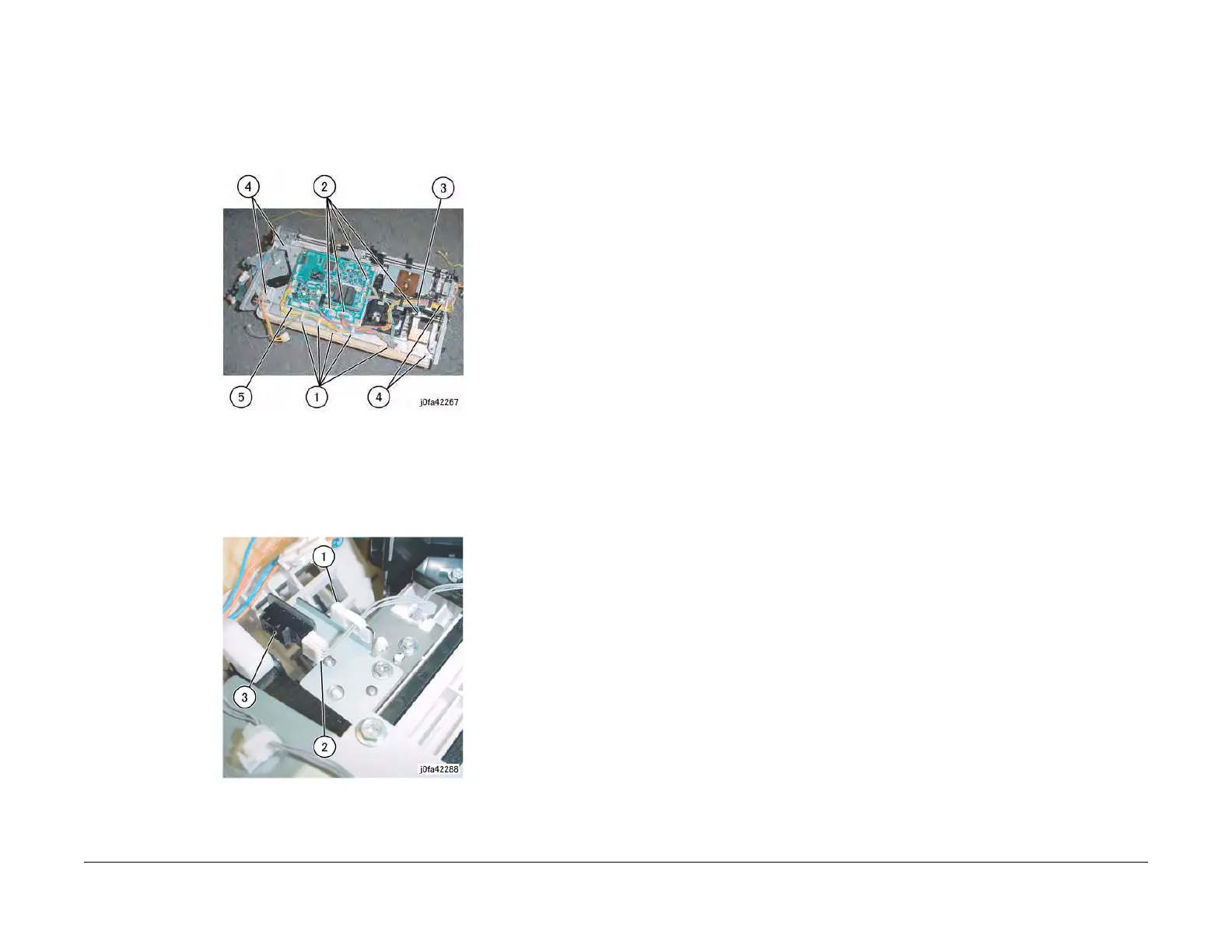

Figure 2 Removing the Bottom Plate (j0fa42267)
6. Remove the Eject Clamp Home Sensor. (Figure 3)
(1)Release Clamp and remove the wires.
(2)Disconnect Connector.
(3)Remove Eject Clamp Home Sensor from the Bracket.
Figure 3 Removing the Eject Clamp Home Sensor (j0fa42288)
Replacement
1. Reverse the removal procedure for replacement.
To Next Page
