Xerox WorkCentre 5230 User Manual

February, 2008
4-220
WorkCentre 5225, 5230
REP 22.10.4
Launch Version
Repairs and Adjustments
9. Remove the Bracket Assembly. (Figure 4)
(1)Release Clamps (2) and remove the wires.
(2)Remove Screws (2).
(3)Remove Bracket Assembly.

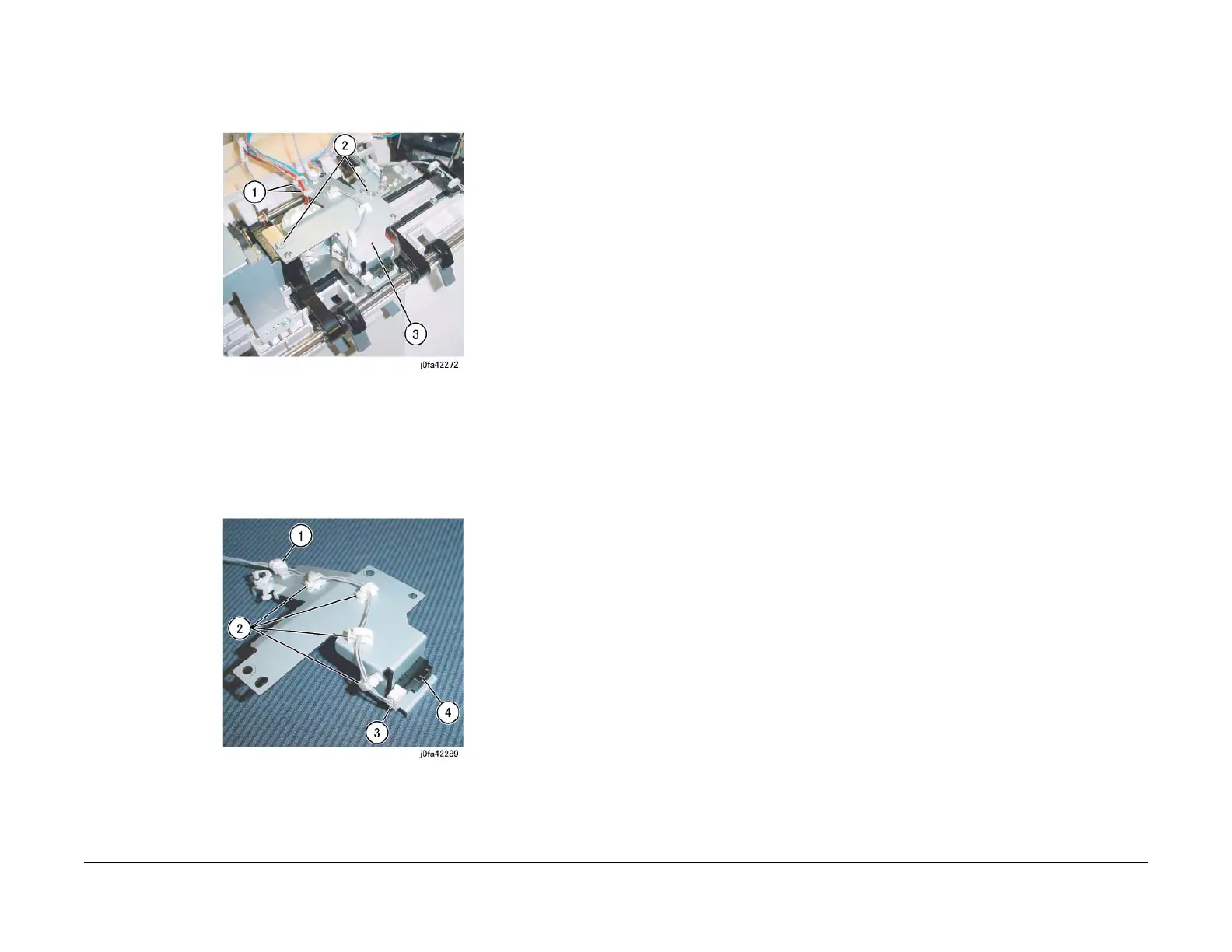

Figure 4 Removing the Bracket Assembly (j0fa42272)
10. Remove the Stack Height Sensor. (Figure 5)
(1)Remove Clamp.
(2)Release Clamps (4) and remove the wires.
(3)Disconnect Connector.
(4)Remove Stack Height Sensor from the bracket.
Figure 5 Removing the Stack Height Sensor (j0fa42289)
Replacement
1. Reverse the removal procedure for replacement.

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
