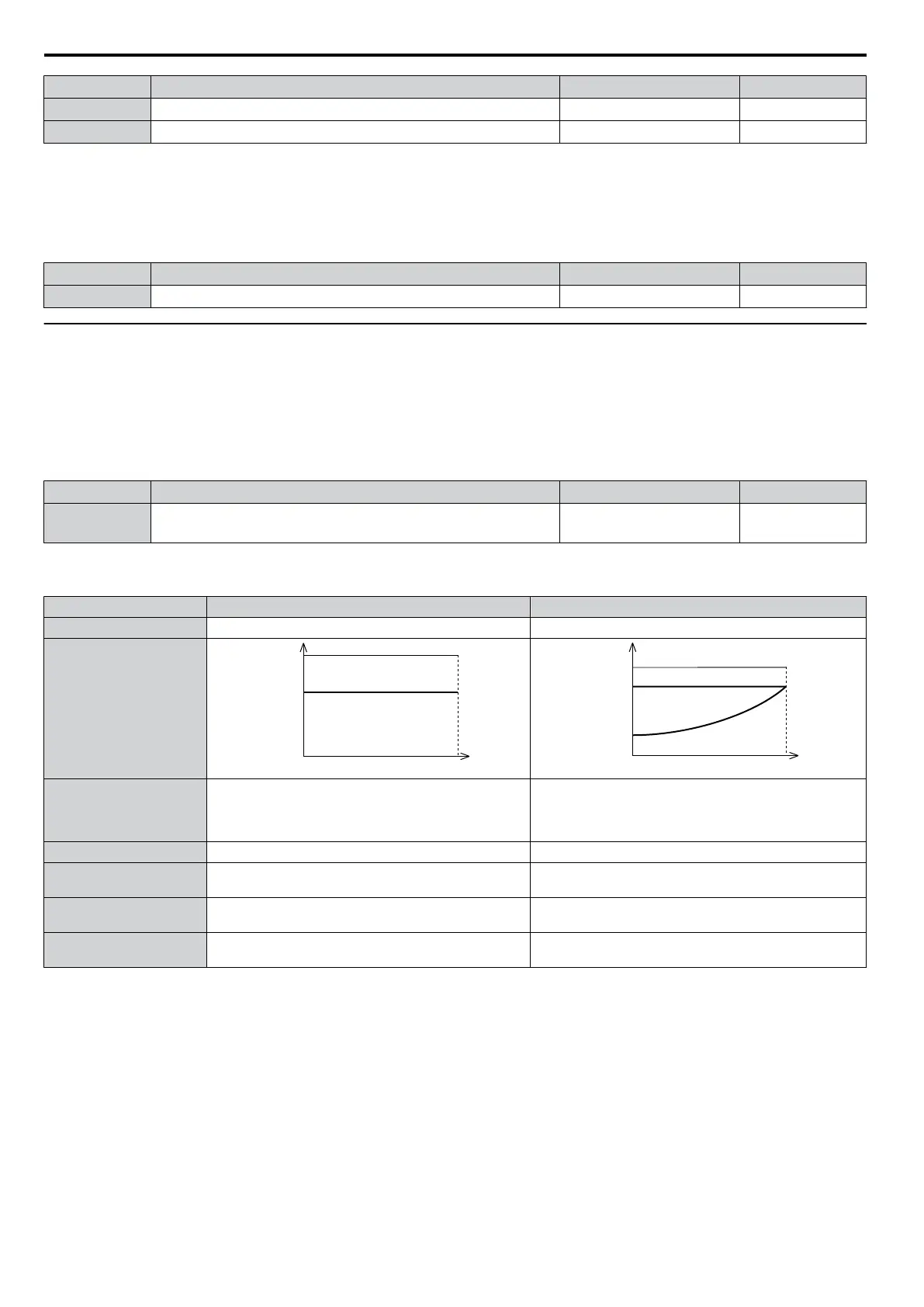

No. Parameter Name Setting Range Default
C5-03 ASR Proportional Gain 2 0.00 to 300.00 0.02
C5-04 ASR Integral Time 2 0.000 to 10.000 s 0.050 s
n
C5-05: ASR Limit
Sets
the ASR output limit as a percentage
of the maximum output frequency (E1-04). If the motor slip is high, the setting
might need to be increased to provide proper slip compensation. Use the ASR output monitor U6-04 to determine if ASR
is working at the limit and make settings if necessary. If ASR is operating at the ASR limit, check the pulse signal and the
pulse input settings prior to changes in C5-05.
No. Parameter Name Setting Range Default
C5-05 ASR Limit 0.0 to 20.0% 5.0%
u
C6: Carrier Frequency
n
C6-01: Drive Duty Selection
The drive has two different duty modes from which to select based on the load characteristics. The drive rated current,
overload capacity, and carrier frequency will change depending upon the duty mode selection. Use parameter C6-01 to
select Heavy Duty (HD) or Normal Duty (ND) for the application. The default setting is ND. Refer to Heavy Duty and
Normal Duty Ratings on page 318 for details about the rated current.
No. Parameter Name Setting Range Default
C6-01 Drive Duty Selection 0 or 1
1
<1>
<1> Model BA0018 does not have a Normal Duty mode. The default setting is 0.
Table 5.11 Differences between Heavy and Normal Duty
Mode Heavy Duty Rating (HD) Normal Duty Rating (ND)
C6-01 0 1
Characteristics
100 %
100 %
0 Motor Speed
Rated Load
Overload
150 %
Motor Speed
0
100 %
100 %
120 %
Rated Load
Overload
Application
Use Heavy Duty Rating for applications requiring a high
overload tolerance with constant load torque. Such
applications include extruders and conveyors.
Use Normal Duty Rating for applications in which the
torque requirements drop along with the speed. Examples
include fans or pumps where a high overload tolerance is
not required.
Over load capability (oL2) 150% of drive rated Heavy Duty current for 60 s 120% of drive rated Normal Duty current for 60 s
L3-02 Stall Prevention
during Acceleration
150% 120%
L3-06 Stall Prevention
during Run
150% 120%
Default Carrier
Frequency
8/10 kHz 2 kHz Swing PWM
Note:
By changing the Drive Duty, the drive maximum applicable motor power changes and the E2-oo and E4-oo parameters are
automatically set to appropriate values.
5.3 C: Tuning
150
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
