4.3 The Drive and Programming Modes
The drive functions are divided into two main groups accessible via the Digital LED Operator:
Drive Mode: The Drive mode allows motor operation and parameter monitoring. Parameter settings cannot be changed
when accessing functions in the Drive Mode (Table 4.3)
Programming Mode: The Programming Mode allows access to setup/adjust, verify parameters and Auto-Tuning. The
drive prohibits changes in motor operation such as start/stop when the Digital LED Operator is accessing a function in the
Programming Mode.
Table 4.3 illustrates the different functions visible as the “Up arrow” is scrolled immediately after powering up the drive.
Note: When b1-08 (Run Command Selection while in Programming Mode) is set to 1 (enabled), the drive can run even if the mode is switched
to the programming mode. When setting b1-08 to 0 (disabled), the mode cannot be switched to the programming mode while the drive
is running.

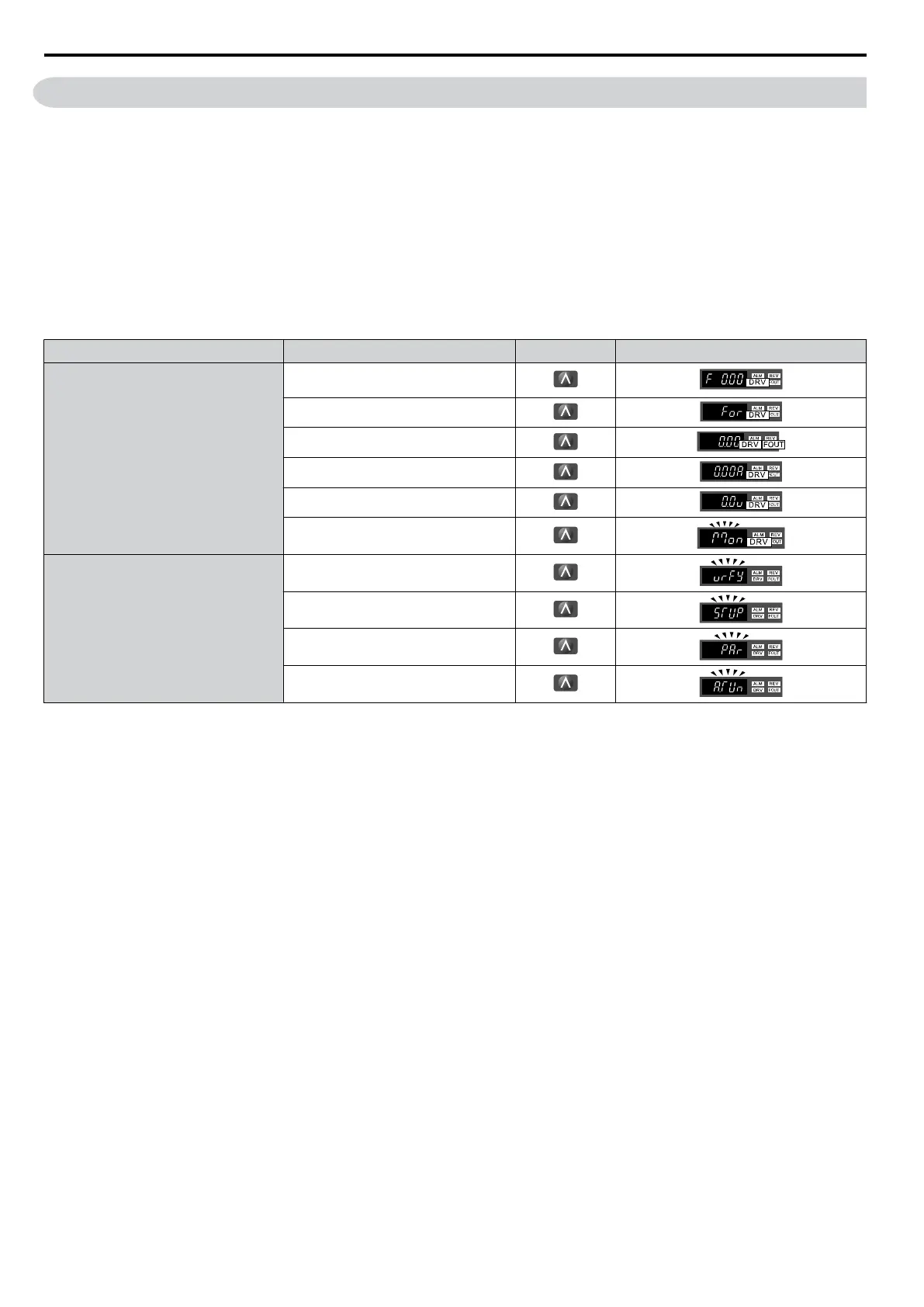

Table 4.3 Summary of Modes
Mode Group Description Key Press
LED Digital Operator Display
<1>
Drive Mode Functions
(Motor operation and monitoring)
Frequency Reference Display (Initial
power-up state)
Forward/Reverse
Output Frequency Display
Output Current Display
Output Voltage Reference
Monitor Display
Programming Mode Functions
(Changing parameters)
Verify Function
Setup Group Parameters
All Parameters
Auto-Tuning
<1> The enlarged illustration of the LED indicates that the LED is on.
