YASKAWA V1000 Technical Manual

u
IP00/Open-Chassis
n
Three-Phase AC 200 V 2A0030A to 2A0069A
Three-Phase AC 400 V 4A0018A to 4A0038A
A
B
M
L
K
J
I
H
G
F
C
D
E
A – Fan cover
B – Cooling Fan
C – Mounting hole
D – Heatsink
E –
Optional 24 VDC power supply
connector cover
F – Terminal board Refer to Control
Circuit Terminal Block Functions
on page 63
G – Bottom cover
H – Front cover screw
I – Front cover
J – Terminal cover
K – Comm port
L – LED operator Refer to Using the
Digital LED Operator on page
78
M – Case

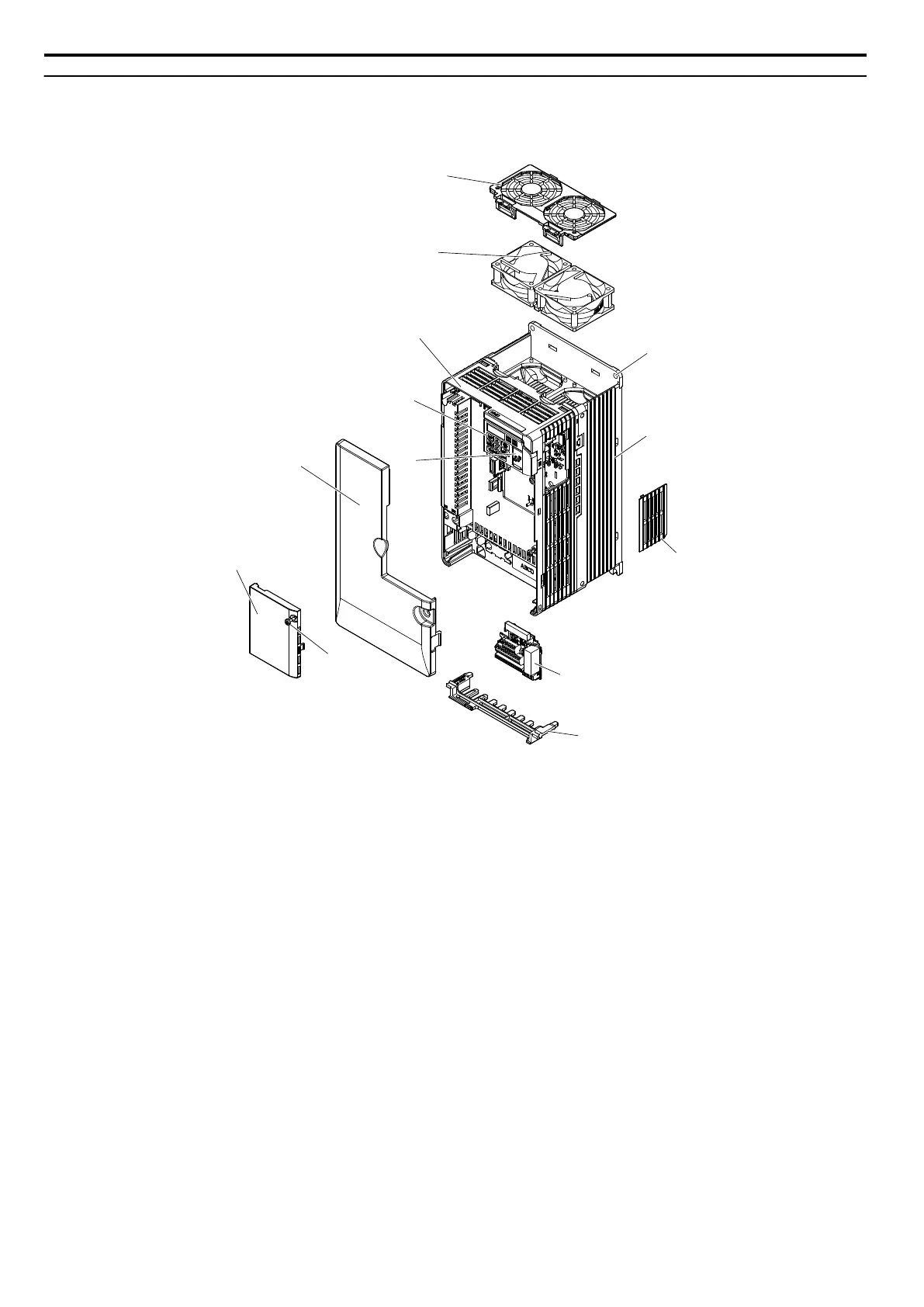

Figure 1.4 Exploded View of IP00/Open-Chassis Type Components (Model 4A0018A)
1.4 Component Names
32
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
