YASKAWA V1000 - Main Circuit Connection Diagram; Single-Phase 200 V Class Models BA0001 to BA0018; Three-Phase 200 V Class Models 2 A0001 to 2 A0069 Three-Phase 400 V Class Models 4 A0001 to 4 A0038

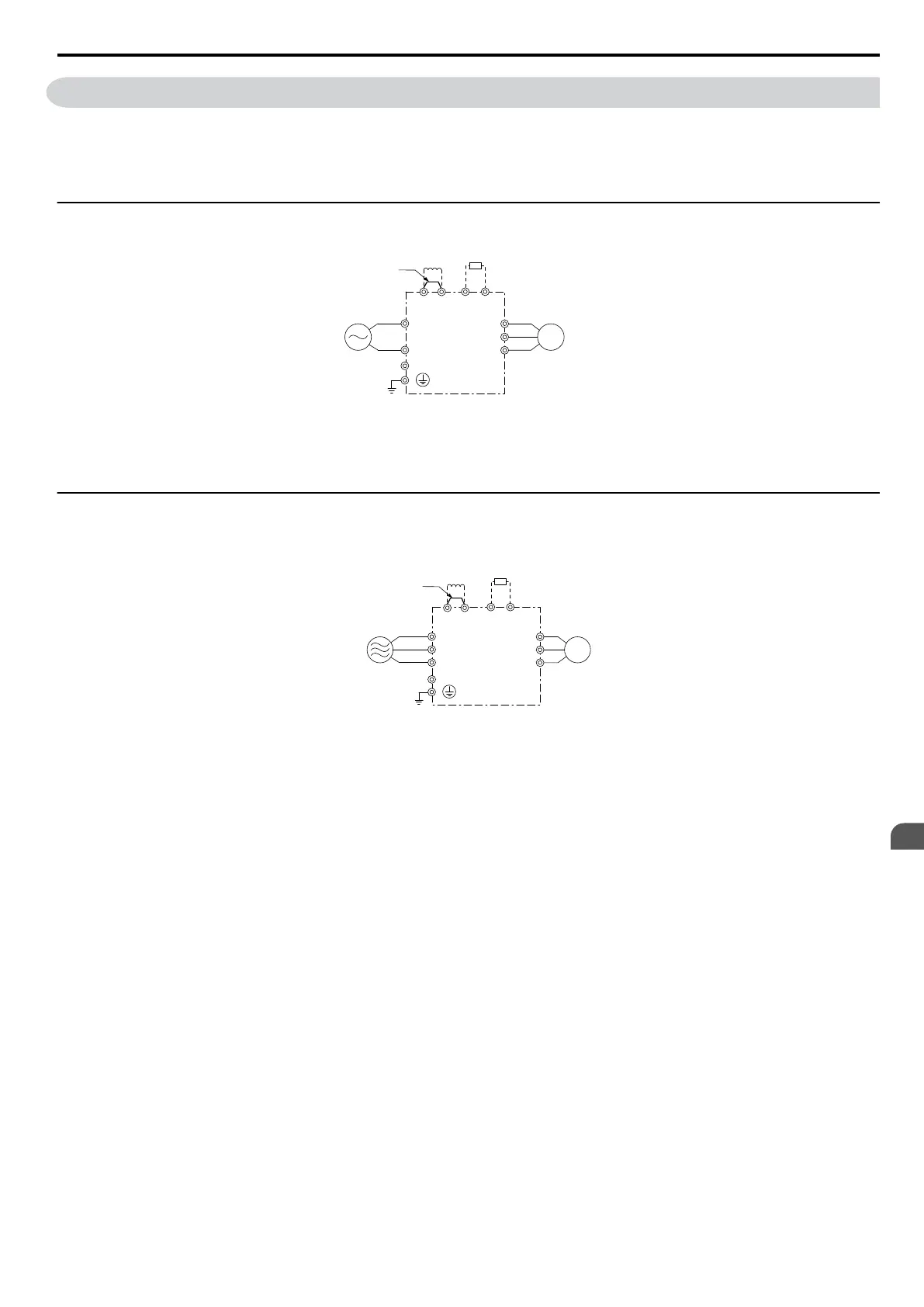

3.3 Main Circuit Connection Diagram
Refer to diagrams in this section for the Main Circuit wiring connections. Connections may vary based on drive capacity.
The main circuit DC power supply powers the control circuit.
NOTICE: Do not use the negative DC bus terminal “-” as a ground terminal. This terminal is at high voltage DC potential. Improper
wiring connections could result in damage to the drive.
u
Single-Phase 200 V Class Models BA0001 to BA0018
Drive
Jumper
Single-phase
200 Vac
Motor
DC reactor
(option)
Braking Resistor
Unit (option)
R/L1
S/L2
+1
+2
–
B1 B2
U/T1
V/T2
W/T3
Figure 3.3 Connecting Single-Phase Main Circuit Terminals
NOTICE: Do not connect T/L3 terminal when using single-phase power supply input. Incorrect wiring may damage the drive.
u
Three-Phase 200 V Class Models 2A0001 to 2A0069
Three-Phase 400 V Class Models 4A0001 to 4A0038
—
Drive
Motor
Three phase 200 Vac
(400 Vac)
Braking
Resistor Unit
(option)
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
B1 B2
Jumper
DC reactor
(option)
+1
+2
Figure 3.4 Connecting Three-Phase Main Circuit Terminals
3.3 Main Circuit Connection Diagram
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
51
3
Electrical Installation
