YASKAWA V1000 Technical Manual

1.4 Component Names
This section illustrates the drive components as they are mentioned in this manual.
u
IP20/Open-Chassis
n
Single-Phase AC 200 V BA0001B to BA0003B
Three-Phase AC 200 V 2A0001B to 2A0006B
A
B
C
D
E
F
G
H
I
J
L
K
A –
Fan cover
<1>
B – Mounting hole
C – Heatsink
D – Optional 24 VDC power supply
connector cover
E – Terminal board Refer to Control
Circuit Terminal Block Functions
on page 63
F – Terminal cover
G – Front cover screw
H – Front cover
I – Comm port
J – LED operator Refer to Using the
Digital LED Operator on page
78
K – Case
L –
Cooling fan
<1>

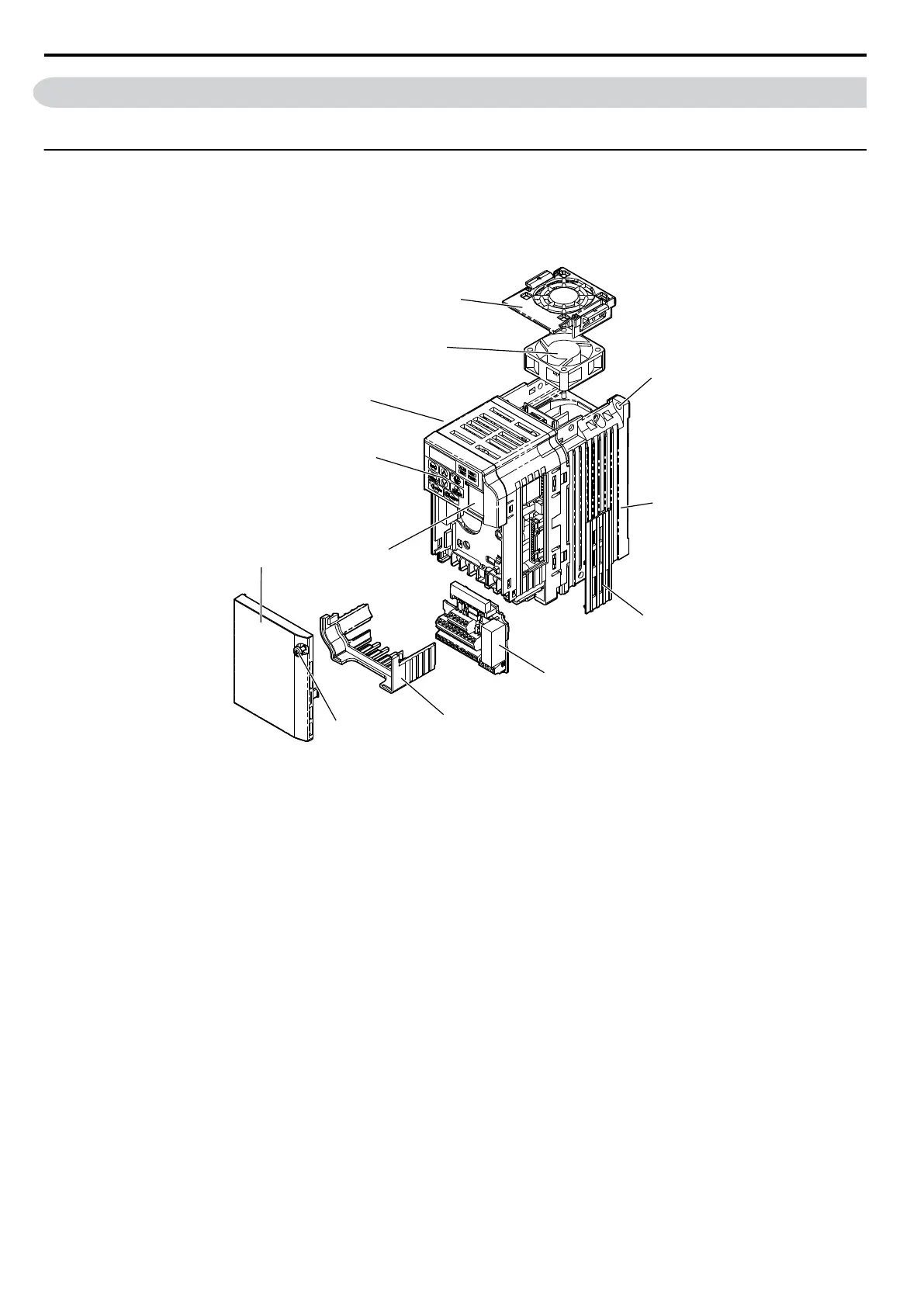

Figure 1.2 Exploded View of IP20/Open-Chassis Type Components (Model 2A0006B)
<1> Models BA0001B to BA0003B and 2A0001B to 2A0004B do not have a cooling fan or a cooling fan cover.
1.4 Component Names
30
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
