YASKAWA V1000 Technical Manual

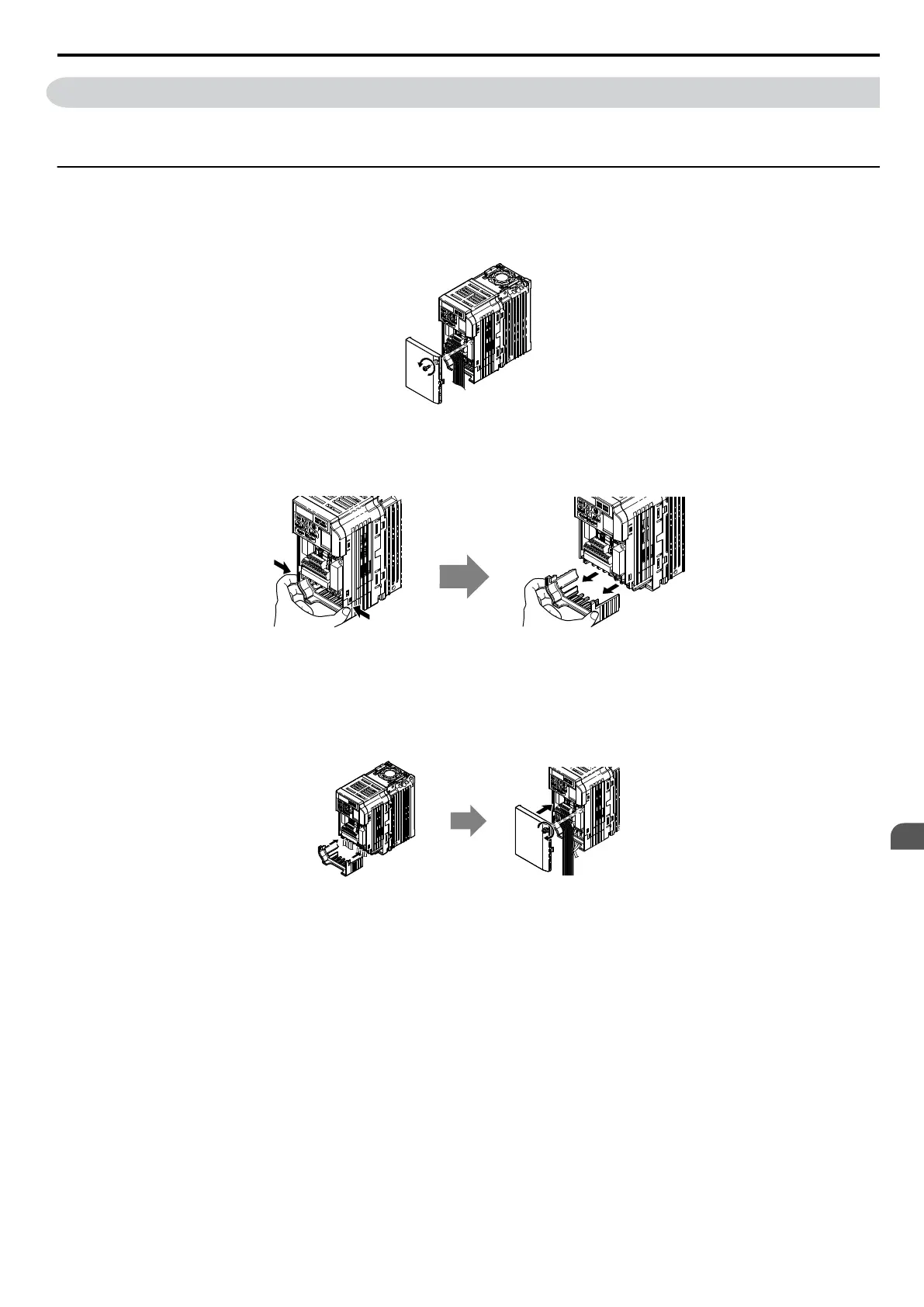

3.5 Protective Covers
Follow the procedure below to remove the protective covers before wiring the drive and to reattach the covers after wiring
is complete.
u
IP20 Front and Bottom Cover Removal and Installation
n
Removing the Protective Covers
1.
Loosen the screw that locks the front cover in place to remove.
Figure 3.6 Remove the Front Cover on an IP20 Drive
2.
Apply pressure to the tabs on each side of the terminal cover. Pull the terminal cover away from the drive while
pushing in on the tabs to pull the cover free.
Figure 3.7 Remove the Terminal Cover on an IP20 Drive
n
Reattaching the Protective Covers
Properly
connect all wiring and route power wiring
away from control signal wiring. Reattach all protective covers when
wiring is complete. Apply only a small amount of pressure to lock the cover back into place.
Figure 3.8 Reattach the Protective Covers on an IP20 Drive
3.5 Protective Covers
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
53
3
Electrical Installation

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
